Class D audio amplifier | 800 W x 2 to 8Ω | 1050 W x 2 to 4Ω. | Low impedance | Intelligent processing

  • 255f1aeea8c88221e2dc5546a089e358
1 1
  • Tecnología de procesamiento de señal optimizado Yamaha
  • Diseño ligero y duradero para máxima potencia
  • Amplificadores Clase D para aplicaciones variadas
  • Configuración y monitoreo fácil vía USB
  • Entradas XLR y TRS, salidas Speakon y jack

Low stock: 3 left

Modelo: PX8

Proveedor: YAMAHA

Código SAT: 52161500

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

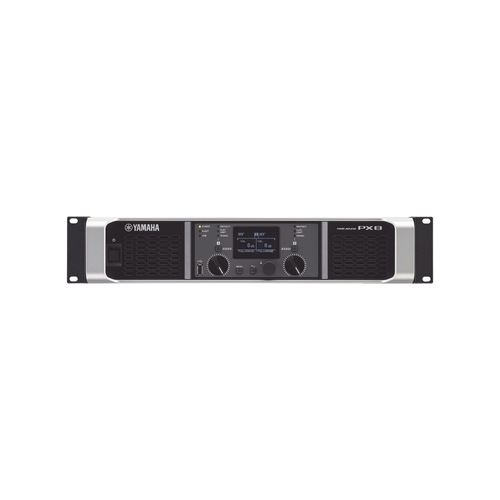

PX Series

The new PX series of Yamaha & Commma amplifiers; which uses the company's & commune signal processing technology; It is a light and durable design that provides maximum power to the speakers & Commma; at the same time that protects them with optimized processing. Class D amplifiers are adequate for a variety of applications and live sonorization environments and fixed facilities.




The configuration of the & Commma panel settings; The monitoring of the amplifier status and the transfer of data per USB are easy and fast with the amplifiers of the Yamaha PX series. There is also a panel blocking function to guarantee the safety of the adjustments & Commum; And users can export information with internal data and registration data to a USB memory to solve problems quickly if necessary.




Equipped with XLR and Jack (TRS) counts; and terminal outputs & Commma; Speakon and Jack & Commma; The PX series amplifiers offer the necessary flexibility for a wide variety of configurations and environments & Comma; and durability to resist prolonged use in tours thanks to its robust chassis and its transport handle.









General characteristics

  • Power output:
    • 8Ω: 800W x 2
    • 4Ω: 1050W x 2
    • 2Ω: 600W x 2
  • Entry impedance: 20kΩ (balanced) & Commma; 10kΩ (unbalanced)
  • Amplifier class: Class D
  • Measures: W: 480mm; H: 88mm; D 388m
  • Weight: 7.2 kg




  • I/O connectors: Standard USB 2.0 connector A (female) to save/load & commune; Prejustment of Speaker & Comma; Firmware update with USB memory; Ca X1 entrance with CA cable clamp
  • I/O connectors:
    • Speakers: Neutrik Speakon NL4 X2 & Comma; Union post X2 Pares & Commma; 1/4 "TS x2
    • LINE: XLR-3-31 X2 & COMMA; 1/4 TRS X2
  • Indicators: Power X1 (Green) & Commma; Alert X1 (Red) & Commma; USB X1 (Green) & Commma; Protect X2 (Red) & Comma; Clip/Limit X2 (Red) & Comma; X2 signal (green); Automatic LED off function
