SmartZone Security Sheet™With Dual Frequency Card Reader (125 kHz and 13.56 MHz), and Integrated Humidity Sensor

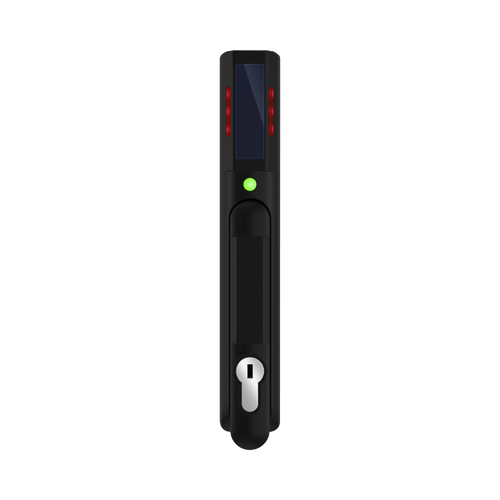

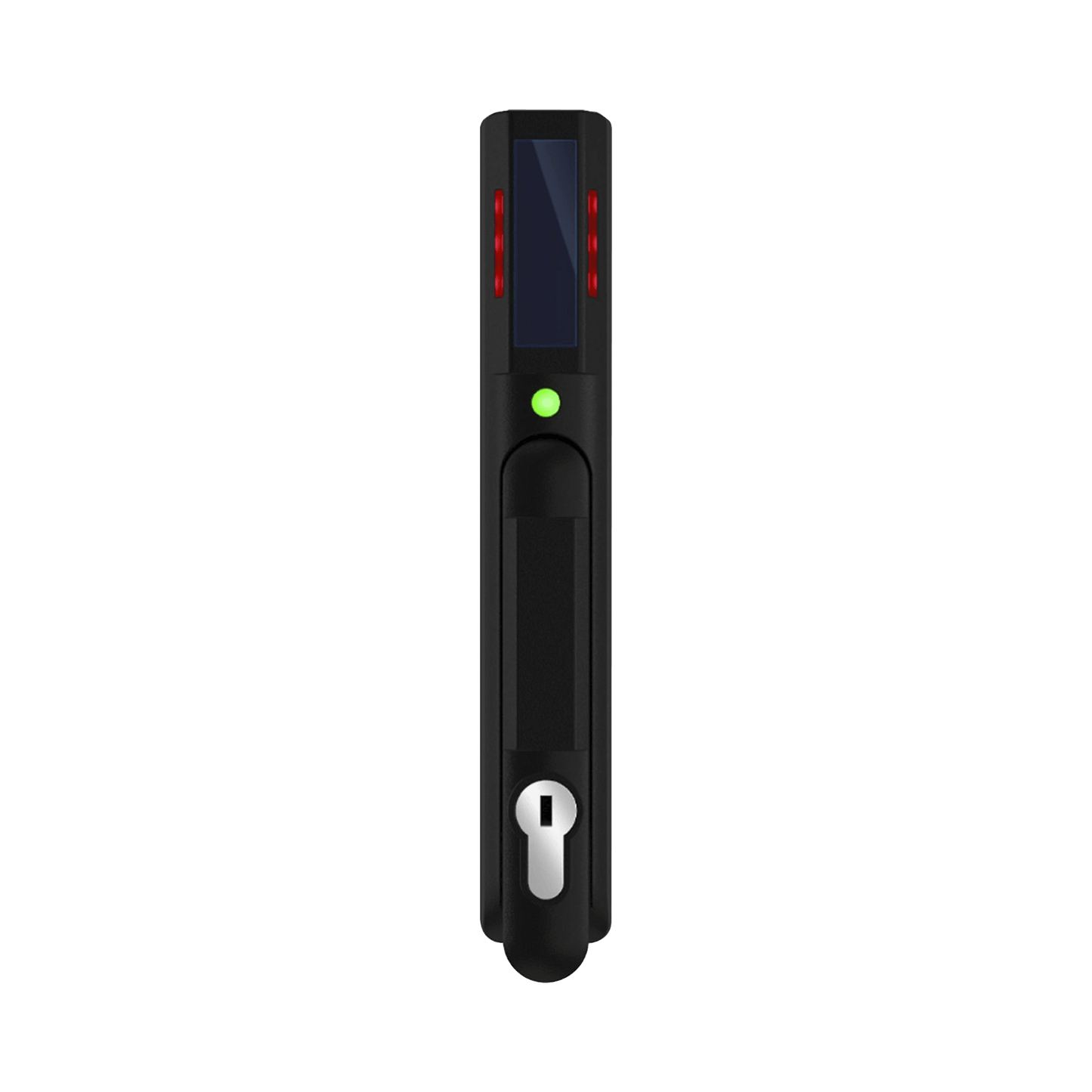

The Panduit® SmartZone™ G5 Security Lock is specifically designed to meet the most rigorous security challenges (both digital and physical) in today's data center environment. There is a version with an integrated keyboard that allows double authentication by swiping a security card and a PIN.

The security badge fits seamlessly into most data center cabinets and has the ability to read low frequency (125 kHz) and high frequency (13.5 MHz) cards. Additionally, it can support 200 authorized users and features an integrated humidity sensor that allows for optimal placement of humidity detection near the center of the cabinet. The status LED provides a visual indication and security status. The light will flash yellow when the cabinet has a minor alarm or flash red when the cabinet has a critical alarm.

Technical specifications:

• Protection class: IP55
• Compatibility with Panduit enclosures
• Connection to PDU: With ACF20 cable (JST to RJ45). Not included.
• Operating voltage: 5 Vdc ± 0.5 Vdc
• Operating current: Less than 850 mA at 5 Vdc
• Operating temperature: 0 to 65 ºC
• Humidity range: 10 to 90% RH, non-condensing
• Card proximity distance: 0 to 2 cm.

Card Compatibility:

• MIFARE Classic 1k and 4k 13.56 MHz
• MIFARE Plus 2k 13,56 MHz
• MIFARE DESFire 4k 13,56 MHz
• HID iClass 13,56 MHz
• HID 125 kHz proximity
• EM 125 kHz proximity

Connection diagram:
