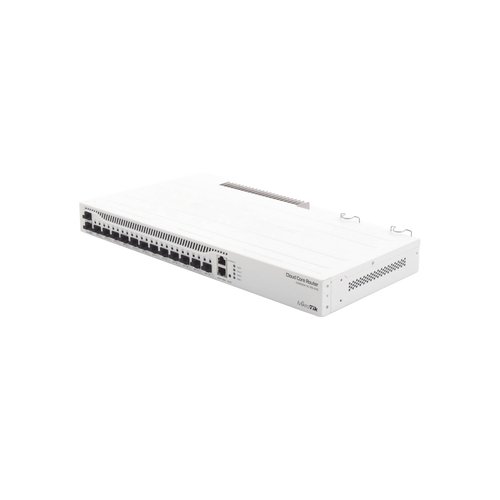

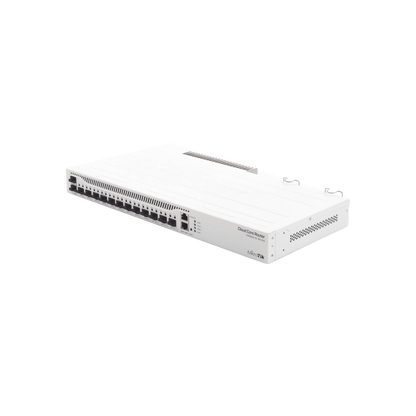

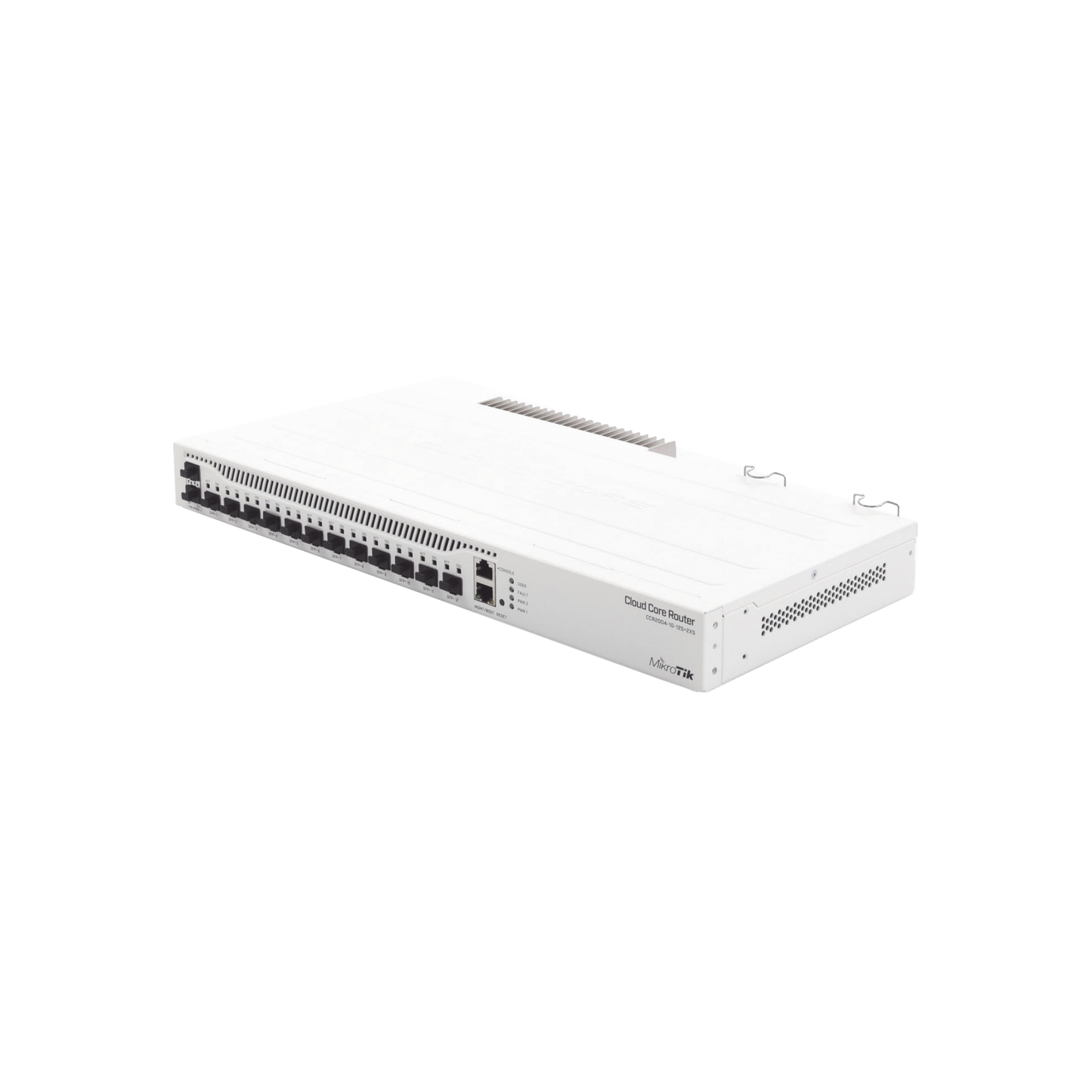

(CCR2004-1G-12S+2XS) Cloud Core Router 12 ports 10G SFP+, 2 25G SFP28, Redundant Source

  • fcf233d99b7fdf6881bcc9d14cc0340a
  • fcf233d99b7fdf6881bcc9d14cc0340a
1 2
  • CPU ARM 64bit 4 Cores 1.7 GHz, 4 GB RAM
  • 12 10G SFP+ Ports, 2 25G SFP28 Ports, 1 1G Ethernet Port
  • RouterOS operating system License 6
  • Power Redundant supply 100-240 Vac up to 49 W

85 in stock

Modelo: CCR2004-1G-12S+2XS

Proveedor: MIKROTIK

Código SAT: 43222609

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The "improvisation". Fit. Overcome." Mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does exactly that: forget about all the connectivity issues and expand your setup any way you want. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our most powerful single-core performance router yet. Provides incredible results in single tunneling (up to 3:4 Gbps) and BGP feed processing.

Get ready for anything: 10G, 40G and now 25G! Along with MikroTik multiport products such as CRS317-1G-16S + RM, CRS312-4C + 8XG-RM and CRS326-24S + 2Q + RM, Your network configuration will have no limits. Regarding performance, CCR2004-1G-12S+2XS is on par with the famous CCR1009/CCR1016 routers. And with the dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, The new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal - it'll save you tons of time in some tricky situations! RAM size in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

Specifications

Details
Product code CCR2004-1G-12S+2XS
Architecture ARM 64bit
CPU AL32400
CPU cores 4
CPU nominal frequency 1700MHz
Dimensions 443 x 224 x 44mm
License level 6
OS RouterOS
RAM size 4GB
Storage size 128MB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Feeding

Details
Number of AC inputs 2
AC input range 100-240
Maximum power consumption 49W
Maximum power consumption without accessories 32W

ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals

Details
serial port RJ45

Other

Details
CPU temperature monitor Yeah
PCB Temperature Monitor Yeah
Voltage monitor Yeah

Certifications and approvals

Details
Certification CE / RED, EAC, ROHS

Parts included
