Reel of 4 km of Outdoor Fiber Optic G.652D, Navy, Singlemode 24 Wires, Loose Tube, Black Color

  • 41410745ce30258a748d2b8c395c63e1
  • 41410745ce30258a748d2b8c395c63e1
1 2
  • Fibra óptica monomodo G.652D para exteriores
  • Resistencia al aplastamiento: 1000N/10cm
  • Cubierta metálica para protección antirroedores
  • Diámetro de cable: 11.4 ±0.5 mm
  • Rango de temperatura: -20°C a +65°C

16 in stock

Modelo: GYFS-24C/4KM

Proveedor: LINKEDPRO BY FIBERHOME

Código SAT: 26121607

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

GYFS fiber cables are designed for underground duct installations, They have metal armor for protection against rodents.

Characteristics:

  • Singlemode Fiber Optic G.652D Loose Tube for Outdoor
  • For pipe installation
  • Assembly Type: Steel Cover
  • Moisture-proof water-locking cover
  • Maximum Tension: 2200N
  • Lining Material: HDPE (High Density Polyethylene)
  • Operating Temperature: -20ºC to +65ºC
  • Weight: 117 ± 15 kg/km
  • Wire diameter (D): 11.4±0.5mm
  • Minimum curvature radius: Installation 25D, Operation 12.5D
  • Crushing resistance: 1000N/10cm
  • 24 threads

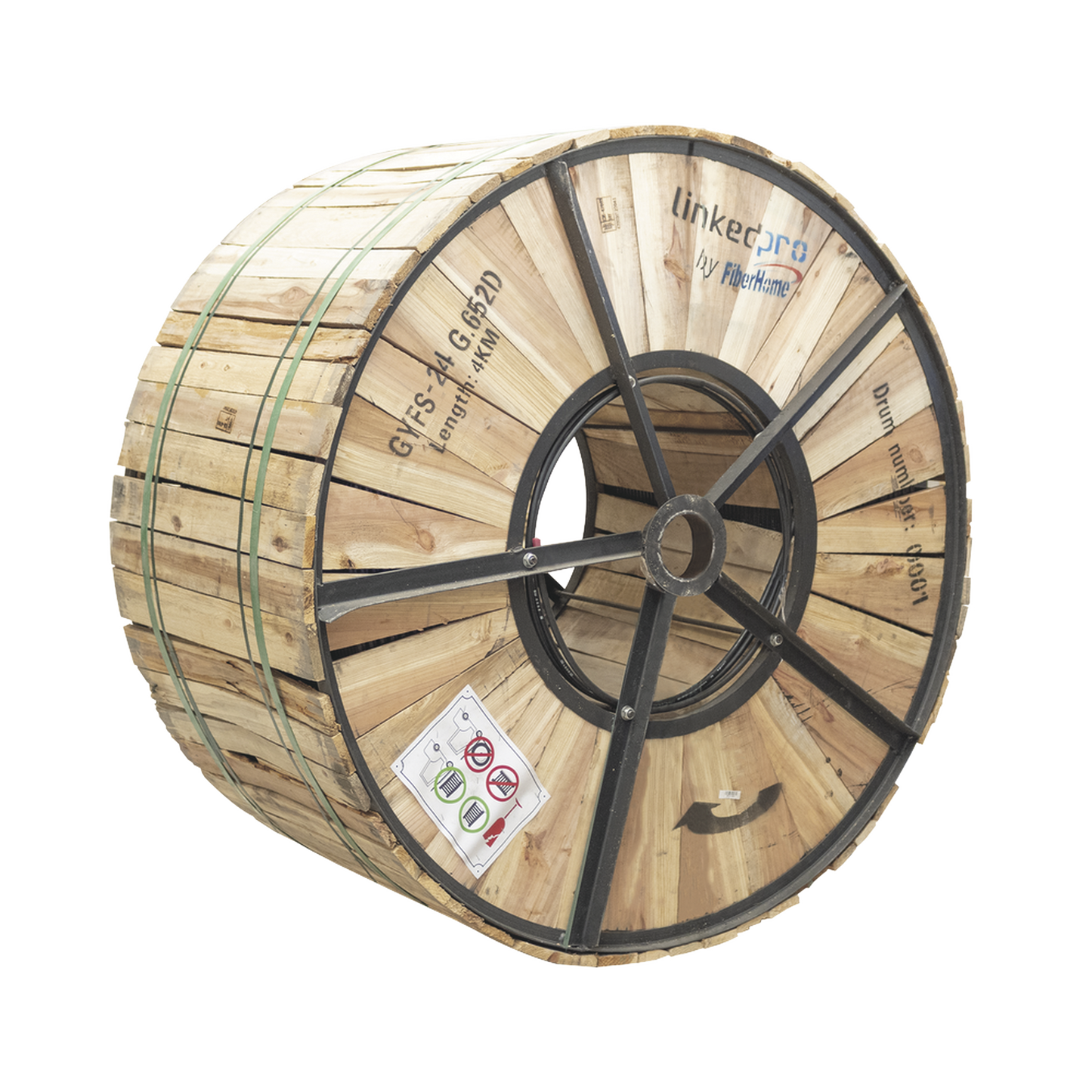

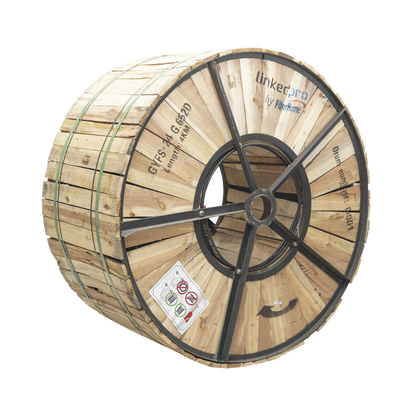

  • Price per 4 km reel
  • Dimensions (mm): 1400 x 1400 x 750
  • Gross weight of 4 km reel: 590 kg

Note: Free shipping (main cities only, does not apply to extended areas). From 10 reels or more, a forklift or ramp is required for loading/unloading and/or movement maneuvers.
