4 km Reel of Aerial Fiber Optic (ADSS) G.652D, 48-Wire Singlemode, Outdoor, Span 200, Loose Tube

  • bd0a56fcc44c158b8567aced766a7d3a
1 1
  • Cubierta exterior HDPE para protección duradera
  • Temperatura de operación: -20ºC a +65ºC
  • Anti-tracking hasta 110kV para máxima seguridad
  • Tracción máxima de 3800N con hilos de aramida
  • Distancia entre postes 200 metros para instalación aérea

80 in stock

Modelo: OC-ADSS-48C-S200/4KM

Proveedor: LINKEDPRO BY FIBERHOME

Código SAT: 26121607

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

ADSS (All Dielectric Self Supported) fiber optic cable is designed for aerial installations between poles. ADSS cables resist the necessary traction thanks to the aramid yarns, does not contain metallic elements.



Technical specifications:

  • Fiber Optic ADSS G.652D Singlemode Loose Tube
  • Outer Cover: HDPE (High Density Polyethylene)
  • Maximum tension: 3800N
  • Anti-tracking (up to 110kV)
  • Operating temperature: -20ºC to +65ºC
  • Span (Distance between Posts): 200 meters
  • Protection against UV rays and humidity
  • Nominal diameter (D): 10.9 ± 0.5mm
  • Minimum curvature radius: Installation 25D, Operation 12.5D
  • Crushing resistance: 1000N/10cm
  • Rated weight (kg/km): 91 ± 15

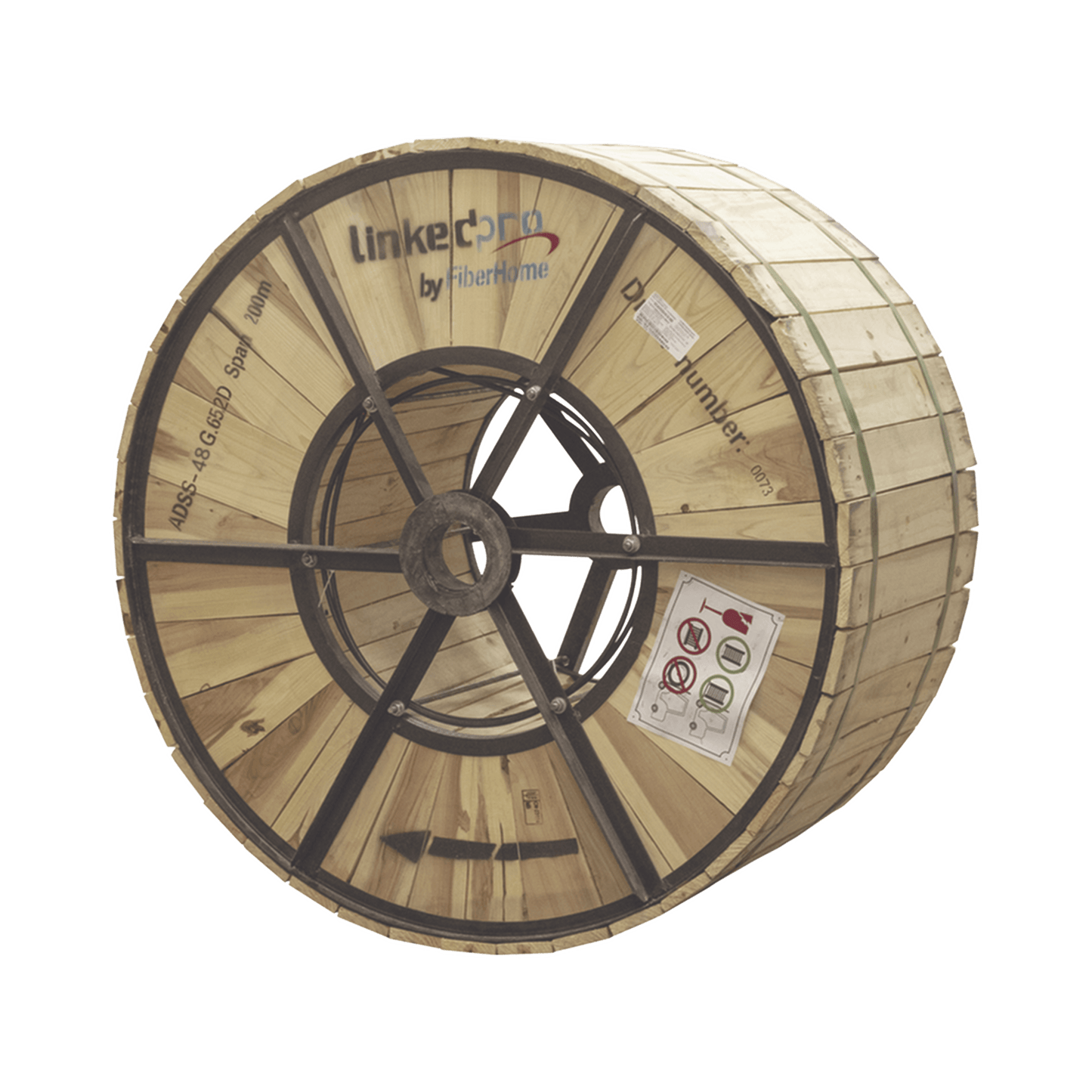

  • 4km reel gross weight: 490kg
  • 48 threads
  • Black Lining
  • 4 km reel

Note: Free shipping (main cities only, does not apply to extended areas). From 10 reels or more, a forklift or ramp is required for loading/unloading and/or movement maneuvers.

Compatible preforming:

DELT-002
