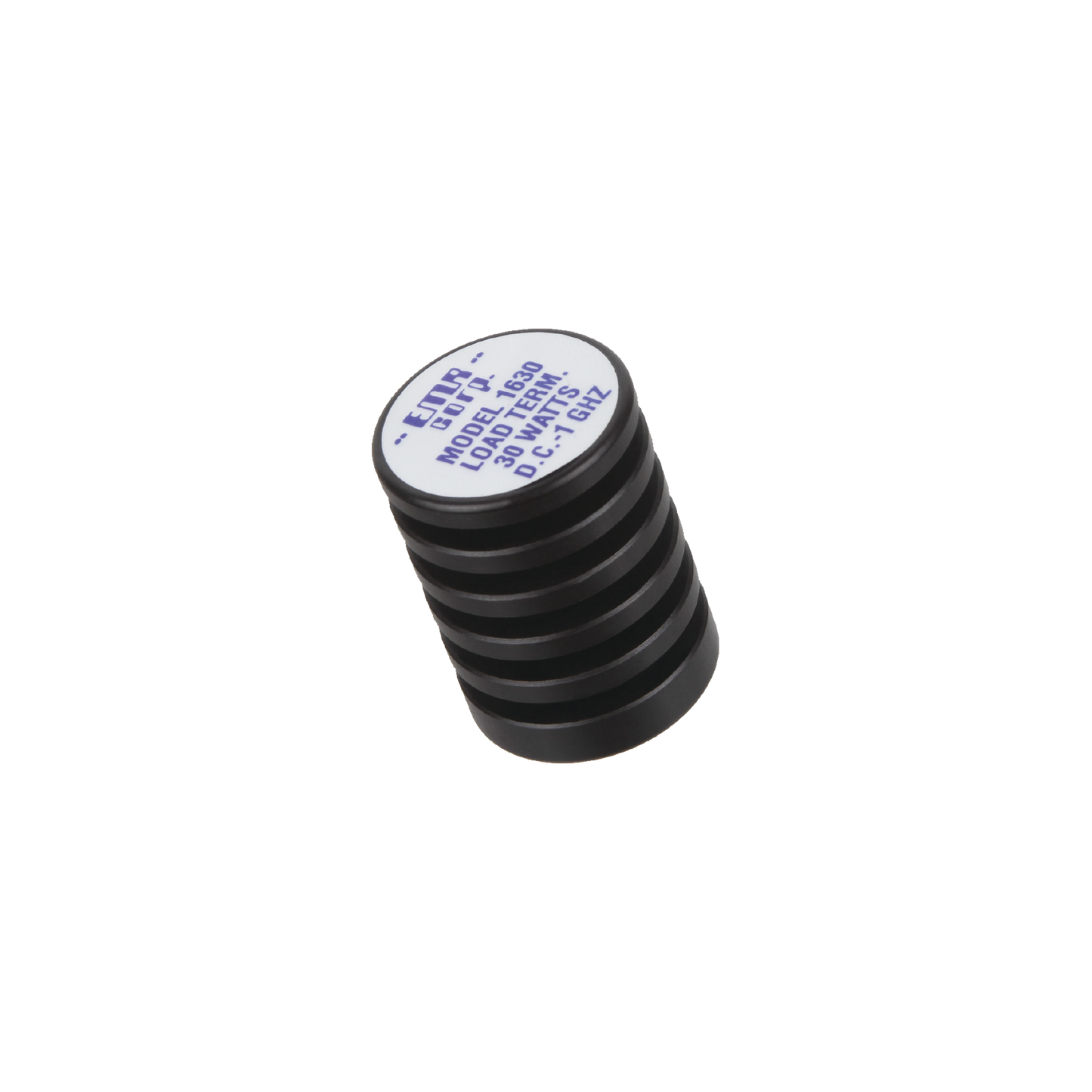

Resistive Terminal Load, 50 Ohm, 30 Watt (Max.), N Male Connector.

  • 06c577ef136a2bd9aadc1c276a03171c
  • 06c577ef136a2bd9aadc1c276a03171c
1 2

Out of stock

Modelo: 1630

Proveedor: EMR CORPORATION

Código SAT: 43221700

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


50 Ohm Terminal Load: 30 Watt in N Male connector.

  • Frequency band: 0 - 1000 MHz
  • Input Power (Max): 30 W.
  • Return Loss (Min.): 26 dB.
  • Impedance (Nom.): 50 Ohm.
  • RF Connector Type: N Male.
  • Finish: Black Anodized.
  • Temperature Sink: Aluminum.
  • Total Size (Height x Width): 38 x 25 mm.
  • Net Weight: 0 kg.
  • Shipping Weight: 0.2 kg.
  • Operating Temperature Range: -30ºC to +60ºC.
  • Operating Humidity Range: 90% Non-condensing.

*Ask for Delivery Time.
