500 Watt Portable Terminal Charging, 50 Ohm, Mineral Oil Cooled, N Female Connector.

500 Watt Portable Terminal Charging: 50 Ohm, Cooled in Mineral Oil, N Female Connector.

• RF Load is a portable 50 ohm coaxial transmission line termination, Self-contained, general-purpose device that requires no external power supply or additional equipment.
• Provides precise termination, Reliable and virtually non-reflective for testing and tuning transmitters under radiation-free conditions.
• The charge essentially consists of a cylindrical film type resistor immersed in a dielectric coolant.
• The resistance, individually selected for its precision, It is enclosed in a special conical housing that provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
• This produces smooth, virtually reflection-free line termination from DC to 2:5 GHz.

Characteristics

• Rugged portable bench load for medium power base station RF testing up to 2:5 GHz.
• Oil-assisted convection cooling for safe, continuous operation up to 500W full rated power.
• Quick Change (QC) connectors to minimize the need for adapters when making critical measurements.
• Low profile housing with handle for trouble-free operation in the most demanding environments.

Specifications

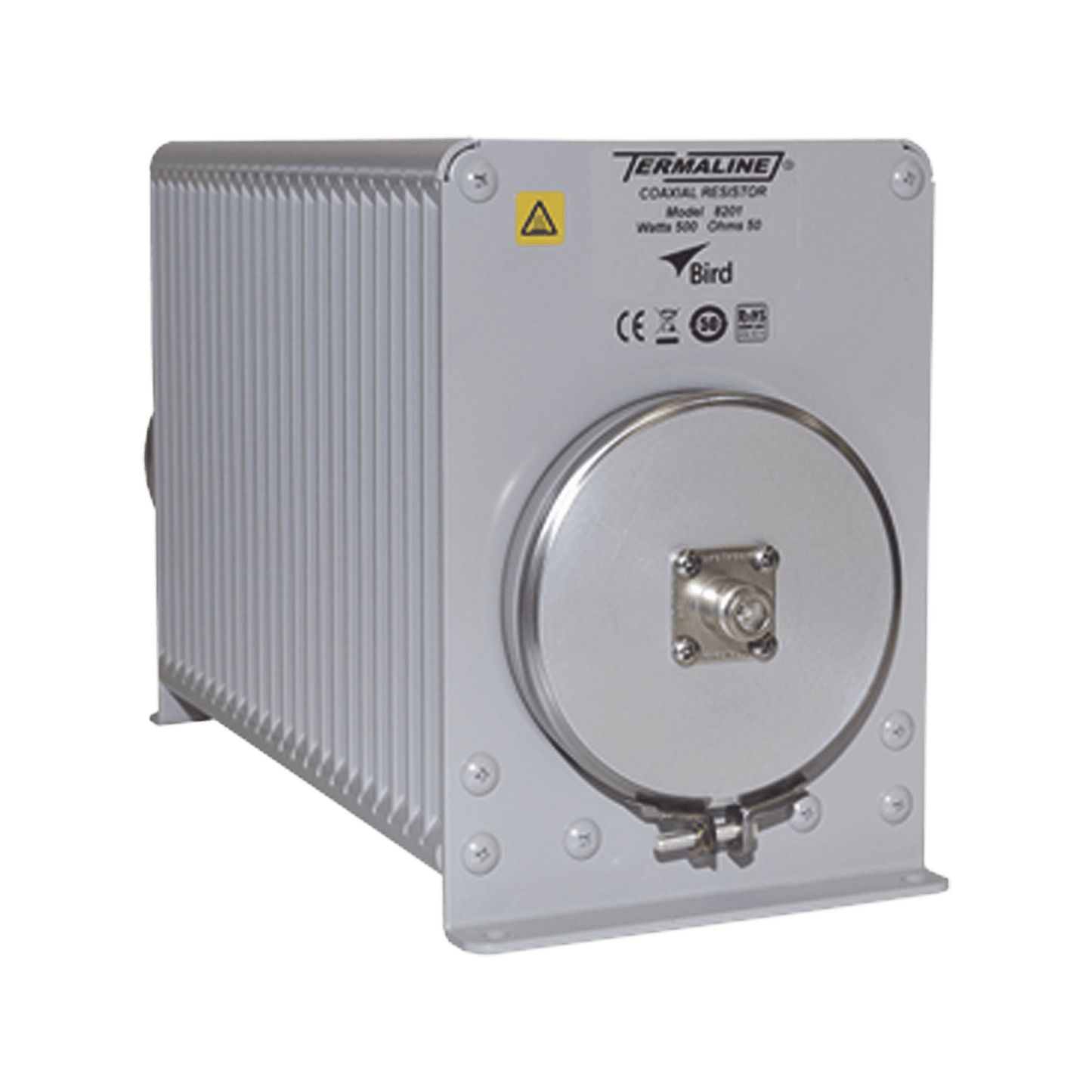

• Model: 8201 (500 watts, oil-cooled RF terminations).
• Nominal power: 500 Watt continuous.
• Frequency Range and VSWR: DC to 1 GHz @ 1,1 max, 1 GHz to 2:5 GHz @ 1:25 max
• Temperature range: -40 to +45°C
• Coolant: 0.9 gal. (3:42 liters) Refined Mineral Oil.
• Product type: Oil cooled.
• Operating position: horizontal only.
• Connectors: N (Hem.)
• Finish: Gray powder coat.
• Dimensions: 16-13/16" x 8-1/2" x 5-15/16" (LxWxH); 427 x 216 x 151 mm.
• Weight: 21 lbs. (9:5 kg).
