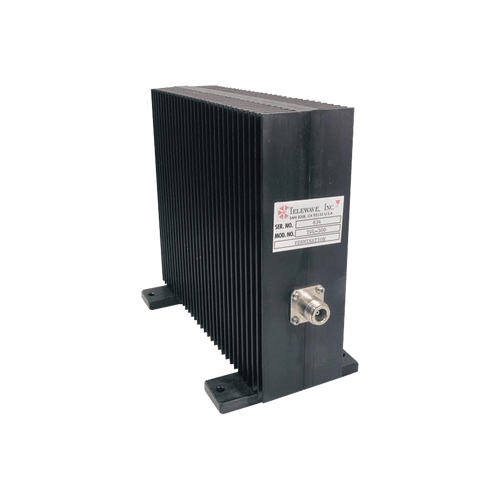

RF Dry Coaxial Terminal Load for 50 Ohm, CD-1000 MHz, 300 Watt, 50% 2-min, N Female.

50 Ohm Dry Coaxial Terminal Load 0-1000 MHZ, 300W, N Female.

• Frequency range: DC-1000 MHz.
• Power input (max): 300 Watt.
• Impedance: 50 Ohm.
• VSWR (max.): 1.25:1 (N Connector).
• Return loss (typical): 18 dB.
• Nominal temperature: 50% of nominal power at 95°C.
• 50% overload: 2 minutes.
• Connector: Quick change, N Female (standard).
• Dimensions (Height x Width x Depth): 20.6 x 6.4 x 24.1 cm.
• Footprint on Table: 24.1 x 11.7 cm.
• Weight: 5.9kg.
• Finish: High Temperature Black.
