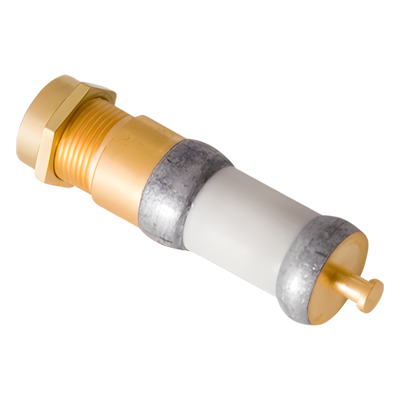

Variable Capacitor Air Trimmer, 1-30 pFd. for Band Rejection Adjustment in VHF Duplexers (L=17.27 mm).

  • 9fc5ace3c20405f8f7a08f2022fe5dae
  • 9fc5ace3c20405f8f7a08f2022fe5dae
1 2
  • Capacitancia ajustable de 1 a 30 pF
  • Voltaje de trabajo hasta 250 voltios
  • Compatible con montaje SMD
  • Temperatura operativa de -65°C a +125°C
  • Factor Q de 800 @ 100 MHz

Low stock: 10 left

Modelo: 5602

Proveedor: SYSCOM

Código SAT: 32121509

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Variable Air Capacitor from 1 to 30 pFd, 250 Volt.

  • Manufacturer: Johanson Manufacturing Corporation.
  • Adjustment Range (Capacitance): 1 to 30 pFd.
  • Capacitor Type: Air (Cylindrical Layers).
  • Fit: Top.
  • Working Voltage: 250 Volt.
  • Twist:1 to 5 oz. in.
  • Mounting Type: SMD.
  • Q @ Frequency: 800 @ 100 MHz.
  • Operating Temperature: -65°C to +125°C.
  • Size (Dia. x Length): 7.11 x 17.7 mm.
  • RoHs: Compliant.

*Ask for Availability.
