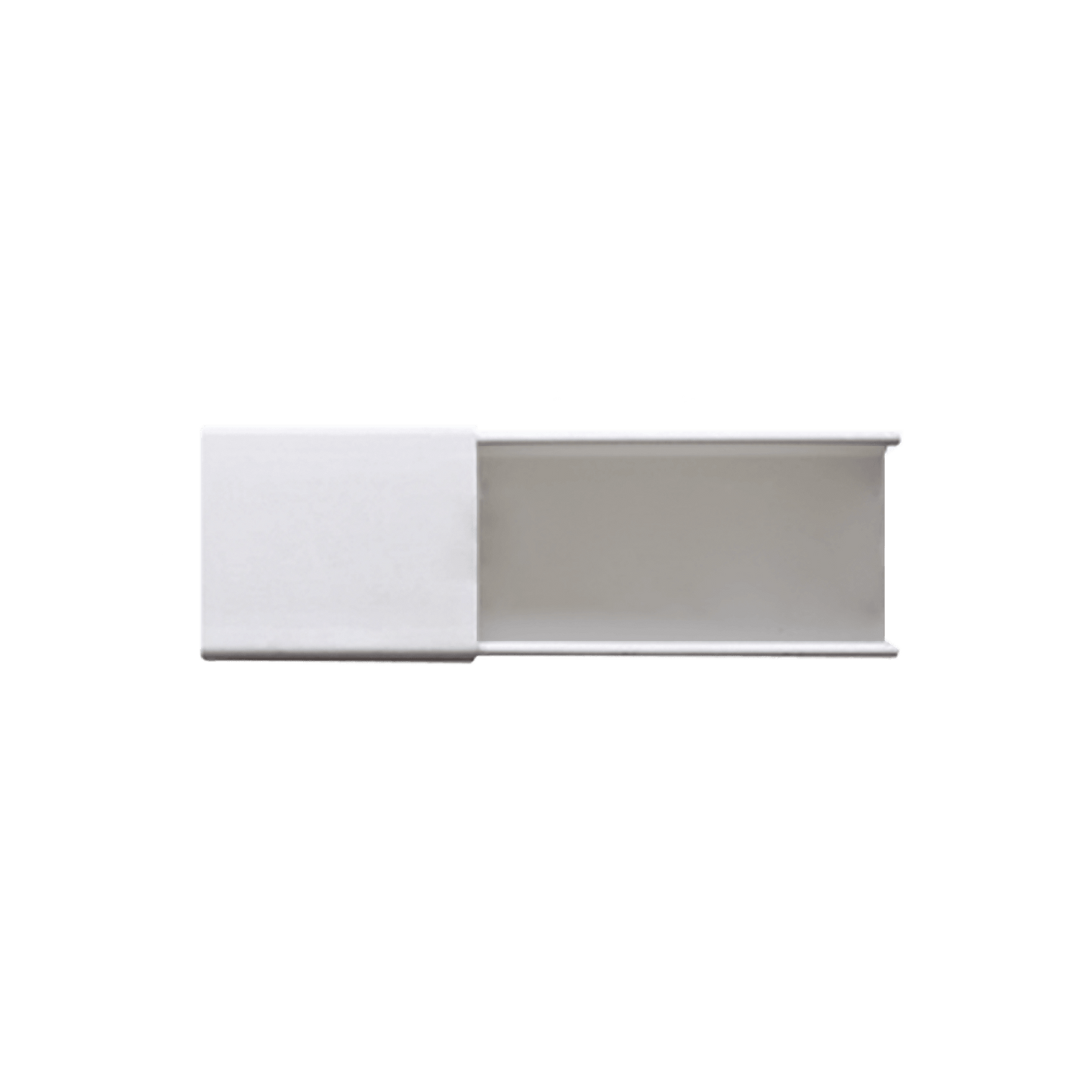

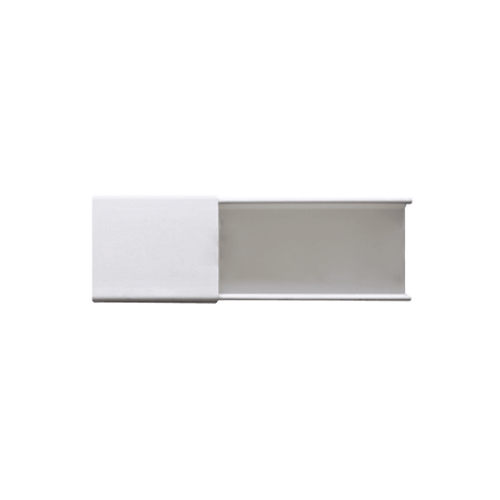

White gutter without division, self-extinguishing PVC, 48 x 16 x 2.5m section (6101-01260

  • aeb9db67887e319507fa378a4b44842f
1 1
  • Área interna 534mm por vía para cableado eficiente
  • Temperatura de trabajo de -20°C a +85°C
  • Resistencia a humedad y ambiente corrosivo
  • PVC rígido alto impacto según ASTM D-638-98
  • Material auto-extinguible ASTM D-635-98

500 in stock

Modelo: PT-48-SD

Proveedor: THORSMAN

Código SAT: 39131714

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

General characteristics :
• For use in electrical and structured cabling installations.
• It has two ways of pressure system.
• White color.
• Channel weight, base and lid: 0.748 kg.
• It has a total internal area of ​​534mm per track.
• Working temperature -20ºC to +85ºC.
• Resistance to humidity and corrosive atmosphere.
• High dielectric strength.
• Complies with the requirements of the NOM-001-SEDE-2005 standard.
• Certified in .

Materials
• ASTM D-638-98 tensile-resistant high-impact rigid PVC.
• ASTM D-635-98 self-extinguishing material.
• UV resistant ASTM D-635-98.
• ASTM tests at 250 hrs. It should not change shade ASTM G-154 (500 hr).




Dimensions (Dimensions in mm):

Installation Example:



Installation video:

Thorsman is the Leading Brand in Mexico Recognized for Channeling and Fastening Products

It has a wide range of solutions for electrical and structured cabling installations, voice and data; they provide functionality, distribution, protection and aesthetics, You can also find it as: capacity table for eletrocalhas, load capacity of apparent gutters.

Systems that cover all needs

Hospital

Home

Industry

Office

40% of capacity is the maximum recommended by EIA/TIA-569-A for designing structured cabling systems.

Find Thorsman fixing systems, like cable staples, strapping, nylon and stainless steel straps, which are essential for safety in any installation.

Thorsman's thelecom systems, such as mini power and voice/data floor boxes, as well as floor boxes with 2 and 4 configurable modules, They provide the complete connectivity solution for entertainment centers such as casinos, fairs, museums, shopping plazas, among others.
