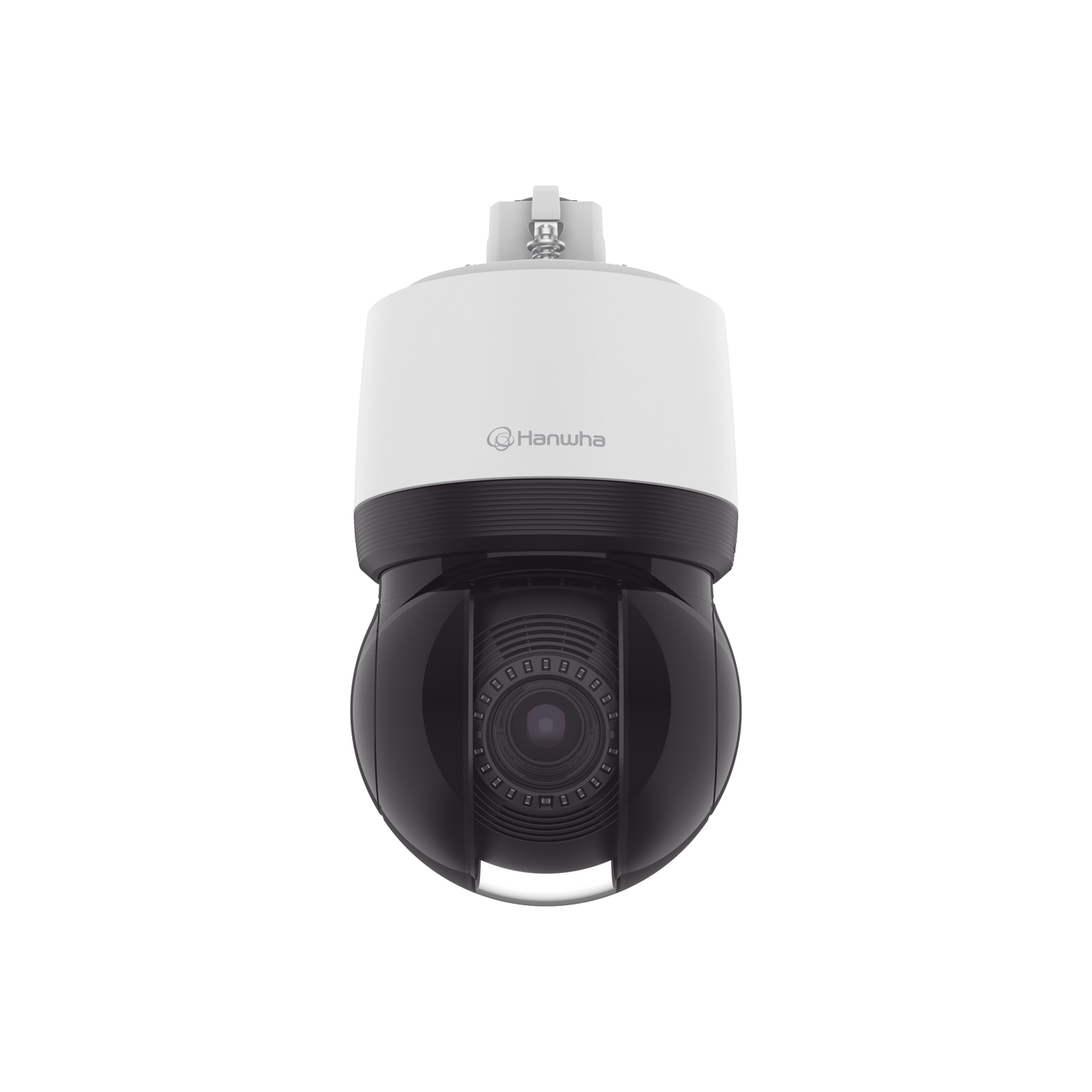

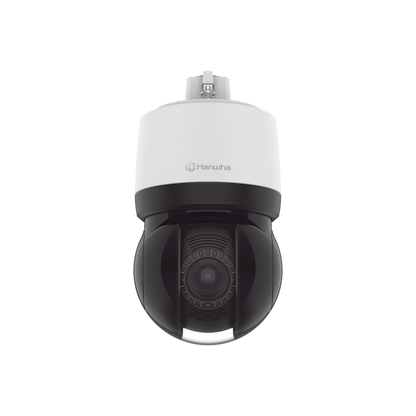

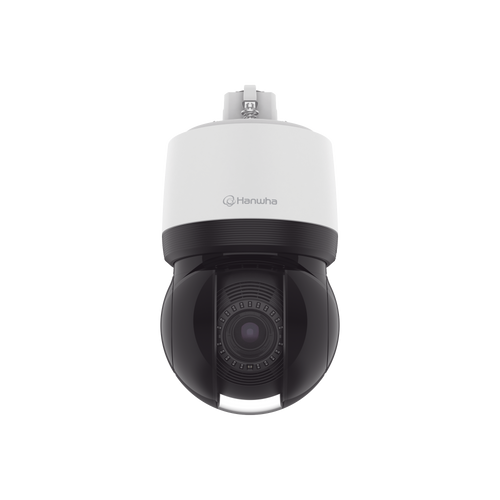

2MP IP PTZ Camera with Artificial Intelligence/Anti-Vandal/40x Optical Zoom/IR 200m/Outdoor IP66 / IK10 / NEMA4X / Auto tracking / H.265 & WiseStream / NTCIP

  • 388da359d5cd9939a0b6f1f9db96601a
  • 388da359d5cd9939a0b6f1f9db96601a
1 2

Low stock: 10 left

Modelo: XNP-C6403R

Proveedor: Hanwha Techwin Wisenet

Código SAT: 46171610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

H.265 + WiseStream II

Through WiseStream II, Hanwha Techwin video compression technology, when combined with H.265 compression. System costs are greatly reduced without compromising image quality.

WDR 150 dB

A wide dynamic range image is formed by combining 2 captures with different exposures. Blurred areas are a critical weak point associated with the wide dynamic range, but this new technology eliminates all types of movements, providing colorful and clear images.

* Wisenet X series 5MP and 6MP cameras have 120dB WDR.

Color Lighting

With the powerful new Wisenet X series chipset and amazing lens technology from Hanwha Techwin, Images can be monitored in low light environments, even in color without using IR LEDs. Eye-catching images can now be captured regardless of the area and time of day.

Technical characteristics

Video:
  • Compresión: H.265 & WiseStream II / H.264 / MJPEG.
  • Resolution: 2MP (1920 x 1080)
  • Sensor: 1/2.8" CMOS
  • Minimum Illumination: Color: 0.05 Lux, BW: 0 Lux (IR on)
  • Motorized Lens from 4.25 to 170 mm
  • IR lighting 200m.
  • DC auto iris
  • Min. Object distance: 5m.

Storage:

  • 2 microSD card slots up to 512GB (1TB max.).
  • Memoria: 4GB RAM, 512MB Flash.

Features:

  • Light compensation: WDR 150dB , BLC, HLC.
  • Simple approach.
  • Endless 360º panning.
  • Digital noise reduction.
Interfaces:
  • 1 Puerto Ethernet RJ45 10/100 Base-T.
  • Audio supported using NW I/O Box SPM-4210W (not included)
  • Supports alarm inputs and outputs using NW I/O Box SPM-4210W (not included)

Physical and Electrical Characteristics:

  • Operating Temperature: -40 to 50°C.
  • Certification: IP66 / IP67 / IK10, NEMA4X, NEMA-TS 2
  • Power: HPoE IEEE802.03bt Class6, Type3 (POE injector included).
  • Consumption: 40W
  • Dimensions: Ø 158 x 293.3 mm
  • Pesos: 3.2Kg.

Protocols:

  • IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,

    SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP,

    NTCIP, MQTT

Event analysis based on the AI engine:

  • Object detection.
  • Direction detection.
  • Virtual line crossing
  • Virtual Area (Entry / Exit, Loitering, intrusion).

Object classification:

  • Person/Face
  • Vehicle
  • Vehicle registration with attributes

Event analysis:

  • Appearance/Disappearance
  • Blur Detection
  • Audio Detection (adding equipment SPM-4210W not included).
  • Motion detection
  • Sabotage
  • Sound classification

Other features

H.265 & WiseStream II:
Audio Analytics:
Image Stabilization:

WDR 120dB Demo:
Face Detection:
Handover function:

3 years warranty.

Note: Recommendations and parts for proper installation of a PTZ camera outdoors
