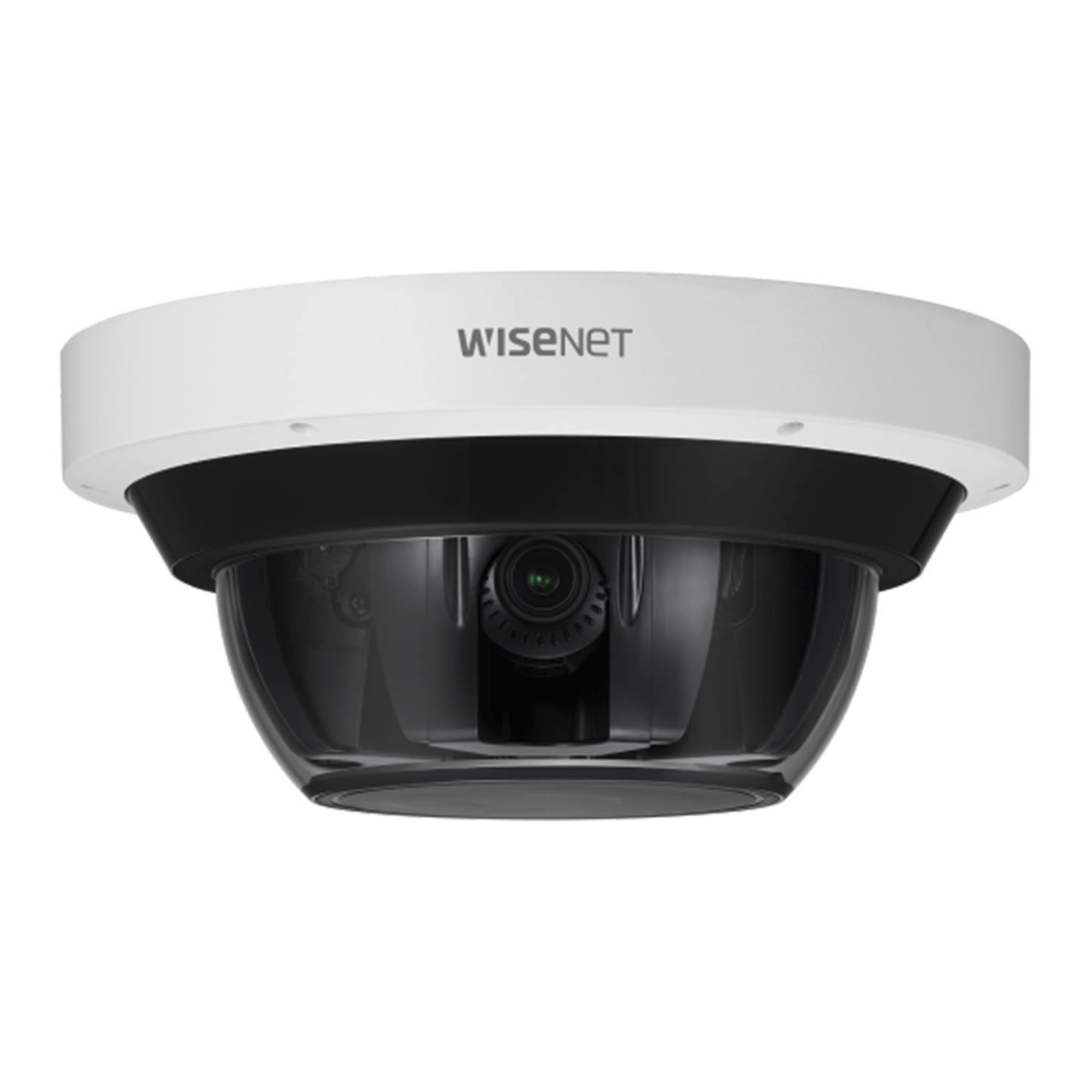

20MP Multisensor IP Camera (4 5MP Sensors), WDR 120 DB Motorized Lens 4.13 - 9.4 MM 12Vdc/ HPOE /IP66 /IK10

  • d00ee301f637af6c8d5cb4fc987ecb4e
  • d00ee301f637af6c8d5cb4fc987ecb4e
1 2

Out of stock

Modelo: PNM-9085RQZ1

Proveedor: Hanwha Techwin Wisenet

Código SAT: 46171610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Cover large areas with a single camera

Wisenet P series cameras are equipped with multiple sensors, which means effective coverage of large areas with a single camera.

  • These devices can simultaneously monitor multiple directions without blind spots. When combined with a PTZ camera it provides great detail of the desired image through its effective zoom-in function.
  • Panoramic cameras provide a wide image with a single device by unifying 4 images from the available sensors.

When installing Wisenet multi-sensor cameras, The cost of system installation and maintenance is reduced as we monitor large areas with fewer devices.

Multidirectional Camera with PTRZ

Advanced PTRZ Function

PTRZ motorized remote control The PNM-9085RQZ model has become a lighter and more compact device than its predecessors, It has the remote pan adjustment function, tildeo, rotation and zoom to speed up the installation and start-up of the device.

H.265 + WiseStream II

Through WiseStream II, Hanwha Techwin video compression technology, Wisenet X series reduces data storage by up to 99% compared to current H.264 technology, when combined with H.265 compression. System costs are greatly reduced without compromising image quality.

WDR 150dB

A wide dynamic range image is formed by combining 2 captures with different exposures. The Wisenet X series with a wide dynamic range of 150 dB uses 4 captures to create more natural images. Blurred areas are a critical weak point associated with the wide dynamic range, but this new technology eliminates all types of movements, providing colorful and clear images.

*5MP Wisenet X series cameras are 120dB.

Color Lighting

With the powerful new Wisenet X series chipset and amazing lens technology from Hanwha Techwin, Images can be monitored in low light environments, even in color without using IR LEDs. Eye-catching images can now be captured regardless of the area and time of day.

Technical characteristics

Video compression and maximum resolution:

  • Compression: H.265 / H.264 / MJPEG / Wisestream II
  • 4 Lenses 5MP (2560 x 1920) resolution (Max. 20MP)
  • 4 motorized varifocal lenses from 4.13 to 9.4 mm (2.3x)
  • 4 x Max. 30 ips at 5 MP
  • Digital image stabilization with integrated gyro sensor
  • Day/Night (ICR) and WDR (120 dB)
  • Infrared illumination 30m.
  • RAM memory: 5 GB
  • ONVIF: Profile S, SUNAPI.

Interfaces:

  • Network: 1 RJ45 10 / 100 / 1000 Mbps port.
  • Audio input and output.
  • SD / SDHC / SDXC memory card slot Supports up to 4 SD cards of 256 GB each.

Physical and electrical characteristics:

  • Operating temperature: -40 to 55°C
  • Power: HPoE or 12VDC Max. 45W
  • Protection: IP66, IK10, NEMA4X
  • Dimensions: Ø 315 x 145.9mm.
  • Weight: 5.2kg.

Advanced Analytics Video:

  • Handling.
  • Marauding.
  • Direction detection.
  • Line crossing.
  • Entrance exit.
  • Appearance / Disappearance.
  • Face Detection.
  • Motion detection.
  • Sound Classification.
  • Audio Detection.

For more information on technical characteristics, Enter here .

Other features

H.265 & WiseStream II:
Audio Analytics:
Digital Self-Tracking:

WDR 150dB Demo:
Face Detection:
Handover function:
