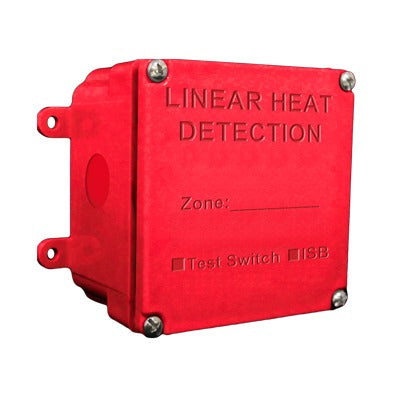

Splice Box for Cable Heat Detector

  • a4dc45bcb9c223161bd5693db8098746
  • a4dc45bcb9c223161bd5693db8098746
1 2
  • Polímeros avanzados para detección excepcional
  • Alarma iniciada a temperaturas fijas específicas
  • Dimensiones compactas: 10cm x 10cm x 5cm
  • Peso ligero: 0.46 kg
  • Conductores trenzados de resistencia extremadamente baja

Out of stock

Modelo: RG-5222

Proveedor: SAFE FIRE DETECTION INC.

Código SAT: 46171600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
  • Easy to use
  • Fire Resistant
  • Requires screw terminal RS7041
  • Requires strain relief connector RG1110
  • Dimensiones (W x H x D): 4” x 4” x 2” (10cm x 10cm x 5cm)
  • Weight: 1.00 lbs (.46 kg)
  • Current limiting: Resistive
  • Temperatura nominal: -4° to +140°F(-20°C to 60°C)
  • Mounting location: Non-Hazardous or Class 1 Div.2

Description


SafeCable Linear Heat Detection (LHD) uses advanced polymers and a newly developed alloy to provide exceptional detection, durability and design flexibility. At the core of SafeCable is a twisted pair of extremely low resistance tri-metallic conductors, which are jacketed with new, advanced thermal polymers. These polymers are chemically engineered to decompose at specific fixed temperatures, allowing the stranded conductors to make contact and initiate an alarm.
