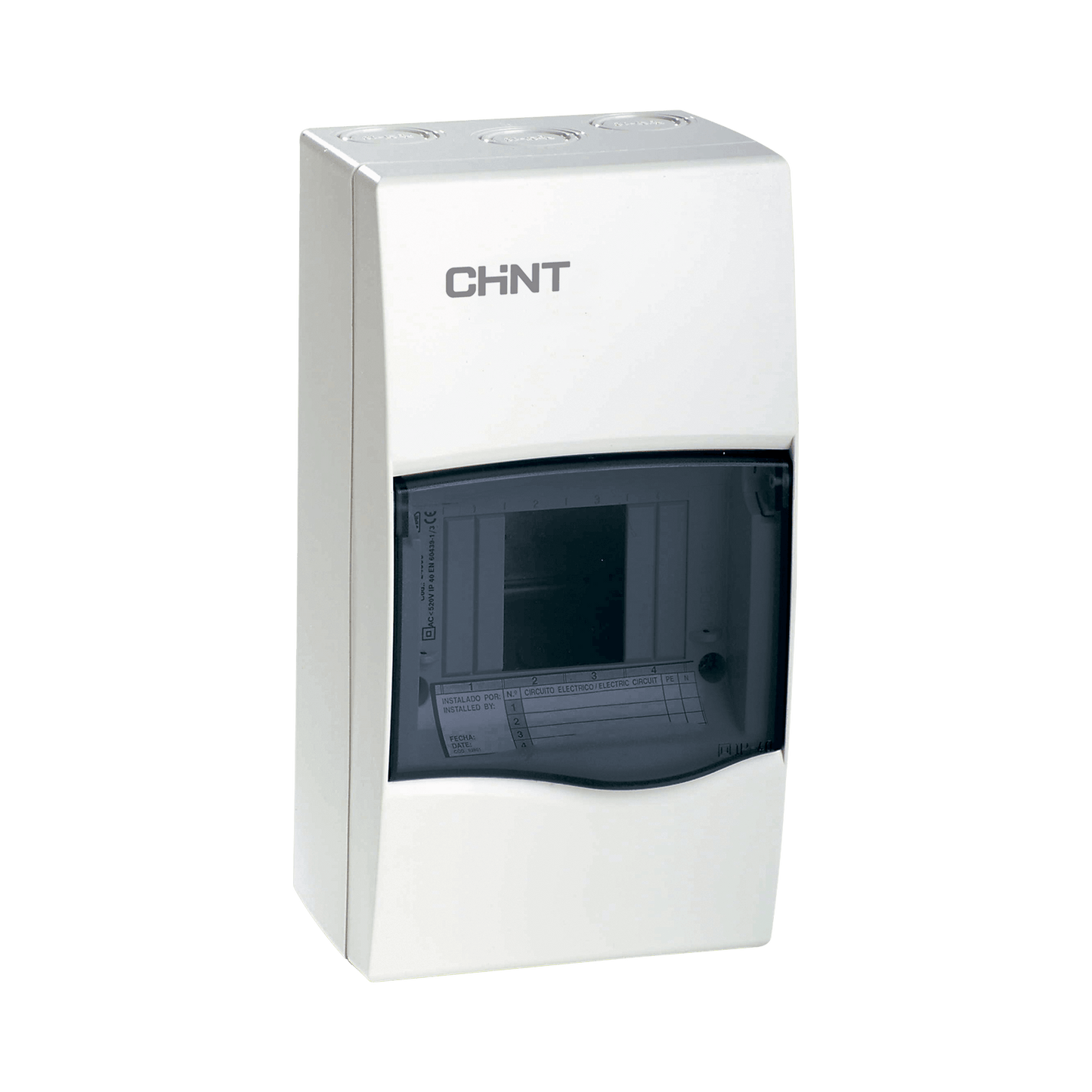

Surface-mounted distribution box, IP40, 4 modules (SKU:8101010)

  • ddda8f986896bf03e0f8de614463d1d8
1 1
  • Assembly: Overlay
  • IP40 protection
  • IK08 impact resistance
  • Ambient temperature range -25°C to +40°C
  • Box for 4 modules

Low stock: 5 left

Modelo: CD40S04

Proveedor: CHINT

Código SAT: 39131711

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The IP40 distribution boxes are specially designed to be installed in establishments in the residential and commercial sector. They have been designed to offer the greatest versatility and ease of assembly and installation. They are plastic cabinets designed to house switches or modular devices for din rail.

Features:

  • It can be installed on both prefabricated walls (plasterboard, wood, conglomerates, etc.) and conventional brick walls.
  • They have a cable entry on each side, on the top and bottom and on the back of the box
  • Pre-cut inlets facilitate connection to conductive pipes (M16, M20, M25 and M50)
  • Halogen-free plastic materials
  • UNE-EN-62208 and UNE-60439-1 standards

Technical data:

  • Box for 4 modules
  • Assembly: Overlay
  • IP40 protection
  • IK08 impact resistance
  • Resistance to glow wire
  • Ambient temperature range -25°C to +40°C
  • Double insulation Class II
