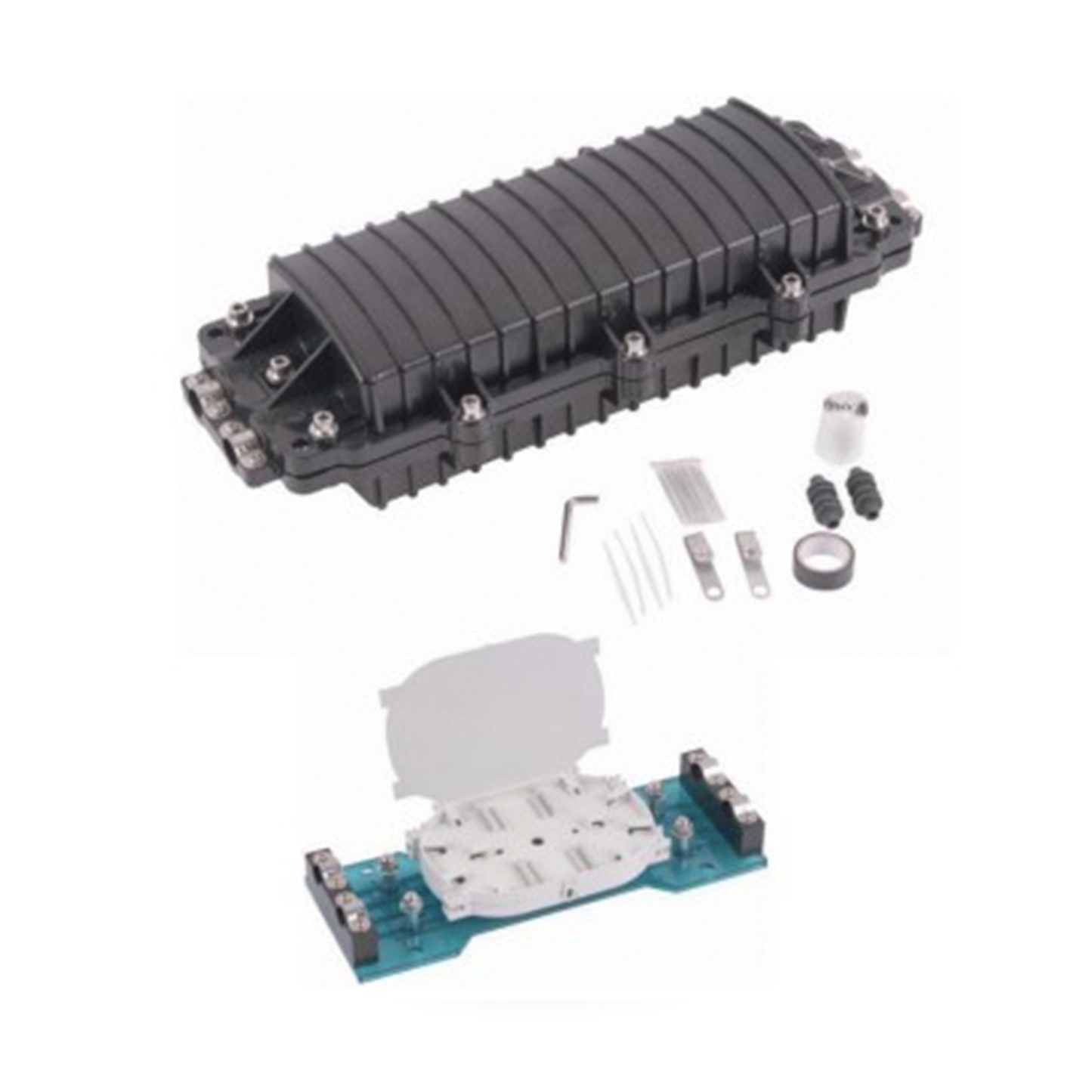

Horizontal Fiber Optic Distribution Box, up to 96 splices, Outdoor IP68, 2 ports input and output

  • 37e34dbb6bcaea8c17224353ba98115e
  • 37e34dbb6bcaea8c17224353ba98115e
1 2
  • Allows merging 96 threads
  • Protection level IP68
  • 2 cable entries (Ø 7 - 15 mm)
  • Dimensions (mm): 480 x 200 x 120

500 in stock

Modelo: LP-SCH96-2

Proveedor: LINKEDPRO BY EPCOM

Código SAT: 26121650

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The new series of horizontal linkedpro junction boxes with mechanical sealing & comma; which is designed for overhead installations in cables & comma; records & comma; wall and direct buried. It has flexible splice trays and a variety of accessories available for various applications.

Features:

  • Horizontal design structure with mechanical closure
  • For air installation, stop under-recorded
  • Made of polypropylene with high impact resistance
  • Allows fibre&comma derivation; as intermediate point
  • Allows it to open in a simple way & comma; both for opening and closing
  • IP68 protection level
  • Allows to perform the fusion of 96 threads
  • 2 inputs for cable (Ø 7 - 15mm)
  • Dimensions (mm): 480x200x120
  • Weight: 2.5Kg
  • Compatible with ADSS & Comma Fiber; Mini ADSS and Mini Figure 8 *

* It is recommended to add more fusion tape (sealing mud) in the cable input

Incluye:

  • 4 splicing trays for 24 c/u splices (96 in total)
  • 1 Instructive
  • 1 Bag with splice sleeves (60mm)
  • 1 Bag with nylon webbing
  • 1 Protection tube for bare fiber
  • 4 Grommets
  • 1 Key
  • 1 Melting tape
  • 1 Insulation tape
  • 1 Set of accessories to hang the junction box
  • 1 Set of accessories for wall or wall installation
