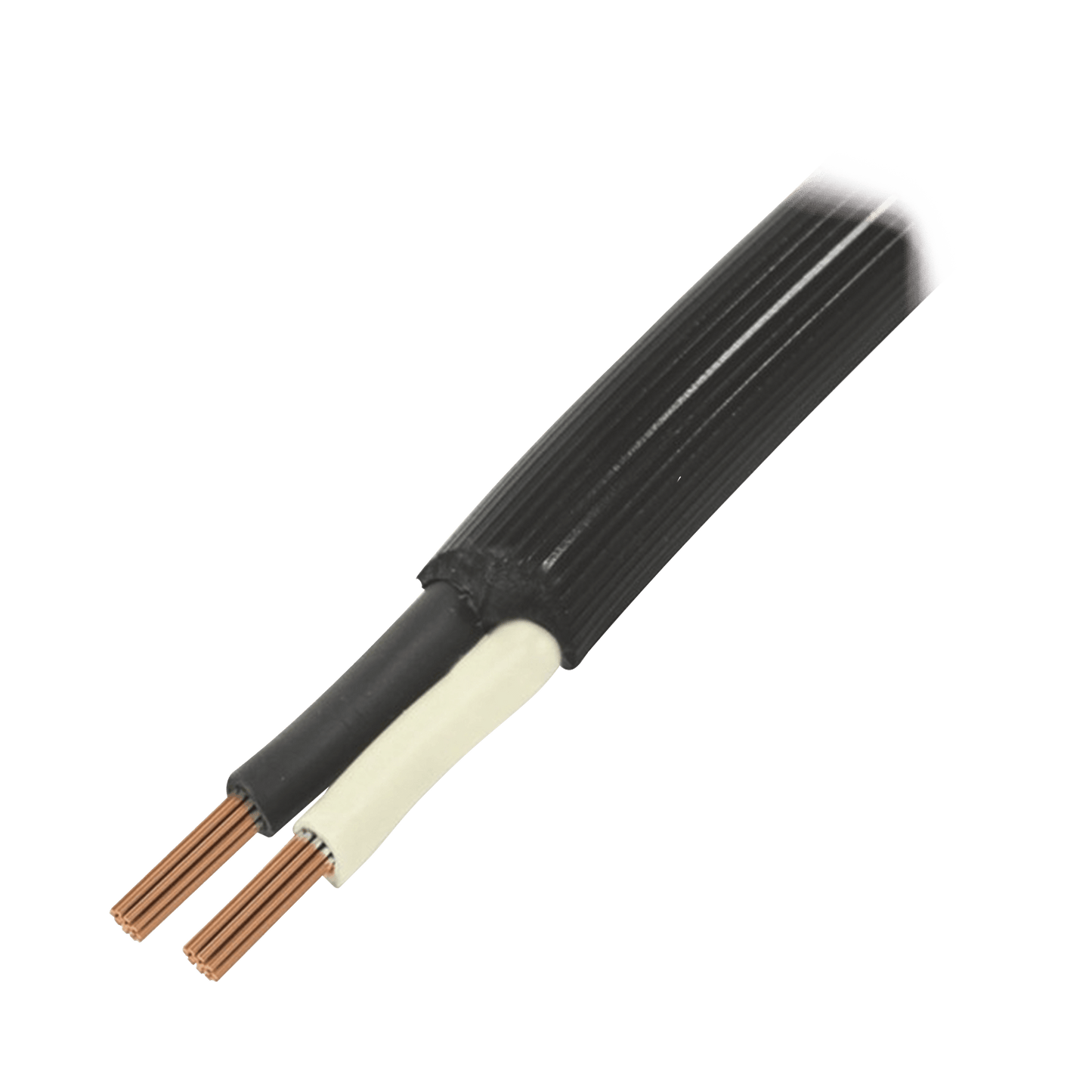

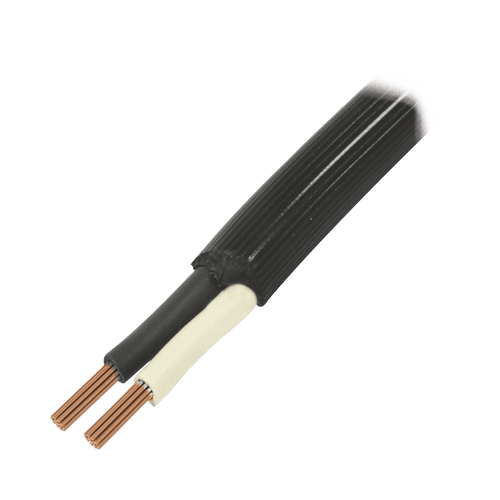

Heavy Duty Electric Cable 2 Wires Gauge 12 AWG, Up to 600 V. 100 m roll.

  • d1235dd69eae4290c8e1794117e0b609
1 1
  • Conductor de cobre suave, calibre 2 x 12 AWG
  • Aislamiento PVC autoextinguible de 1.52 mm espesor
  • Operación segura hasta 90°C en lugares secos
  • 19 hilos, diámetro conductor 13 mm
  • Presentación en rollo de 100 metros

Out of stock

Modelo: RQ34/100M

Proveedor: INDIANA

Código SAT: 26121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

RQ34/100M

Self-extinguishing PVC insulated soft copper conductor

Sale in coil of 100 meters

THW-LS drivers are high security, They are manufactured for reliable use in dry locations, wet or in oil, and installed in duct, conduit or in trays. Its excellent self-extinguishing properties, makes it ideal to be installed in housing constructions and small businesses.

Characteristics:

  • Gauge: 2 X 12 AWG
  • Number of threads: 19
  • Driver area: 5.26 mm²
  • Driver Diameter: 13 mm.
  • Insulation Thickness: 1.52 mm.
  • Exterior Diameter: 10.3 mm.
  • Weight per meter: 0.268 kg.
  • Coating Color: Black.
  • 2 conductors: Black and white.
  • Presentation: Roll with 100 m.

Specifications:

  • NMX-J-010-ANCE
  • Operating temperature in dry locations: 90 °C
  • Operating temperature in wet locations: 75 °C
  • Attributes:
  • LS : Resistant to the spread of fire, low smoke emission and low acid gas content
  • FV2 (VW-1): Flame Retardant
  • Slideable
  • CT* Approved for use in cable trays
  • SR* Resistant to weather and sunlight

Related products:

  • 2 X 10 AWG: RQ35/100M
  • 2 X 12 AWG: RQ34/100M
  • 2 X 14 AWG: RQ33/100M
  • 2 X 18 AWG: VD63/100M
  • 3 X 10 AWG: RQ39/100M
  • 3 X 12 AWG: RQ38/100M
  • 3 X 14 AWG: RQ37/100M
  • 3 X 16 AWG: RQ36/100M
  • 3 X 18AWG: VD64/100M
  • 4 X 10 AWG: RQ42/100M
  • 4 X 12 AWG: RQ41/100M
  • 6 X 14 AWG: RQ40/100M
  • 4 X 16 AWG: VD65/100M
  • 4 X 18 AWG: VD66/100M
