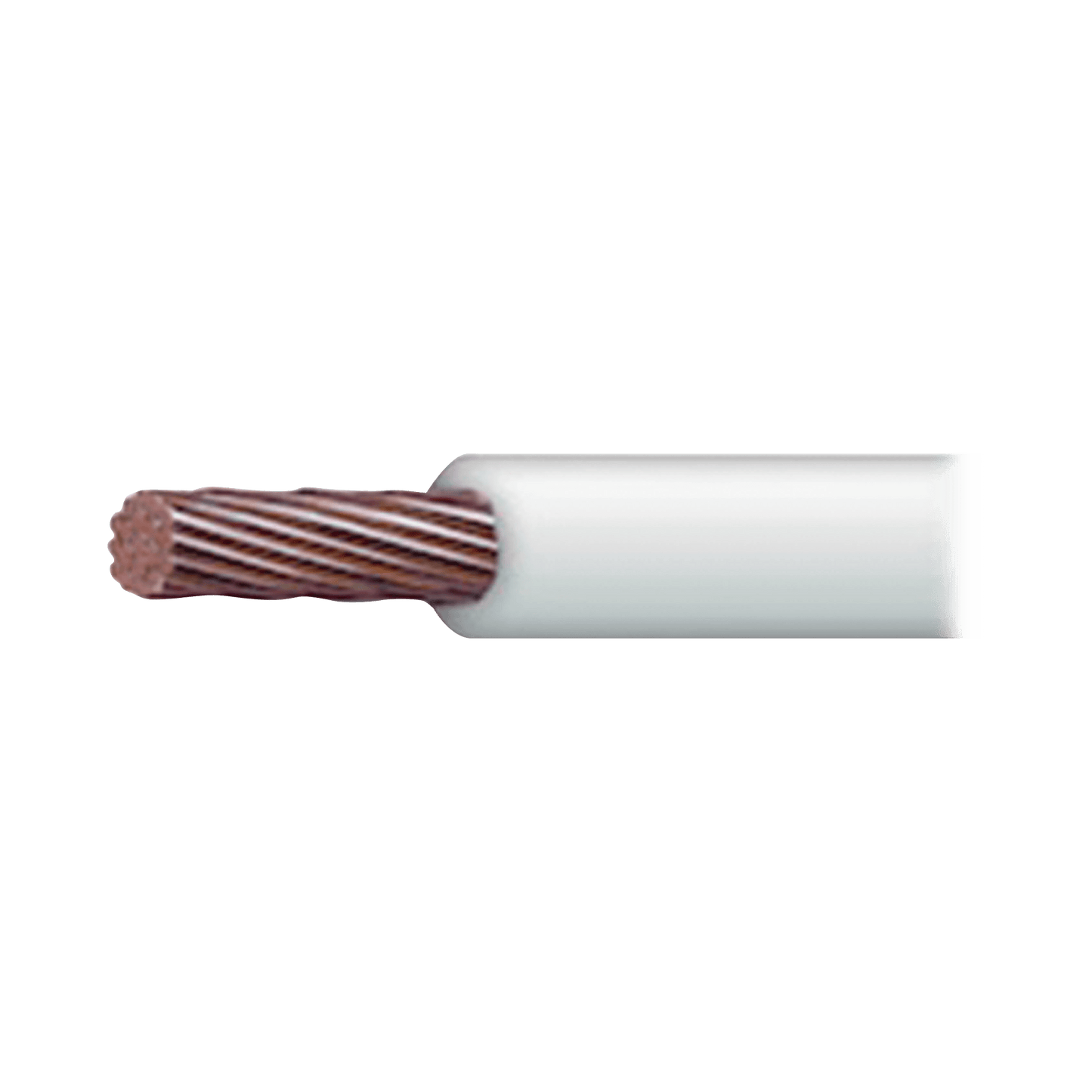

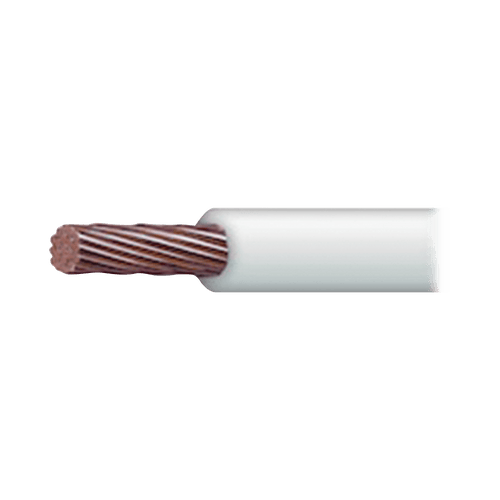

THW-LS Covered Copper Electrical Cable Gauge 4 AWG 19 Wires White Color (100 meters)

  • 4fa1be1015f638bce3f3642e74e2c6cc
1 1

Out of stock

Modelo: SLY-287-WHT/100

Proveedor: INDIANA

Código SAT: 26121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

SLY287WHT/100

Self-extinguishing PVC insulated soft copper conductor

Sale in coil of 100 meters

THW-LS drivers are high security, They are manufactured for reliable use in dry locations, wet or in oil, and installed in duct, conduit or in trays. Its excellent self-extinguishing properties, makes it ideal to be installed in housing constructions and small businesses.

Characteristics:

  • Gauge: 4 AWG
  • Number of threads: 19
  • Driver area: 33.6 mm²
  • Conductor Diameter: 7.42 mm.
  • Insulation Thickness: 1.52 mm.
  • Exterior Diameter: 10.3 mm.
  • Weight per meter: 0.372 kg.
  • Coating Color: White .
  • Presentation: Roll with 100 m.

Specifications:

  • NMX-J-010-ANCE
  • Operating temperature in dry locations: 90 °C
  • Operating temperature in wet locations: 75 °C
  • Attributes:
  • LS : Resistant to the spread of fire, low smoke emission and low acid gas content
  • FV2 (VW-1): Flame Retardant
  • Slideable
  • CT* Approved for use in cable trays
  • SR* Resistant to weather and sunlight

Related products:

  • 2 AWG : SLY286BLK/100 , SLY286WHT/100
  • 4 AWG : SLY287BLK/100 , SLY287GRN/100 , SLY287RED/100 , SLY287WHT/100
  • 6 AWG : SLY291BLK/100 , SLY291GRN/100 , SLY291RED/100 , SLY291WHT/100
  • 8 AWG: SLY296BLK/100, SLY296GRN/100, SLY296RED/100, SLY296WHT/100
  • 10 AWG : SLY304BLK/100, SLY304GRN/100, SLY304RED/100, SLY304WHT/100
  • 12 AWG : SLY308BLK/100,SLY308GRN/100,SLY308RED/100, SLY308WHT/100
  • 14 AWG : SLY312BLK/100,SLY312GRN/100,SLY312RED/100, SLY312WHT/100
  • 16 AWG : SLY316BLK/100,SLY316GRN/100,SLY316RED/100, SLY316WHT/100
  • 18 AWG : SLY328BLK/100,SLY328GRN/100,SLY328RED/100, SLY328WHT/100
  • 1/0 AWG: SLY343BKL/100
  • 2/0 AWG: SLY346BKL/100
  • 3/0 AWG: SLY347BKL/100
  • 4/0 AWG: SLY349BKL/100
