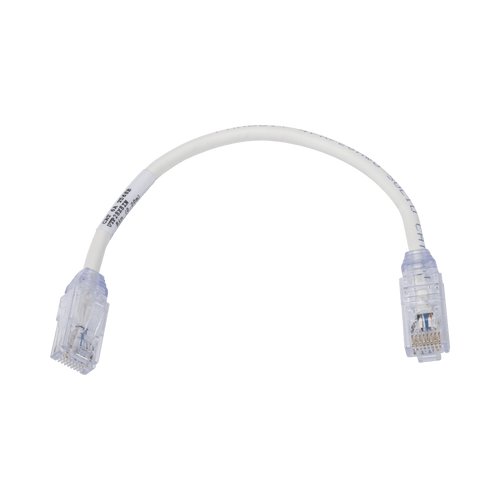

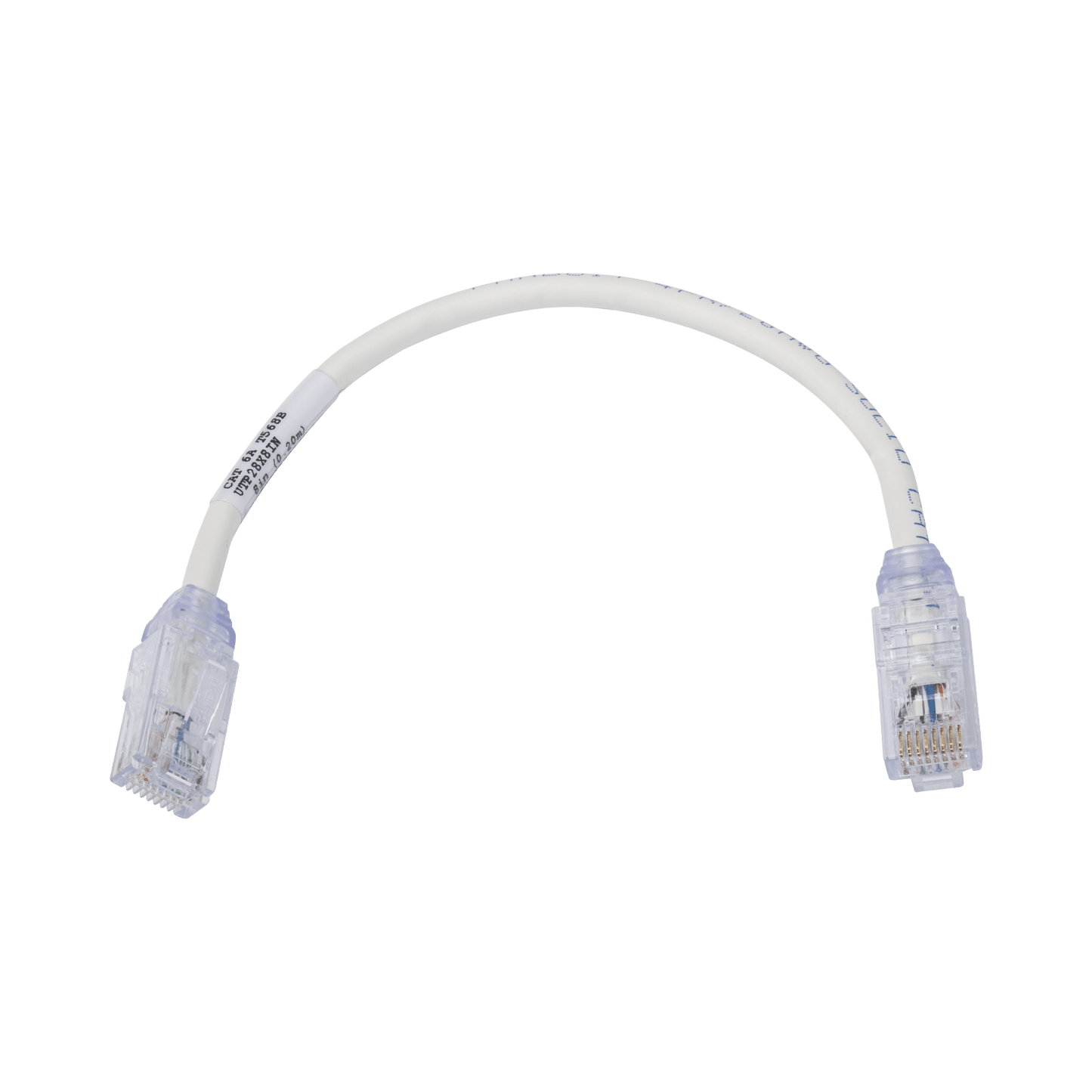

Patching Cable UTP, Cat6A, Reduced Diameter (28 AWG), CM/LSZH, Matte White Color, 8in (20.3cm)

  • f5eb029abf70e4ef496d35827f722f59
  • 3932e38168211d87f271f3bf4846f65b
1 2
  • Improved cable routing and management in high-density applications
  • Flammability degree: CM/LSZH

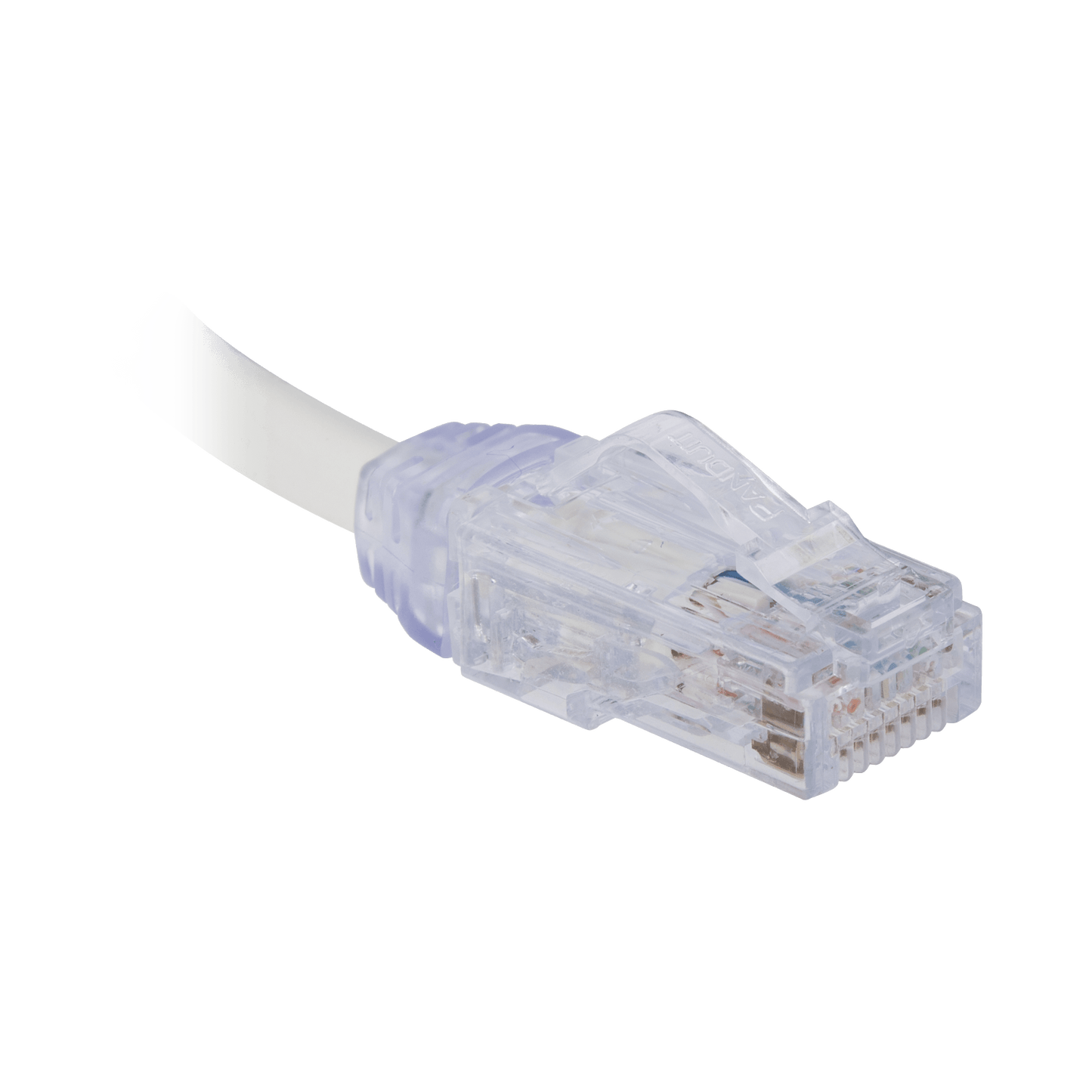

  • Plug plated with 50 micro inches of gold and rated for high durability
  • 28 AWG solid UTP construction with a nominal diameter of 4.7 mm

500 in stock

Modelo: UTP28X8IN

Proveedor: PANDUIT

Código SAT: 26121616

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6A / Class EA, UTP, small diameter patch cables are constructed of 28 AWG solid twisted pair copper wire (dual CM/LSZH rated) with high performance RJ45 modular plugs. Patch cables are offered in multiple lengths and colors for design flexibility.

Technical Information:

  • Category 6A Performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz
  • Nominal diameter: 4.7 mm
  • FCC and ANSI Compliance: Meets ANSI/TIA-1096-A (formerly FCC Part 68); 50 micron gold plated contacts for superior performance
  • IEC Compliance: Complies with IEC 60603-7
  • PoE Compliance: Supports IEEE 802.3af/802.3at (48 wires in a bundle) and 802.3bt Type 3 and Type 4 (24 wires in a bundle) PoE applications
  • Flammability rating: CM/LSZH
