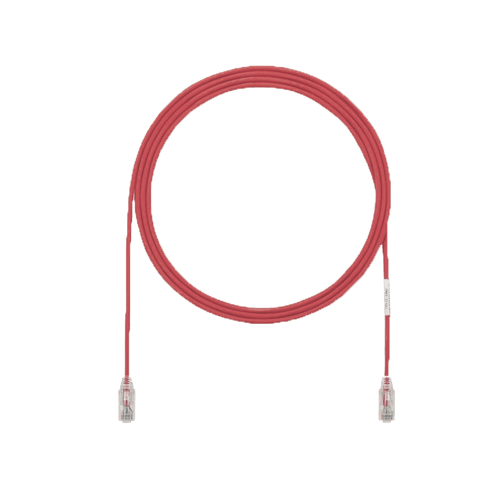

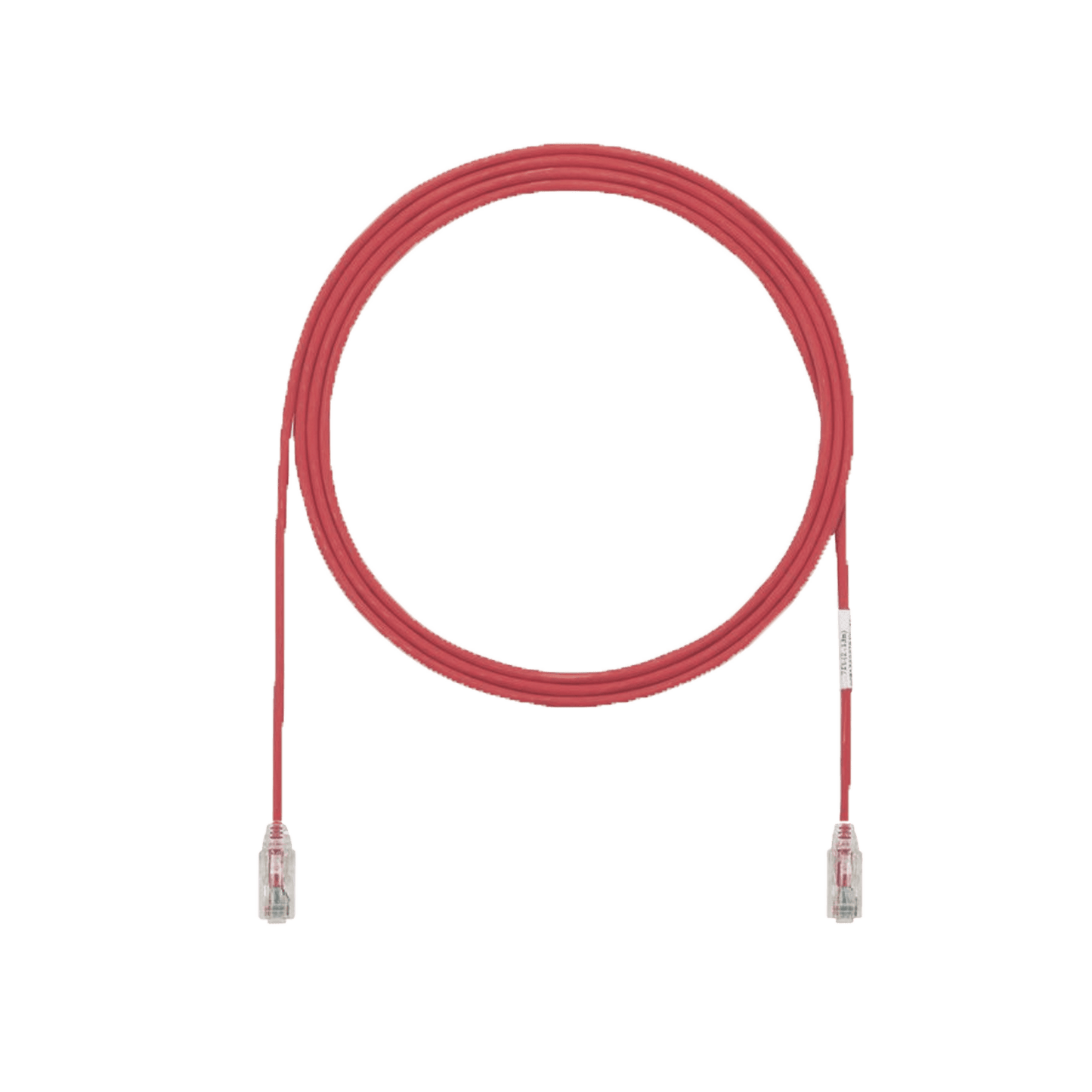

Patching Cable UTP Cat6A, CM/LSZH, Reduced Diameter (28AWG), Red Color, 50ft

  • 8b55af8b50ee24a1dd86aa2630229a22
1 1
  • Improved cable routing and management in high-density applications
  • Flammability degree: CM/LSZH
  • Plug plated with 50 micro inches of gold and rated for high durability
  • 28 AWG solid UTP construction with a nominal diameter of 4.7 mm

Out of stock

Modelo: UTP28X50RD

Proveedor: PANDUIT

Código SAT: 26121616

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6A/Class EA, UTP, reduced diameter patch cables are constructed of 28 AWG unshielded twisted pair copper wire (dual-rated CM/LSZH), with high-performance RJ45 modular plugs. Patch cables are offered in multiple lengths and colors for design flexibility.

Technical Specifications:

  • Cat6A Performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E electrical performance requirements for frequencies up to 500 MHz
  • Nominal diameter: 4.7 mm
  • FCC and ANSI Compliance: Complies with ANSI/TIA-1096-A
  • PoE Compliance: Supports IEEE 802.3af/802.3at (48 wires in a bundle) and 802.3bt Type 3 and Type 4 (24 wires in a bundle) PoE applications
  • Operating temperature: -40 to 75ºC
  • Storage temperature: -40 to 70ºC
  • Flammability rating: CM/LSZH
