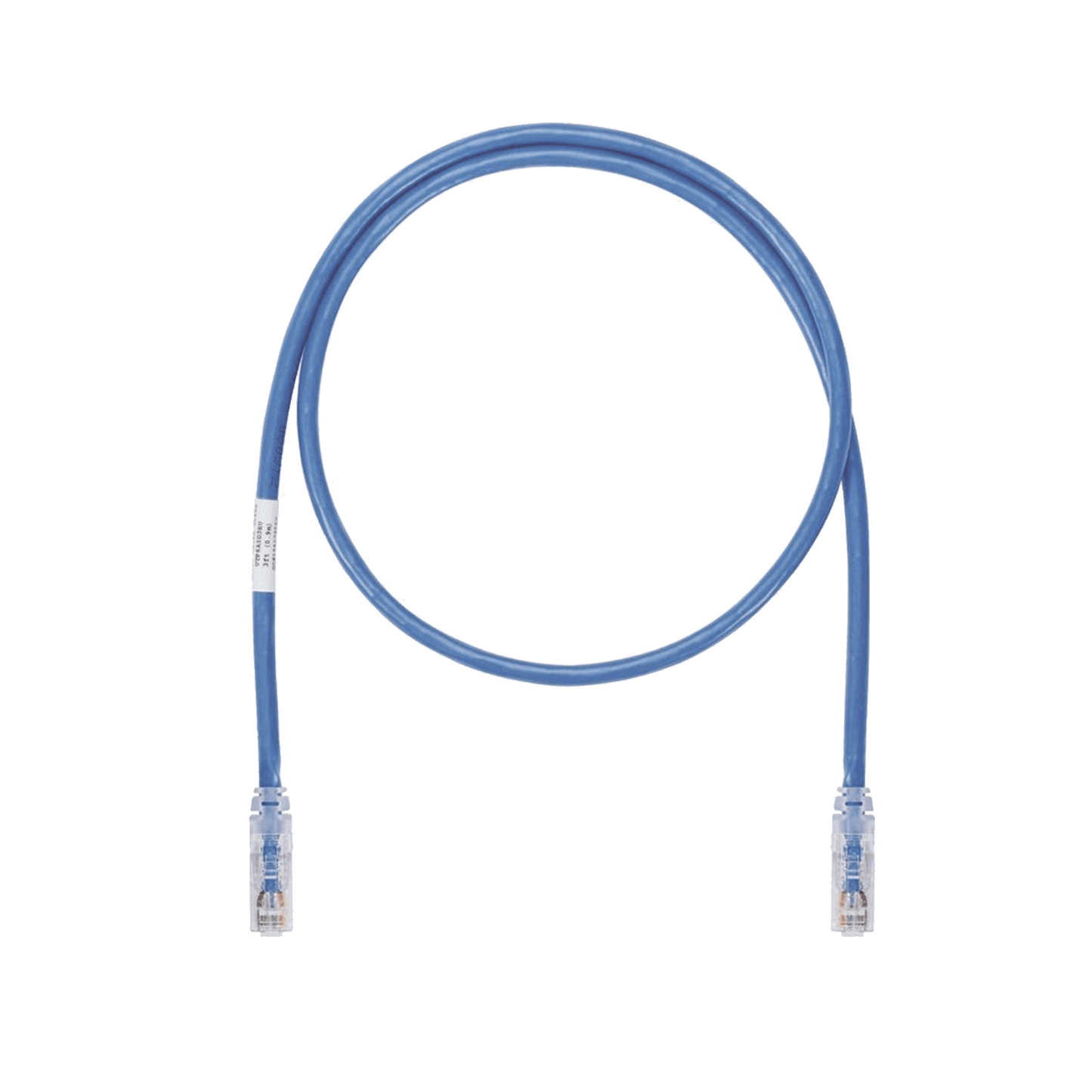

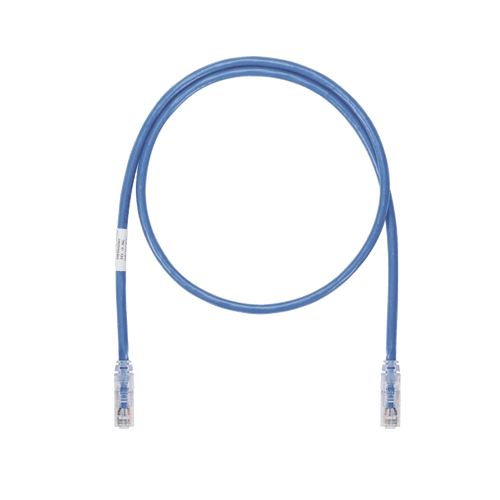

UTP Patch Cable, Cat6A, 24 AWG, CM, Blue, 17ft

  • 9093d5874f6e2a792caa6e94e5a79b8c
1 1
  • Nominal diameter: 6.4mm
  • Flammability degree: CM
  • 24 AWG Solid U/UTP Copper Cable
  • Rugged Construction: Rated for 2500 plug-in cycles

Out of stock

Modelo: UTP6AX17BU

Proveedor: PANDUIT

Código SAT: 43223303

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6A/Class EA UTP Patch Cables They are constructed of 24 AWG twisted pair copper wire with a performance-enhanced modular plug on each end. The copper conductors in the patch cable are twisted in pairs and separated by a central crossbar. All four pairs are surrounded by matrix tape and a flame retardant lining. The patented matrix tape will suppress exogenous crosstalk and enable 10 Gb/s transmission. The patch cord is offered in multiple colors and lengths for design flexibility with a strain relief sleeve on each modular plug. All patch cables are compatible with T568A and T568B wiring schemes.

Technical information:

  • Category 6A Performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz
  • Nominal diameter: 6.4mm
  • FCC and ANSI Compliance: Complies with ANSI/TIA-1096-A (formerly FCC Part 68); 50 micron gold plated contacts for superior performance
  • IEC Compliance: Complies with IEC 60603-7
  • PoE Compliance: Rated for 2500 cycles with IEEE 802.3af/802.3at and 802.3bt Type 3 and Type 4
  • Flammability degree: CM
