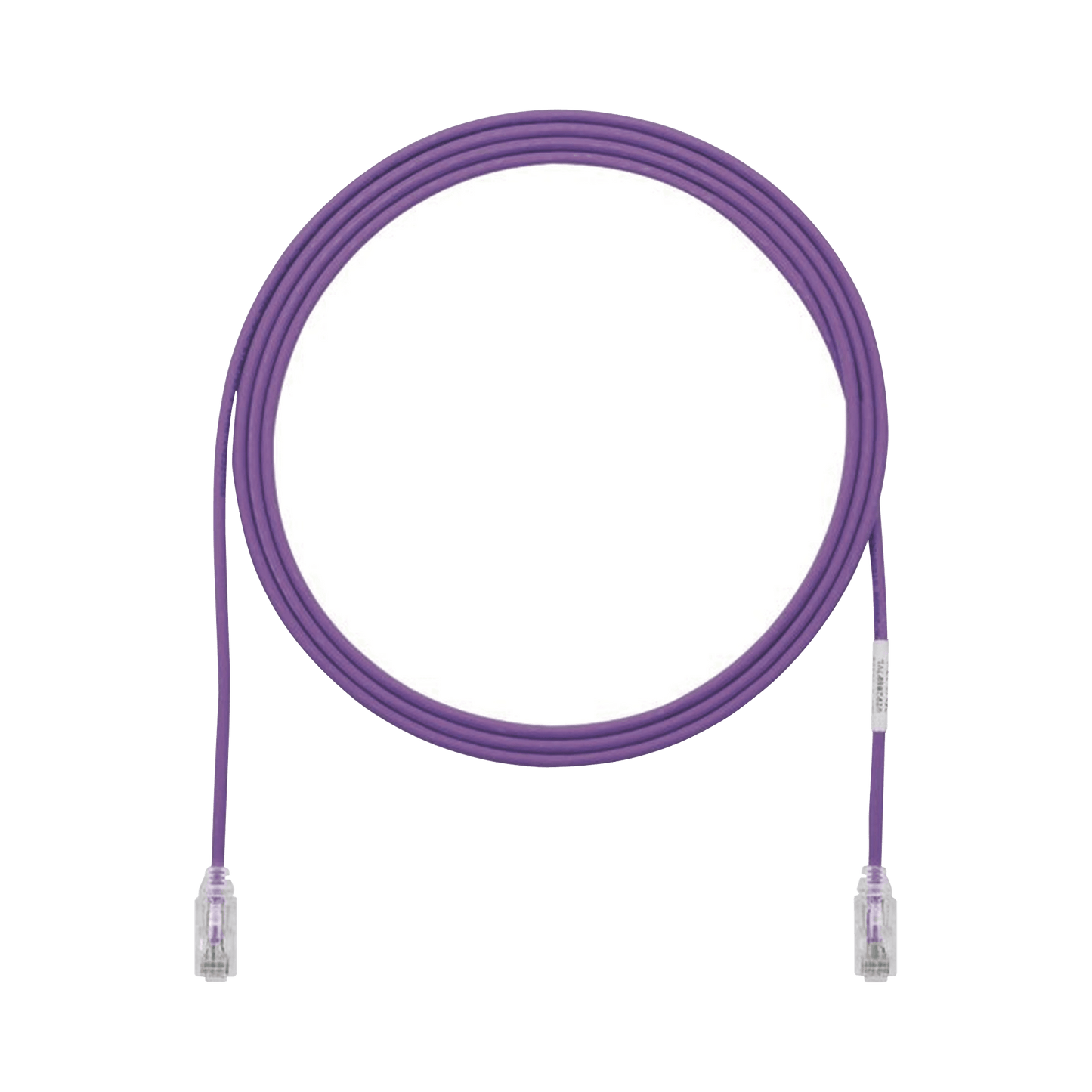

TX6 Patch Cable, UTP Cat6, Reduced Diameter (28AWG), Violet Color, 12ft

  • 720e3b99351c28b3eb34fe402ed4e084
1 1
  • Improved cable routing and management in high-density applications
  • Provides easy release, saving time on frequent moves, adds and changes
  • Plug plated with 50 micro inches of gold and rated for 2500 mating cycles
  • 28 AWG stranded U/UTP construction with a nominal diameter of 3.8 mm allows for high-density installations

Out of stock

Modelo: UTP28SP12VL

Proveedor: PANDUIT

Código SAT: 26121616

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6/Class E patch cables, UTP, reduced diameter cables are constructed of 28 AWG (CM/LSZH dual rated) unshielded twisted pair copper wire, with high-performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

Technical specifications:

  • Cat6 Performance: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz
  • Nominal diameter: 3.8mm
  • FCC and ANSI Compliance: Complies with ANSI/TIA-1096-A
  • PoE Compliance: Supports IEEE 802.3af/802.3at (48 wires in a harness) and 802.3bt Type 3 and Type 4 (24 wires in a harness) PoE applications
  • Operating temperature: -10 to 75ºC
  • Storage temperature: -40 to 70ºC
  • Flammability degree: CM/LSZH
