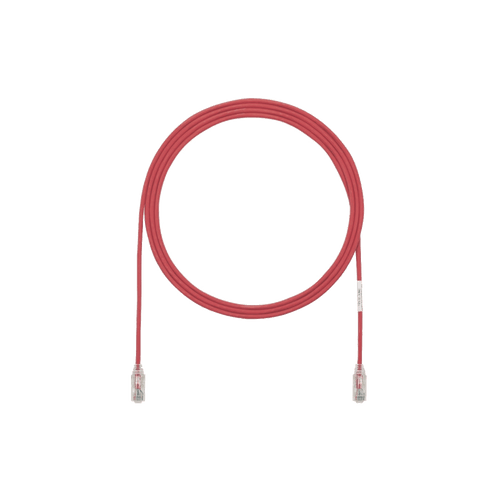

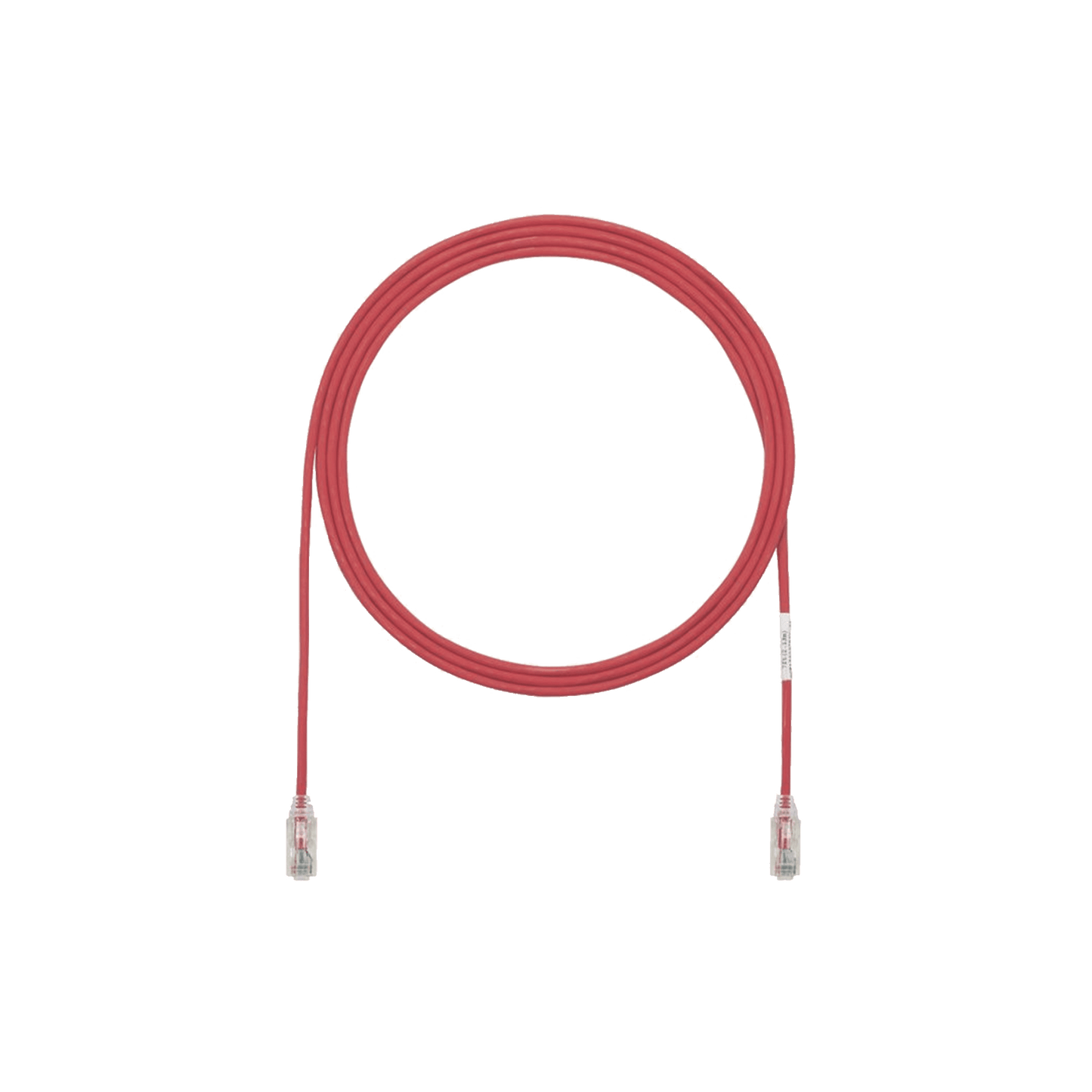

Patching Cable TX6, UTP Cat6, Reduced Diameter (28AWG), Red Color, 5ft

  • 19f9c220ddc737db3ef2cab684e1bcf2
1 1
  • Diametro reducido: 3.8 mm para ahorrar espacio
  • Cumple ANSI/TIA-568.2-D, rendimiento categoría 6
  • Soporta PoE IEEE 802.3af/at y 802.3bt
  • Calibre 28 AWG cobre, alta flexibilidad
  • Rango temperatura: -10 a 75°C, uso versátil

500 in stock

Modelo: UTP28SP5RD

Proveedor: PANDUIT

Código SAT: 26121616

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Category 6/Class E, UTP, reduced diameter patch cables are constructed of 28 AWG unshielded twisted pair copper wire (dual-rated CM/LSZH), with high-performance RJ45 modular plugs. Patch cables are offered in multiple lengths and colors for design flexibility.

Technical Specifications:

  • Cat6 Performance: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz
  • Nominal diameter: 3.8 mm
  • FCC and ANSI Compliance: Complies with ANSI/TIA-1096-A
  • PoE Compliance: Supports IEEE 802.3af/802.3at (48 wires in a bundle) and 802.3bt Type 3 and Type 4 (24 wires in a bundle) PoE applications
  • Operating temperature: -10 to 75ºC
  • Storage temperature: -40 to 70ºC
  • Flammability rating: CM/LSZH
