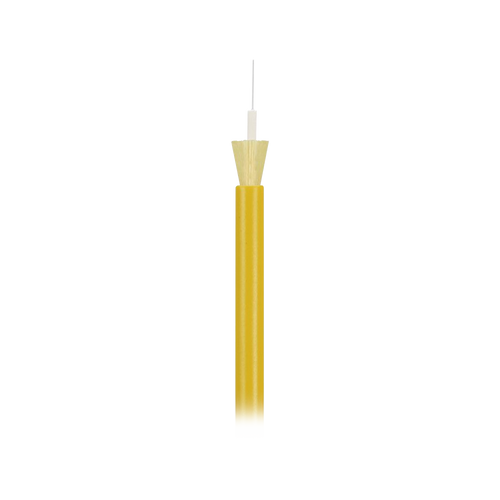

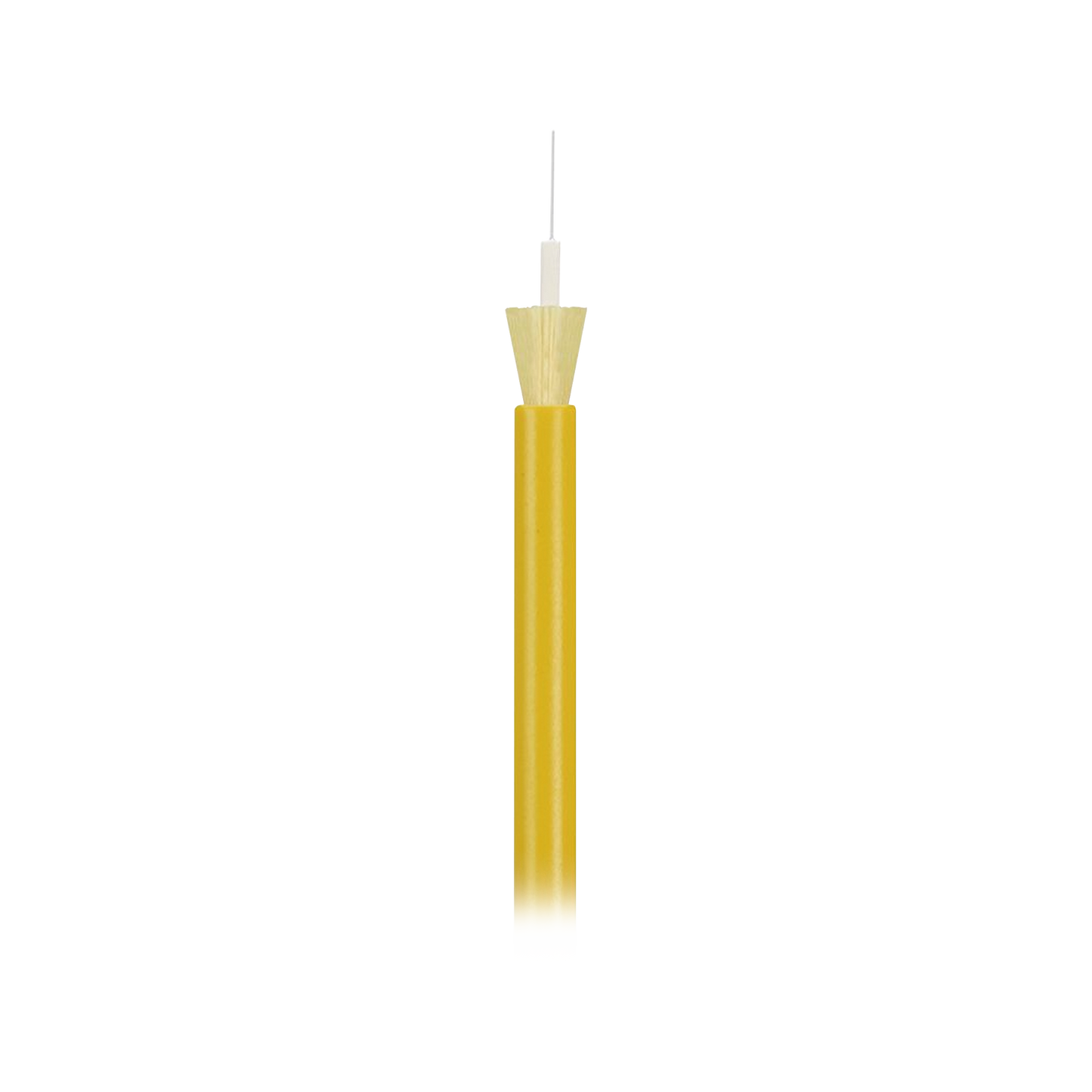

1-Wire Fiber Optic Cable (G.657.A1), Singlemode OS2 9/125, Indoor, Tight Buffer 900um, Non-Conductive (Dielectric), Riser, Price Per Meter

  • 1686c62de79577d3b8d2700f6f96470c
  • 1686c62de79577d3b8d2700f6f96470c
1 2
  • Cable monomodo OS2 insensible a curvaturas
  • Forro termoplástico amarillo OFNR/FT4 clasificado riser
  • Diámetro nominal de 2 mm, peso 4 kg/km
  • Atenuación máxima de 0.5 dB/km a 1310 nm
  • Radio de curvatura de 20 mm

500 in stock

Modelo: FSIRA01Y

Proveedor: PANDUIT

Código SAT: 26121607

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Opti-Core™ fiber optic cables for passive optical LAN applications meet common requirements for 1- and 2-fiber cables for passive optical networks. These OS2 Singlemode indoor cables use a Riser rated yellow thermoplastic (OFNR/FT4) outer jacket; strength elements in aramid and is insensitive to curvatures according to ITU G.657.A1/G.652.D with an adjusted buffer of 900µm. This construction allows the cable to meet the installation and performance demands typically found in PON architectures.

  • Number of Fibers: 1
  • Nominal diameter: 2mm
  • Maximum installation tension: 111 N
  • Yellow color
  • Bending Radius: 20mm
  • Operating temperature range: -20 to 75ºC
  • Installation temperature range: -10 to 70ºC
  • Storage temperature range: -40º 85ºC
  • Maximum attenuation (1310nm): 0.5dB/km
  • Maximum attenuation (1150nm): 0.5dB/km
  • Weight: 4kg/km
  • Standards Compliance: ANSIT/TIA-568.3-D, ANSI/ICEA S-83-596, Telcordia GR-409, EN 50173, SO/IEC 11801
