G.652D Aerial Fiber Optic Cable (ADSS), 48-Wire Singlemode, Outdoor, Span 200, Loose Tube, Price per meter

  • 33a8bcc6c1d472a58db32ab0efe55f9d
1 1
  • Cubierta Exterior: HDPE (Polietileno de Alta Densidad)
  • Temperatura de operación: -20ºC a +65ºC
  • Span (Distancia entre Postes): 200 metros
  • Máxima Tensión: 3800N
  • Anti-tracking (hasta 110kV)

Out of stock

Modelo: OC-ADSS-48C-S200/M

Proveedor: LINKEDPRO BY FIBERHOME

Código SAT: 26121607

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

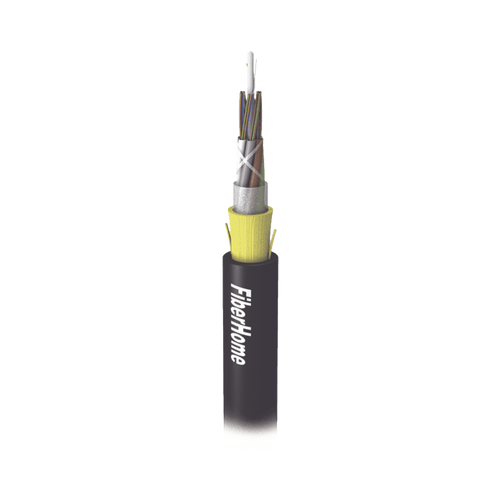

ADSS (All Dielectric Self Supported) fiber optic cable is designed for aerial installations between poles. ADSS cables resist the necessary traction thanks to the aramid yarns, does not contain metallic elements.

Technical specifications:

  • Fiber Optic ADSS G.652D Singlemode Loose Tube
  • Outer Cover: HDPE (High Density Polyethylene)
  • Maximum tension: 3800N
  • Anti-tracking (up to 110kV)
  • Operating temperature: -20ºC to +65ºC
  • Span (Distance between Posts): 200 meters
  • Protection against UV rays and humidity
  • Nominal diameter (D): 10.9 ± 0.5mm
  • Minimum curvature radius: Installation 25D, Operation 12.5D
  • Crushing resistance: 1000N/10cm
  • Nominal weight (g/m): 91 ± 15 g/ m
  • 48 threads
  • Black Lining
  • Price per 1 meter
