\ F \ \ type arm for STZ-30 sections, electrolysis galvanized.

  • bc8c07b4f8a684ffaf2af94fd8fbf4f6
  • a9632ead5679620f886f47a6d78378fe
1 2

Low stock: 5 left

Modelo: SBL-30

Proveedor: SYSCOM TOWERS

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

*For side installation of omnidirectional antennas.

  • Material: ASTM A36 Steel
  • Largo total: 1m
  • Total height: 1 m
  • Main tube diameter: Ø 1" Ced. 30
  • Extension arm tube diameter: Ø 1" Ced. 30
  • Arm extension length: 74.5 cm
  • Side arm tube diameter: Ø 3/4" Ced. 30
  • Side arm length: 25.5 cm
  • Height between side arms: 33.9 cm
  • Weight: 6.55 Kg
  • Protection: Electrolytic Galvanized (AST B-633)
  • Compatible with section STZ30

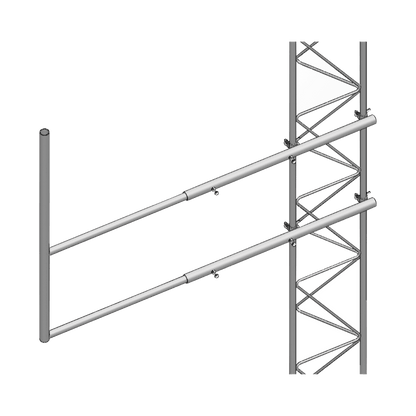

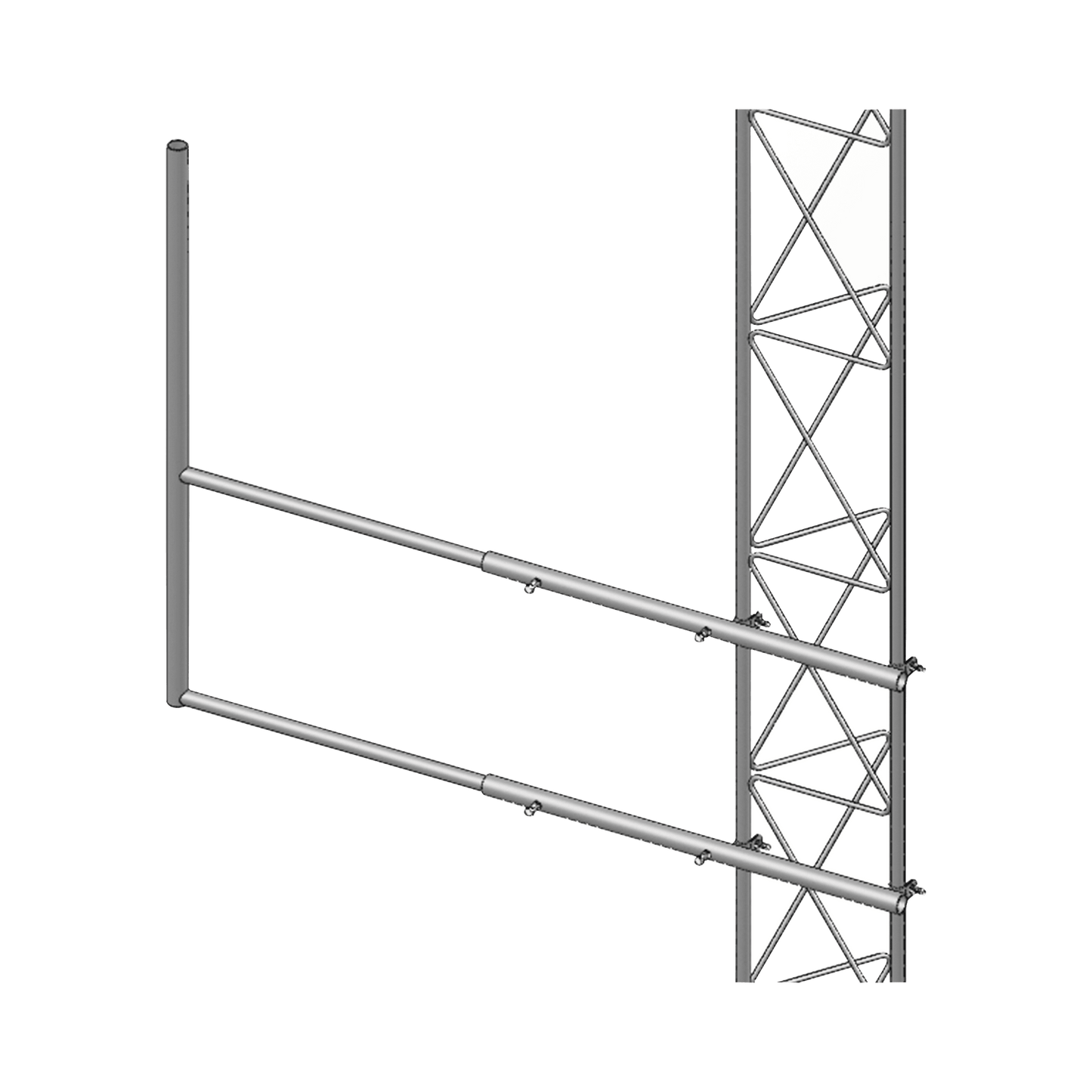

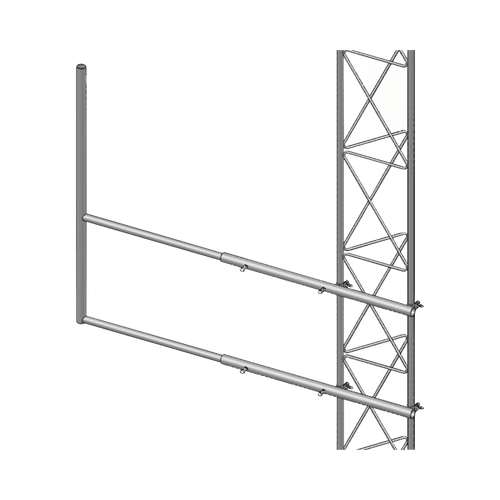

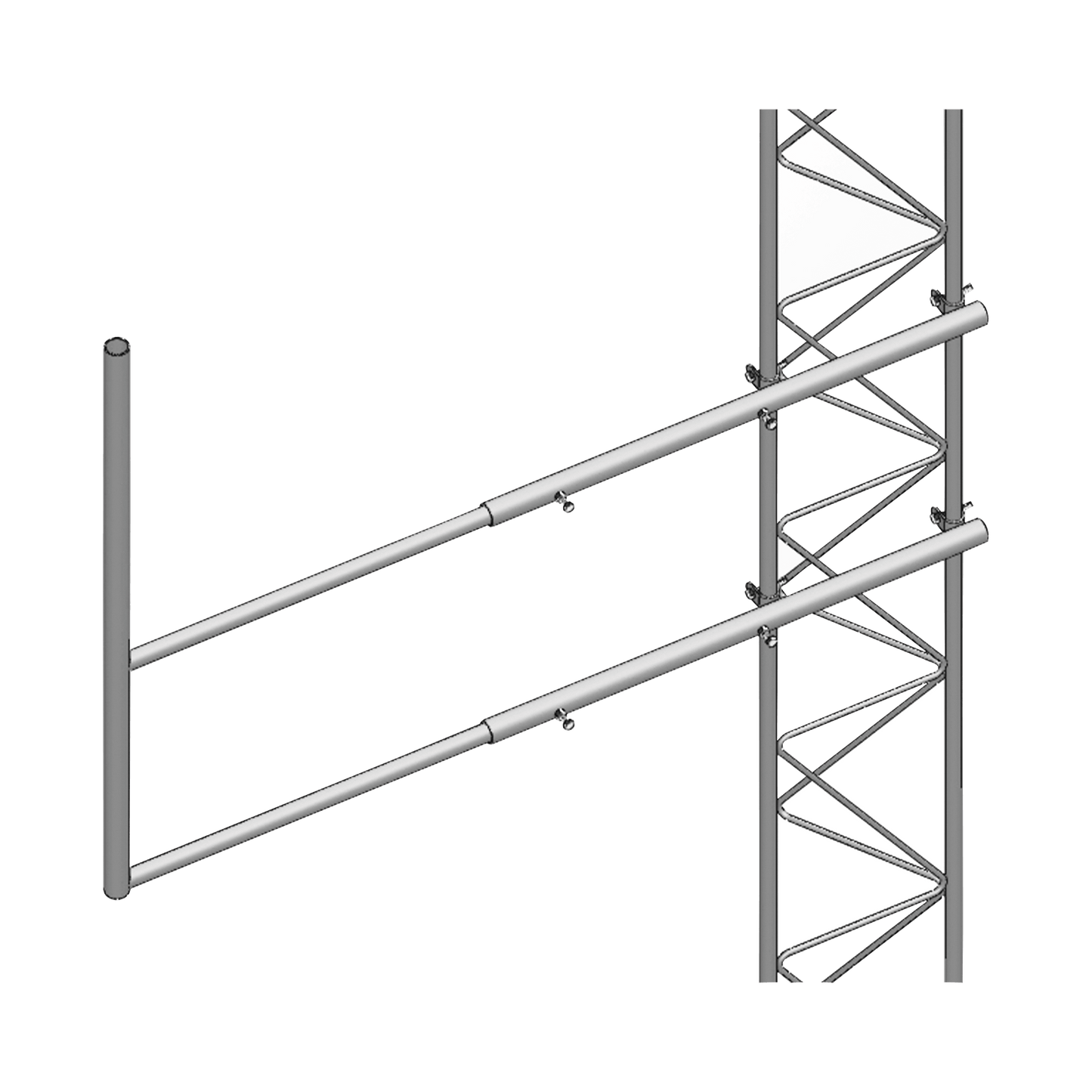

Isometric View:
