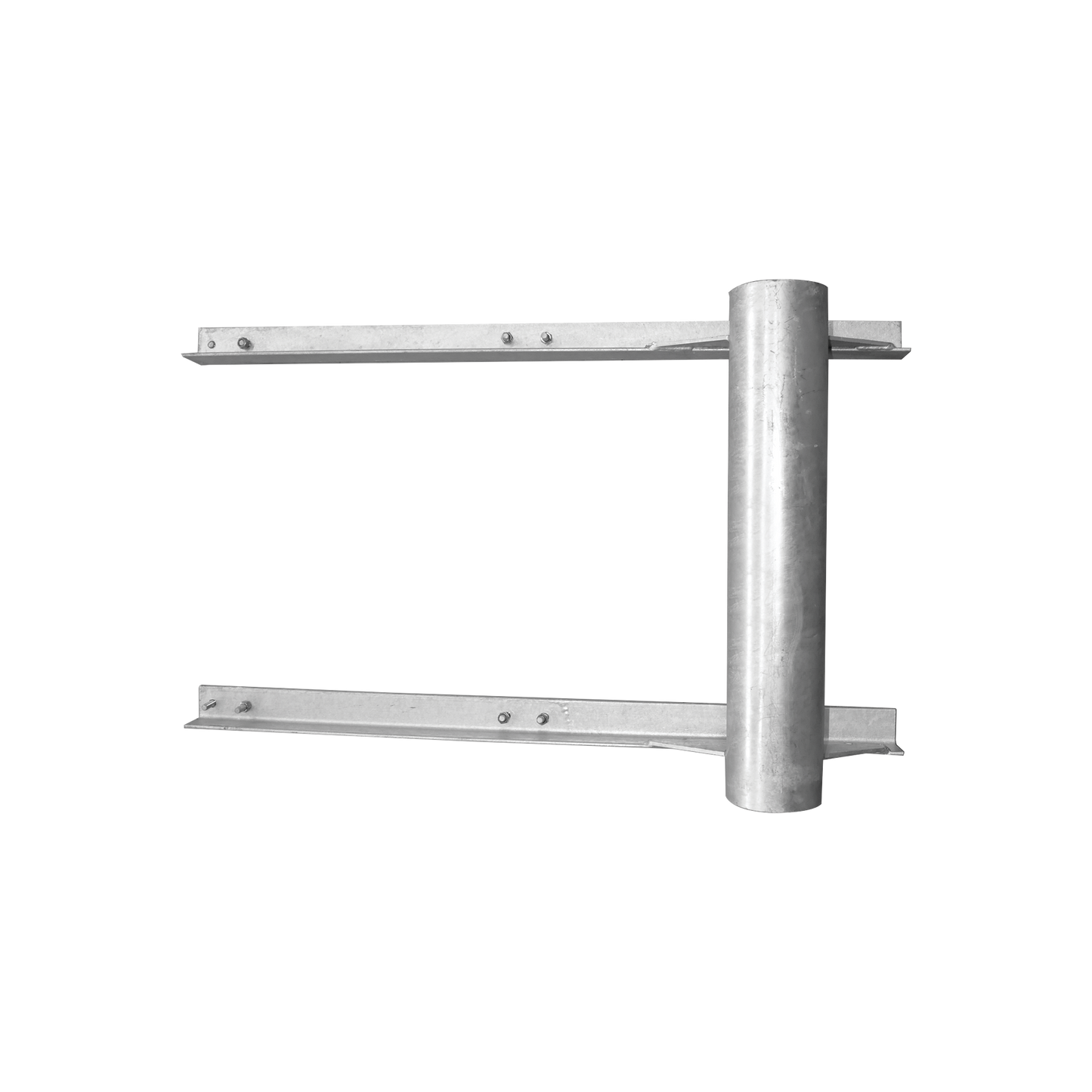

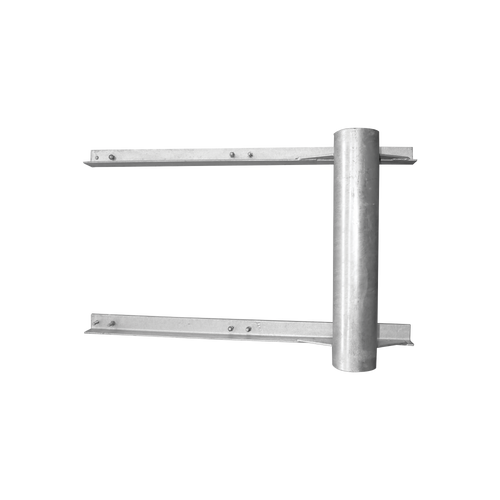

STZ45G Diameter Lateral Brass with Tubo 4.5\".

  • 2dd4104759af70953105cac85ade30b4
  • 2dd4104759af70953105cac85ade30b4
1 2
  • Material de acero ASTM A-36 resistente y duradero
  • Tubo principal de 4' con 60 cm de altura
  • Espesor del tubo de 3.048 mm para alta resistencia
  • Galvanizado en caliente según NMX-H-004-SCFI-2008
  • Compatible con tramo de torre STZ45G

17 in stock

Modelo: SBL-45-GHD

Proveedor: SYSCOM TOWERS

Código SAT: 43222903

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

*Ideal for antennas MODEL RADIOWAVES or similar.

  • Material: ASTM A-36 Steel
  • Main tube diameter: Ø 4'' Ced. 30
  • Total height of main tube: 60 cm
  • Actual outer diameter of tube: 4.5''
  • Tube thickness: 3.048 mm
  • Angle measurement: 3/16'' x 2''
  • Total length of the angles: 95 cm
  • Main tube free height: 50 cm
  • Separation from tower to hardware arm: 25 cm
  • Welded arms for easy installation
  • Weight: 13.87 kg
  • Protection: Hot dip galvanized according to NMX-H-004-SCFI-2008
  • Compatible with tower section STZ45G
