Test Button for Linear Heat Detection SafeCable

​​

• Current limiting: resistive
• Nominal voltage: 24VDC - 28VDC max.
• Current intensity: 100 mA max.
• Leakage current: 1uA unless otherwise stated
• Replaceable Fuse: 160mA per channel
• Mounting location: Non-Hazardous or Class 1 Div.2
• Temperature effect: <0,25% / 10K
• Short circuit test: Yes, unless otherwise stated
• Frequency Range: 100kHz @ sl c> 50 mA
• Grounding Method: Through Platform Mounting
• Operating Temperature: -4° to +140° F (-20° Cto60° C)
• Mounting Box: 35mm DIN rail on HDJ/ELR Box
• Dimensiones (W x H x D): 4 5/8 "x 4 1/8" x 4 5/8 " (11.75cm x 10.48cm x 11.75cm)
• Weight: 1.07 pounds (0.49 kg)
• Humidity range: Up to 95% non-condensing

Description

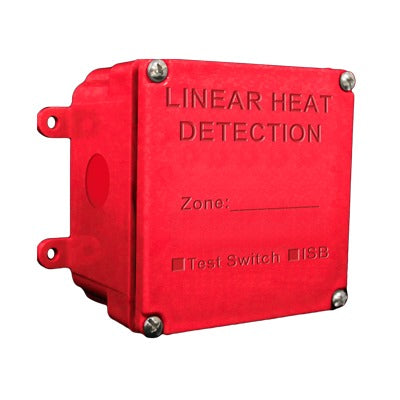

Test switches can be placed at the end of a Heat Zone Linear Sensing Cable and are to be used for commissioning, inspections, and testing of the system. The RedGear Test and Terminal Box is a rugged, non-metallic, NEMA 4 (IP66) rated box. A foam-in-place gasket seals the caps together with stainless steel screws. All connection and termination boxes must utilize a strain relief connector (Part #: RG1110) for all LHD cable penetrations made into the test box. No hole saws are required to insert the strain relief connector which secures and prevents damage to the LHD, cable and seals out moisture and dirt penetration which helps prevent corrosion.

•Fire Resistant
•Easy to use
•Test Box with Test Button
•It is installed at the end of the heat detector cable
•Used for system inspection and testing.
•Dimenciones:11.4 x 11.4 x 10.4 cm
