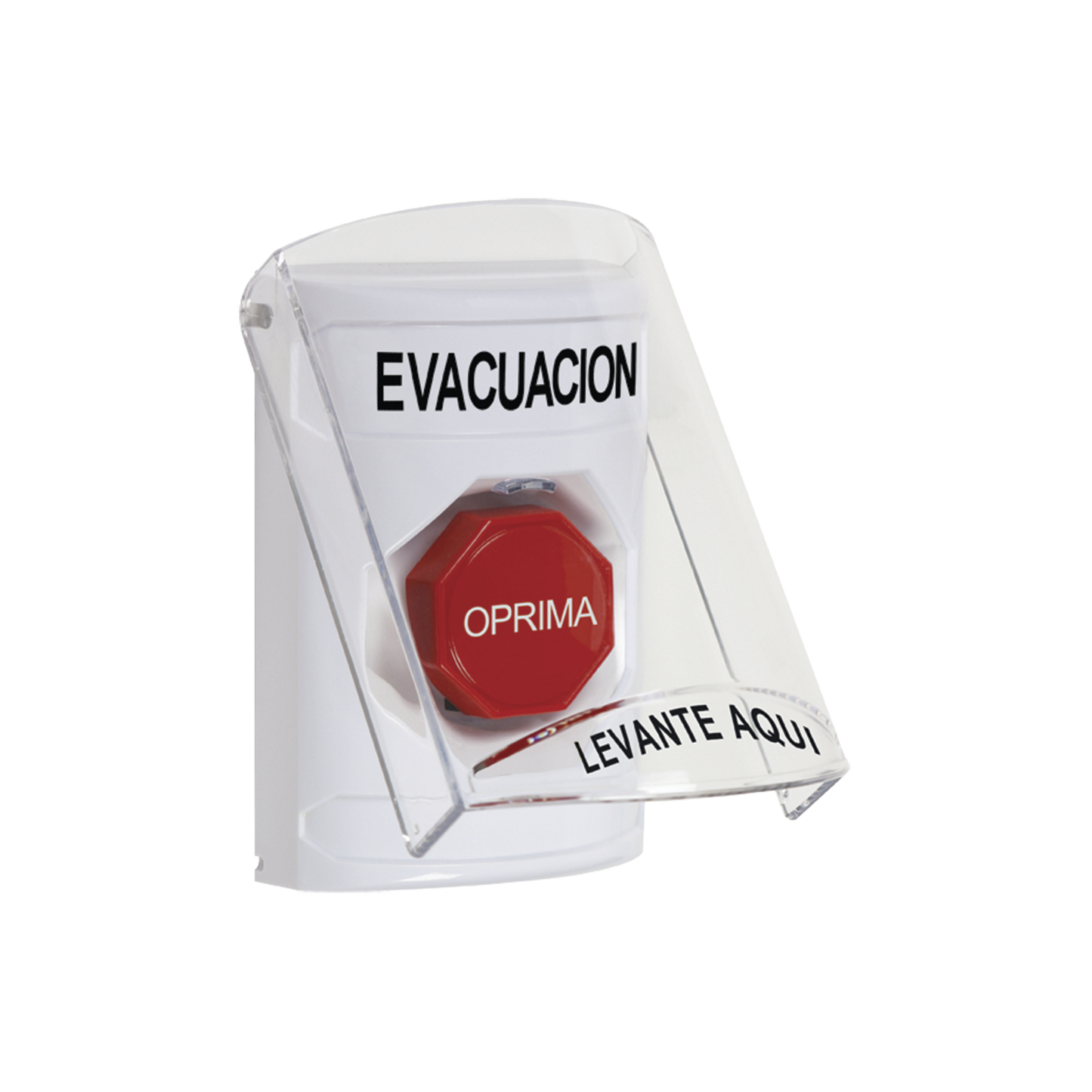

Evacuation Button, Text in Spanish, Super Resistant Polycarbonate Protective Cover, Key Reset

  • 5f7f95c83fbbd6f983dfa5faa5c9ab59
  • 5f7f95c83fbbd6f983dfa5faa5c9ab59
1 2
  • Botón multifunción para aplicaciones interiores y exteriores
  • Diseño patentado minimiza activaciones accidentales
  • Compatible con normas UL, CUL y ADA
  • Seis colores y opciones de activación personalizables
  • Cubierta transparente para protección en espacios reducidos

17 in stock

Modelo: SS2322EV-ES

Proveedor: STI

Código SAT: 39122216

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Suitable for both indoor and outdoor applications, STI has a variety of emergency buttons, contactless switches, fire alarm buttons, 3 in 1 push button, call point switches and multipurpose push button switches. Many are UL, cUL and ADA.

This multifunctional push button switch can be used for a wide range of indoor applications. The button incorporates a unique design, Patented and transparent cover helps prevent accidental activation and hugs the button like a glove making it ideal for use when space is limited.

Helps prevent accidental activation

Build these ADA-compliant, North American-style multipurpose pushbutton switches to your specifications. The unique, patented design helps dramatically stop accidental activation . Available in six colors, several button activation options , with or without protective cover and in any language to suit most applications.

Button Features:

  • White color
  • Text phrase: EVACUATION
  • Polycarbonate protective cover for interior.
  • Button operation: Key to reset
  • Spanish Language

General characteristics

Design

  • The unique curved design helps protect against accidental activation .
  • Optional lighting (red, green, white) can be used as a status light to indicate activation.
Construction
  • Rugged polycarbonate molded station housing.
  • Stainless steel back plate.
  • UL/cUL S7255 Listed UL2017 , UL294 (models with lockout timer module) CSA c22.2 No. 205.
  • The Universal Stopper® cover, when mounted in accordance with the manufacturer's installation instructions on a smooth surface, Provides a rain-tight seal similar to a 3R rating.
  • Buttons are ADA compliant (excludes button "3").
Facility
  • 5VA flammability rating on backplate and spacer.
  • Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C).
Options
  • Your choice of colors: red, green, yellow, white or blue.
  • Standard or custom text or high resolution logo.
  • Writing in practically any language.
  • Option to protect switches with STI protective covers.
Other features
  • Multipurpose push button switches cover a wide range of applications both indoors and outdoors.
  • They incorporate a unique, patented design that dramatically helps stop accidental activation.
  • Three-year warranty against polycarbonate breakage in normal use (one year on electromechanical and electronic components).
