2.5 KW Solar Submersible Pump Support AC Input 90-240v DC Rated Voltage 100-300v

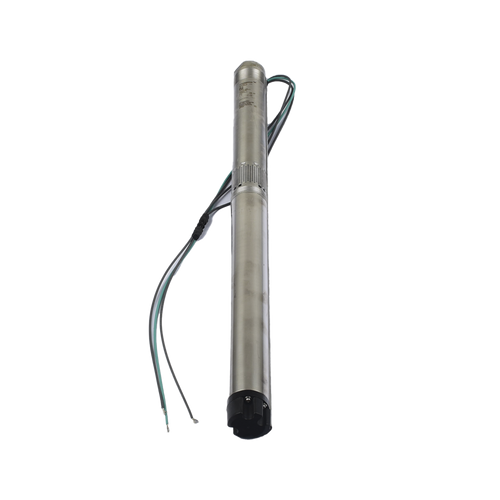

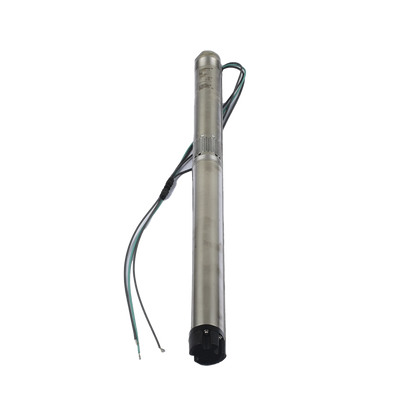

The SQFlex 3 "pump with propeller rotor is indicated for high heights and low flow rates. The SQFlex system is a reliable water supply system based on renewable energy sources & comma; such as solar and wind power. Thanks to its flexible power supply and performance & comma; the SQFlex system can be combined and adapted to meet any needs of the installation site.

The SQFlex system has a wide range of voltage & comma; maximum power point tracking (MPPT)& comma; as well as protection against dry operation & comma; voltage and overload.

Electrical data

Engine type MSF3

Input power-P1 2.5 kW

Rated voltage AC 1x90-240 V

Rated voltage DC 100-300 V

Nominal intensity 12.5 A

Power Factor 1.0

Rated speed 10700 rpm

Direct Start Type

Degree of protection (IEC 34-5) IP68

Insulation class (IEC 85) F

Y Integrated Motor Protection

Protec. Indoor thermal

Cable length 2 m

Engine N.° 99464921

Udc 300 V

100V
