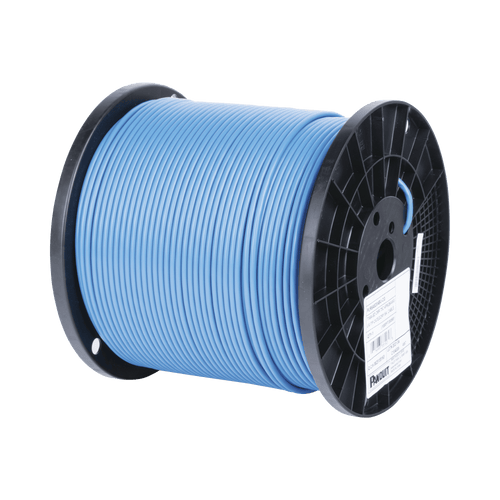

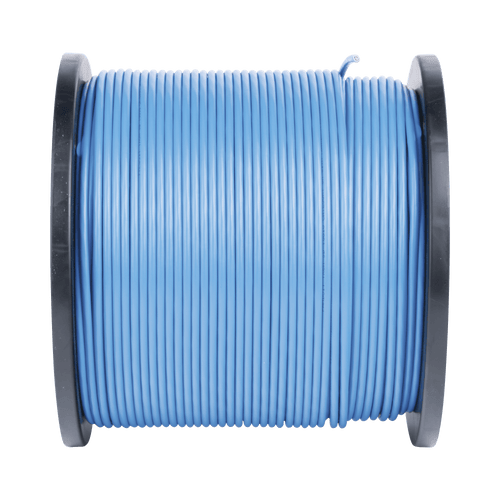

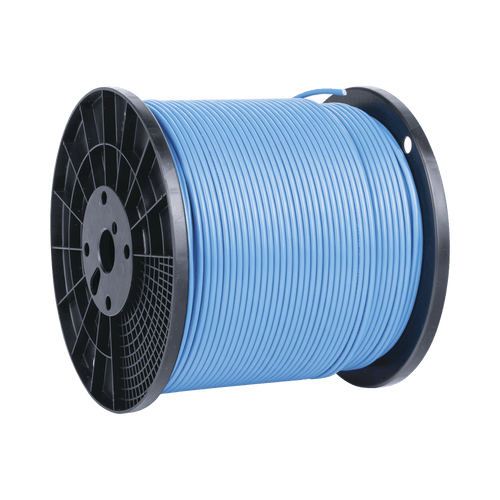

MaTriX 4-Pair UTP Cable Reel, Cat6A Small Diameter, 26 AWG, CMR (Riser), Blue, 305m

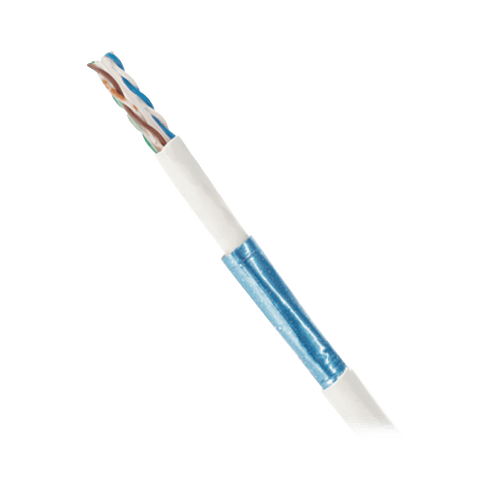

The copper cable is UTP SD (CMR Riser) Category 6A, 4 pairs with 26 AWG construction conductors with flame retardant PVC insulation. The cable is stranded in pairs, separated by a central crossbar, surrounded by a MaTriX tape and protected by a fireproof PVC cover. It is ideal for installations up to 70 meters and is the smallest diameter Category 6A UTP cable on the market at 0.24 (6.1 mm).

Applications:

• High Speed ​​Voice/Data and Video Networks
• IP Megapixel CCTV Installations
• Wireless networks
• Power Over Ethernet IEEE 802.3af and 802.3at Applications
• Applications in 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T

Technical specifications:

• Performance: Exceeds the electrical crosstalk performance requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards to support 10GBASE-T transmission over twisted pair cabling systems in a 4-connector configuration .
• Nominal diameter: 6.1mm
• Conductor: 26 AWG PVC insulated solid copper (CMR)
• Flame Rating: Riser (CMR) UL1666
• PoE Compliance: IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
• Maximum tension: 25 lbf (110 N) maximum
• Installation temperature: 0°C to 60°C
• Operating temperature: -20ºC to 75ºC
