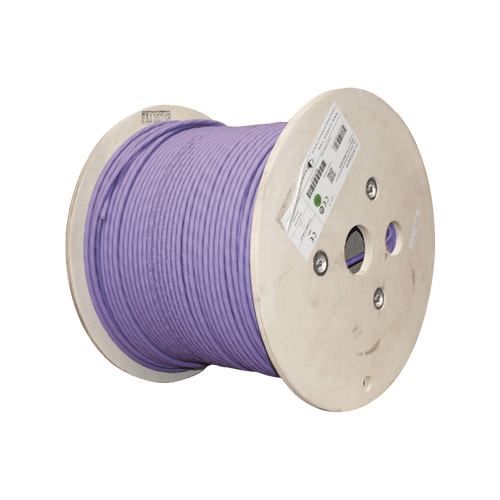

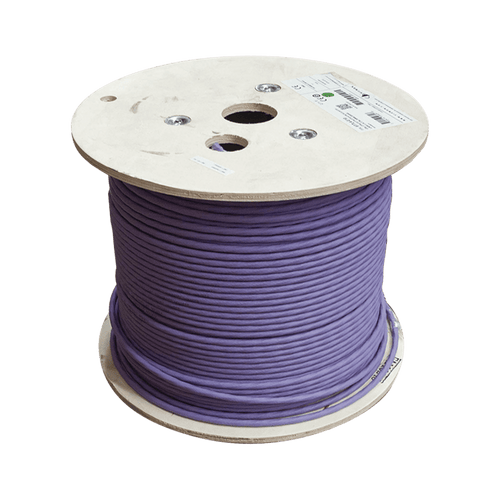

4-Pair S/FTP Shielded Cable Reel, Cat7A, Immune to Noise and Interference, LS0H (Low Smoke, Zero Halogen), Violet Color, 305 m

Siemon's fully shielded end-to-end "TERA" cabling solution, It is the safest, highest performing twisted pair copper wiring system available. The TERA E10 Cable from Siemon S/FTP, It perfectly complements the performance of the TERA Jack and exceeds all ISO/IEC requirements for transmission quality in Category 7A/Class FA.

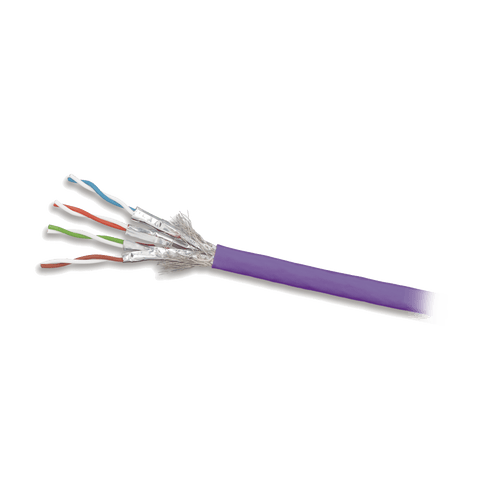

It is a fully shielded cable with individual foils around each pair. along with a braided screen on the outside that gives us perfect coverage and provides immunity from external interference. Also, The cable jacket is rated to be able to work in high temperature environments, up to 75°C. In remote power (PoE) application environments, This cable can be installed in environments up to 60°C and not experience degradation due to increased heat inside the cable.

Siemon cable is ideal for ensuring optimal channel performance and is essential for a guaranteed complete end-to-end solution.

Applications:

• High Speed ​​Voice/Data and Video Networks
• IP Megapixel CCTV Installations
• Wireless networks
• Power Over Ethernet IEEE 802.3af and 802.3at Applications
• Applications in 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T

Technical information:

• Performance: Certified up to 100 meters
• Color: Violet
• Conductor: 23 AWG solid copper
• Coating: LS0H and shielded pairs with aluminum and polyester
• Construction: S/FTP
• Maximum tension: 110N
• Temperature classification: 0 to 60°C in installation. -20 to 75°C in storage and -20 to 75°C in operation.
• Frequency: 1000MHz

  For Cat6A links:
• Recommended Plug: ZP1-6AS-00S, ZP1-6AS-01S
• Plug Tool: ZTOOL-ZP


• For Cat7A links:
• Recommended Plug: T7P4B011
• Plug Tool: CPT-T
