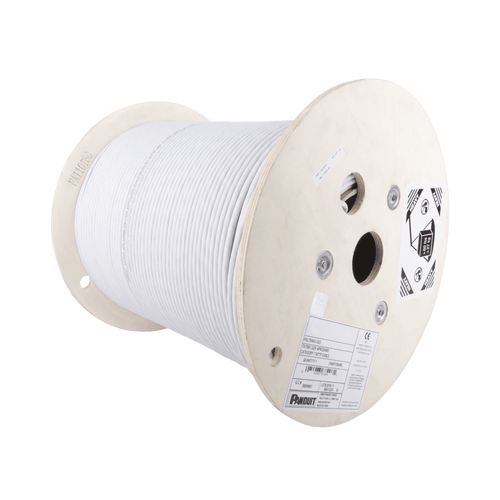

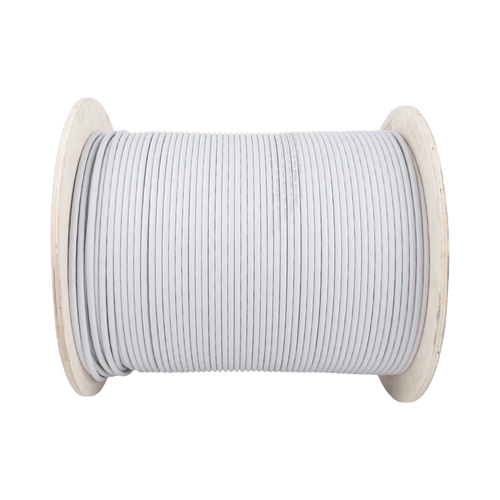

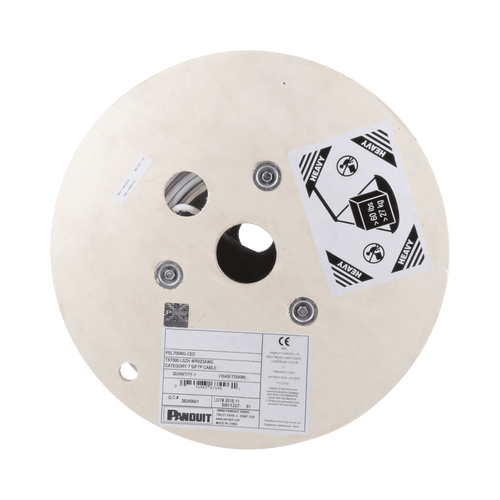

4 Pair S/FTP Shielded Cable Reel, Cat7, Immune to Noise and Interference, LSZH (Low Smoke, Zero Halogens), Gray Color, 500 m Reel

  • b43abb0e62e92723fe1167f21cea62a0
  • a061d45c9571d475ce4dbd0bad699ae9
  • 652bcb54cb0617767703135ecf429f6c
1 3
  • Compatible con estándar IEC 61156-5 clase F
  • Cobre sólido de 23 AWG para alta conductividad
  • Blindaje trenzado para máxima protección electromagnética
  • LSZH: bajo humo, cero halógenos, mayor seguridad
  • Rendimiento certificado hasta 100 metros a 600 MHz

Low stock: 3 left

Modelo: PSL7004IG-CED

Proveedor: PANDUIT

Código SAT: 26121616

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Panduit Category 7 cable meets the IEC 61156-5 Class F component standard. Conductors shall have 23 AWG construction with expanded skin PE insulation. The copper conductors are twisted in pairs, each covered by aluminum shielding within an overall braided shield and a low smoke zero halogen (LSZH) jacket.

Applications:

  • High Speed ​​Voice/Data and Video Networks
  • IP Megapixel CCTV Installations
  • Wireless networks
  • Power Over Ethernet IEEE 802.3af and 802.3at Applications
  • Applications in 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T

Technical information:

  • Performance: Certified up to 100 meters
  • Gray
  • Nominal diameter: 7.2mm
  • Conductor: 23 AWG solid copper
  • Coating: LSZH and shielded pairs with aluminum and polyester
  • Construction: S/FTP
  • Maximum tension: 110N
  • Temperature rating: 0 to 50°C in installation and -20 to 75°C in operation.
  • Frequency: 600MHz
