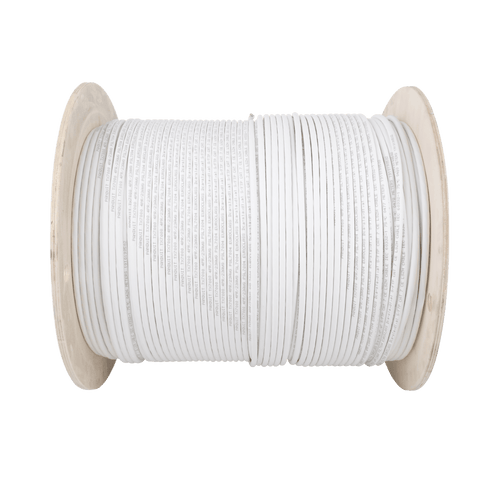

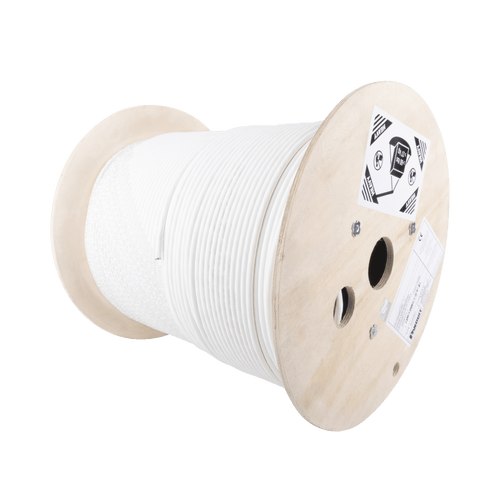

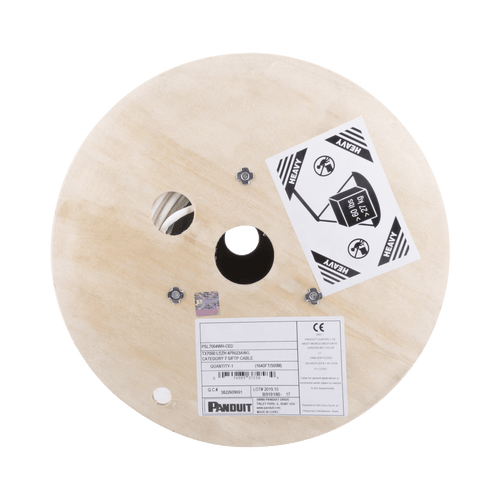

4-Pair S/FTP Shielded Cable Reel, Cat7, Immune to Noise and Interference, LSZH (Low Smoke, Zero Halogen), White, 500 m Reel

  • 8337b1d43cd8137672d59190e8a97cdb
  • 2841fab0a13ffa7c0d52d194d0f2bdfb
  • 4ac80e141b78e16b44c9669794331251
  • c6ebe756b271dab27851cfb717c45e0f
1 4
  • Cumple con IEC 61156-5 Clase F
  • Conductores de 23 AWG con aislamiento PE
  • Blindaje de aluminio y poliéster S/FTP
  • Rendimiento certificado hasta 100 metros
  • Frecuencia operativa hasta 600 MHz

55 in stock

Modelo: PSL7004WH-CED

Proveedor: PANDUIT

Código SAT: 26121616

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

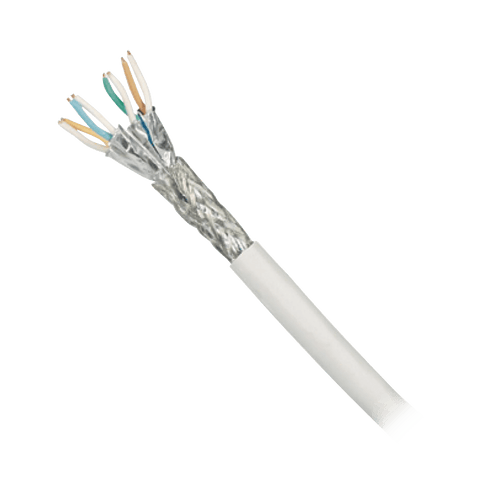

Panduit Category 7 cable meets the IEC 61156-5 Class F component standard. Conductors shall have 23 AWG construction with expanded skin PE insulation. The copper conductors are twisted in pairs, each covered by aluminum shielding within an overall braided shield and a low smoke zero halogen (LSZH) jacket.

Applications:

  • High Speed ​​Voice/Data and Video Networks
  • IP Megapixel CCTV Installations
  • Wireless networks
  • Power Over Ethernet IEEE 802.3af and 802.3at Applications
  • Applications in 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T

Technical information:

  • Performance: Certified up to 100 meters
  • White color
  • Nominal diameter: 7.2mm
  • Conductor: 23 AWG solid copper
  • Coating: LSZH and shielded pairs with aluminum and polyester
  • Construction: S/FTP
  • Maximum tension: 110N
  • Temperature rating: 0 to 50°C in installation and -20 to 75°C in operation.
  • Frequency: 600MHz
