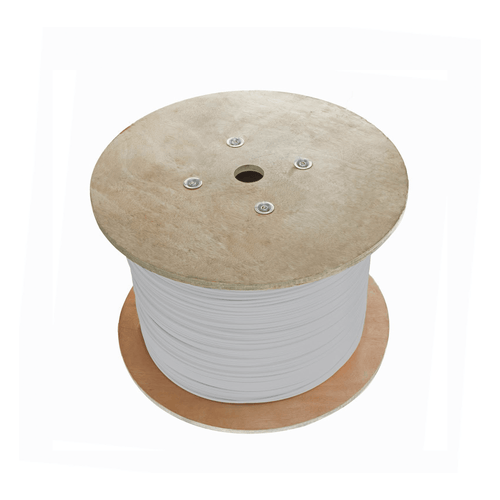

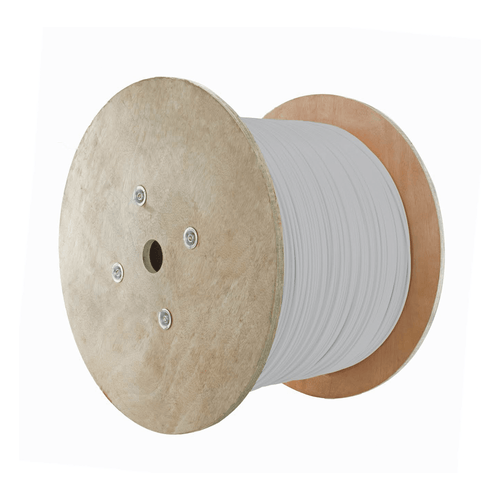

4 Pair F/UTP Shielded Cable Reel, Z-MAX, Cat6A, 10GBase-T Application Support, CM, White, 305m

Siemon's Category 6A F/UTP cable has channel performance exceeding the minimum requirements of ANSI/TIA-568-C2 and ISO/IEC 11801 Class EA standards. When combined with our armored category 6A connectivity series, The result is a channel with the capacity to transfer 10GBASE-T up to 100 meters, with four connector topology.

Also, The shield construction ensures that external crosstalk is virtually zero.

F/UTP Category 6A cabling system supports emerging and convergent applications such as voice over IP (VoIP), IP video, and future 10Gbps applications.

Applications:

• High Speed ​​Voice/Data and Video Networks
• IP Megapixel CCTV Installations
• Wireless networks
• Power Over Ethernet IEEE 802.3af and 802.3at Applications
• Applications in 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T

Technical information:

• Performance: Certified up to 100 meters
• White color
• Conductor: 23 AWG solid copper
• Coating: PVC (CM)
• Construction: F/UTP
• Maximum tension: 110N
• Temperature classification: 0 to 60°C in installation. -20 to 75°C in storage and -20 to 75°C in operation.
• Frequency: 500MHz
• Recommended Plug: ZP1-6AS-00S, ZP1-6AS-01S
• Plug Tool: ZTOOL-ZP
