DC BLOCKER 250-6000MHz 500W/3kV -161dBc 4.3-10 IP65.

DC BLOCKER 250-6000MHZ 500W/3KV -161DBC 4.3-10 IP65.

Description

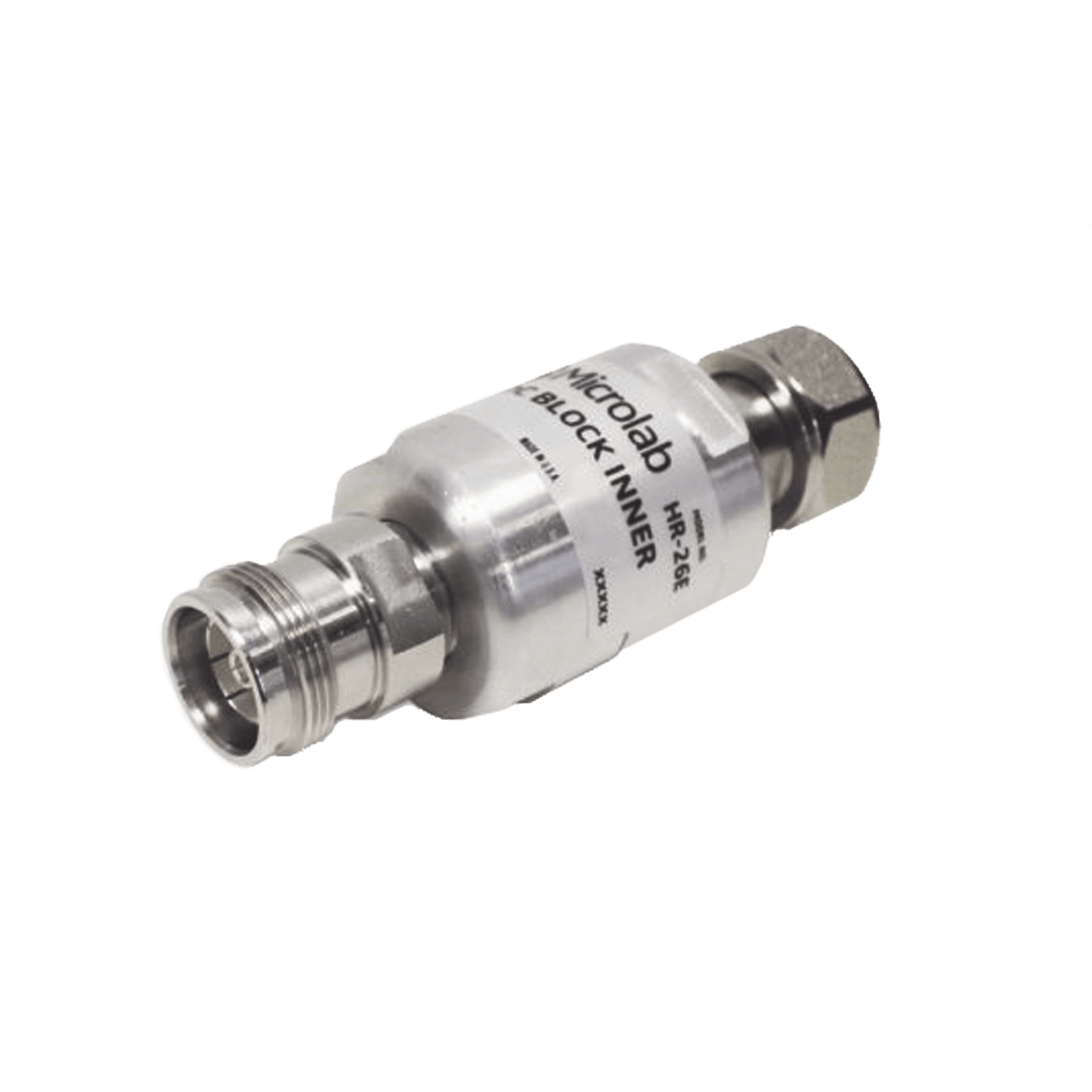

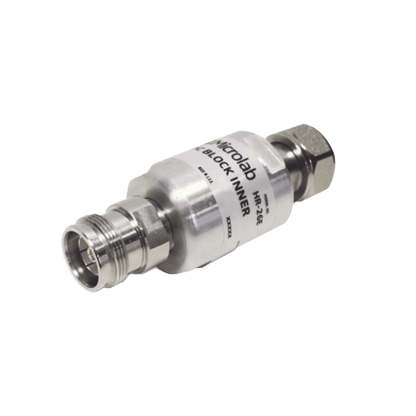

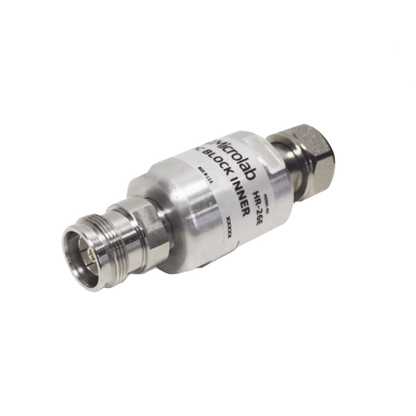

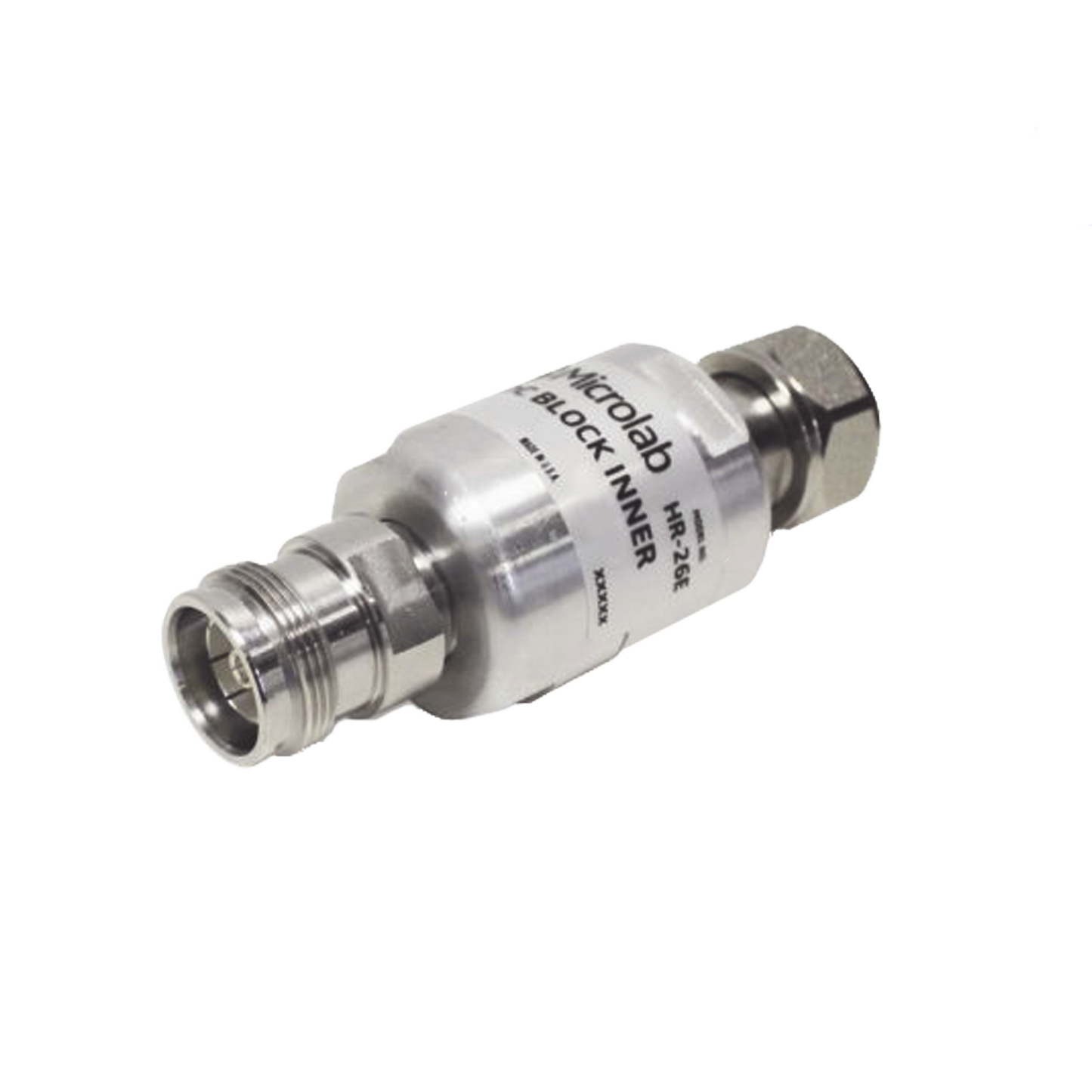

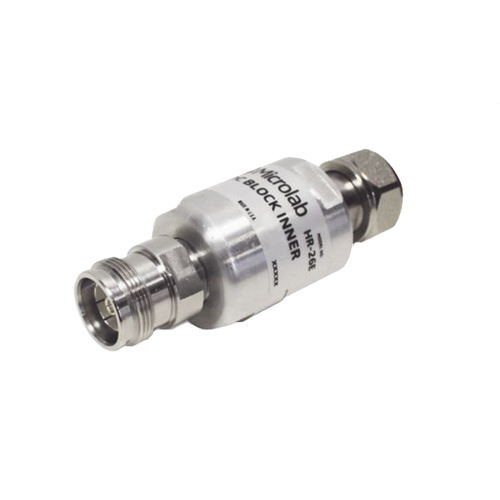

The Microlab HR-26E DC Block is used to prevent the flow of direct current and low frequency current spikes along the inner conductor of a coaxial cable, while allowing the unimpeded flow of RF signals. Applications include blocking current spikes in underground tunnels and antenna sites during thunderstorms. The ultra-wide frequency range allows use in LTE-LAA deployments with multi-band antennas.
The unit consists of a length of coaxial line with a series capacitor in the center conductor to block the flow of DC and low frequencies, while passing RF with negligible losses or reflections.

Characteristics

• Ultra Wideband CC Block for LTE-LAA
• 500W average rated power
• Guaranteed low PIM
• Minimum RF Insertion Loss
• 3 kV high voltage rating
• IP65 rating
• RoHS
• 4.3-10 connectors

Specifications
