DC BLOCKER 250-2700MHz 500W/3kV -164dBc N TYPE IP65.

DC BLOCKER 250-2700MHZ 500W/3KV -164DBC N TYPE IP65.

Description

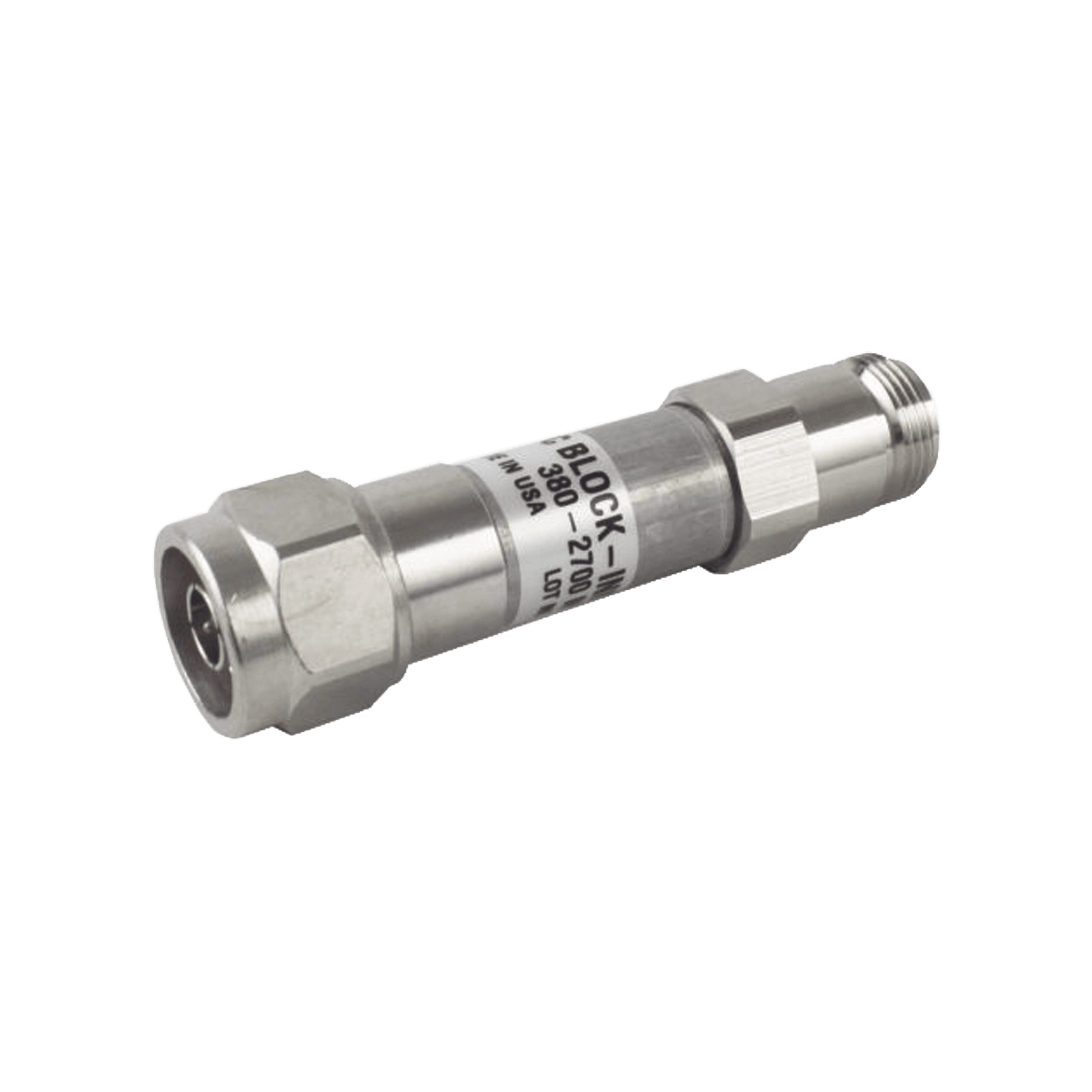

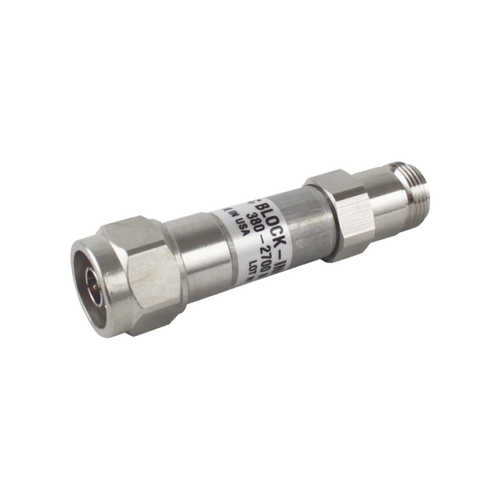

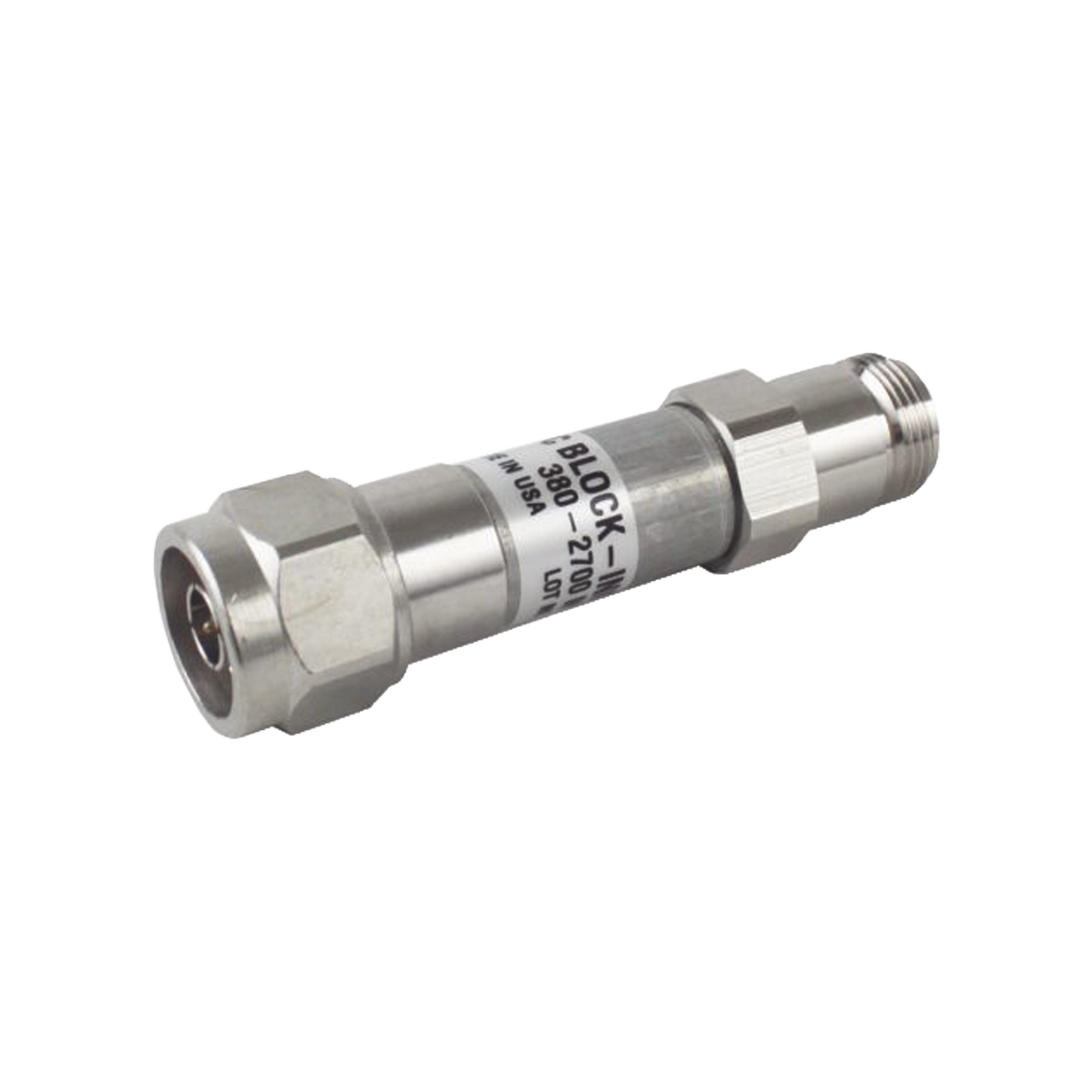

Microlab HR-20 series DC blocks are used to prevent the flow of direct current and low frequency spike currents along the inner conductor of a transmission line, while allowing the unimpeded flow of RF signals. Applications include blocking current spikes in underground tunnels, at antenna sites during thunderstorms and for routing DC to tower-mounted amplifiers.

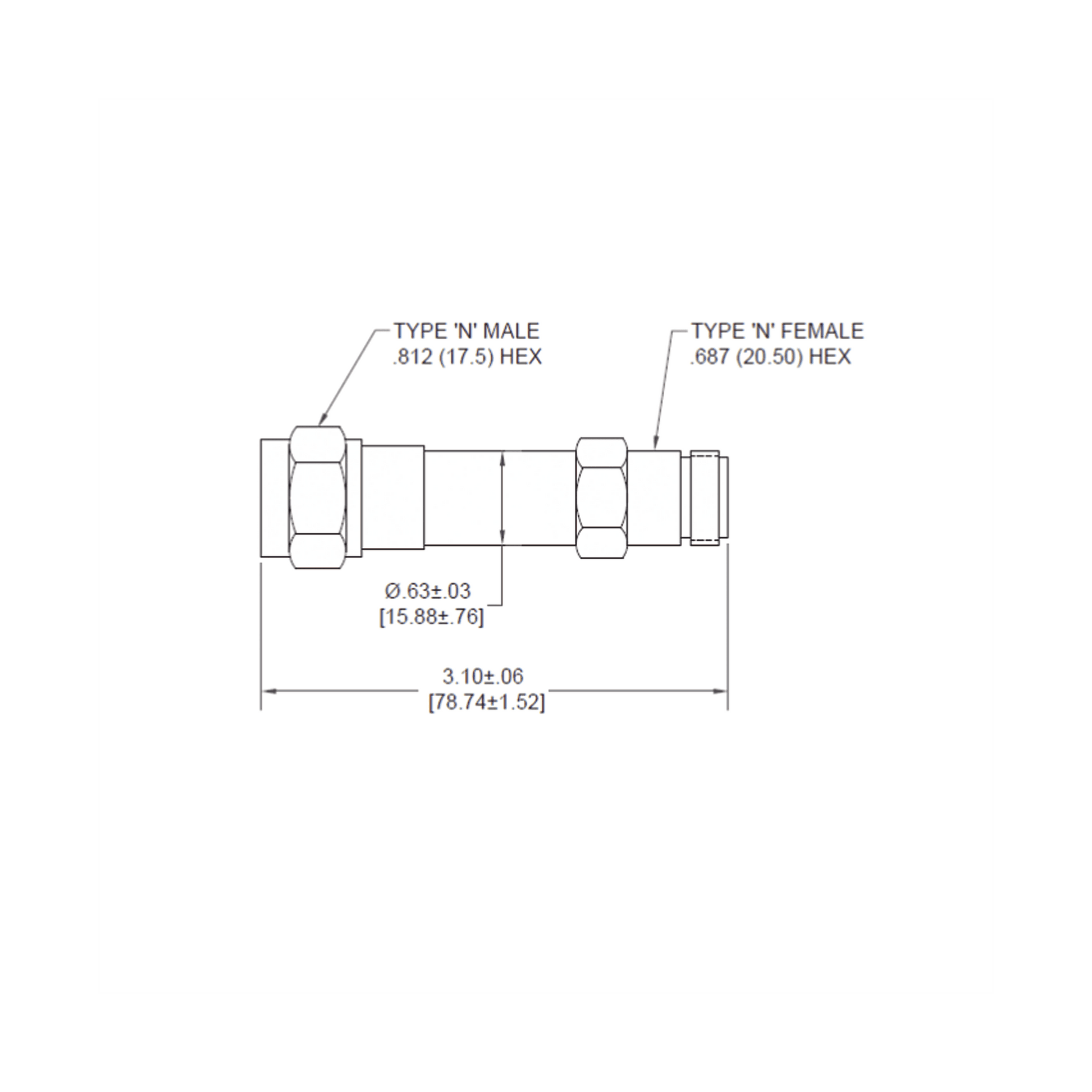

The unit consists of a length of coaxial line with a series capacitor distributed in the center conductor to block the flow of DC and low frequencies, while passing RF with negligible losses or reflections.

Characteristics

• Multiband coverage
• 500W average rated power
• 3 kV high voltage rating
• Minimum RF Insertion Loss
• Very low passive MI
• RoHS
• High reliability
• DIN connectors No. or 7-16 mm

Specifications
