(BaseBox 6) Access Point and Connected Client at 6 GHz, Features a MiniPCIe Slot for an Extra Wireless Card

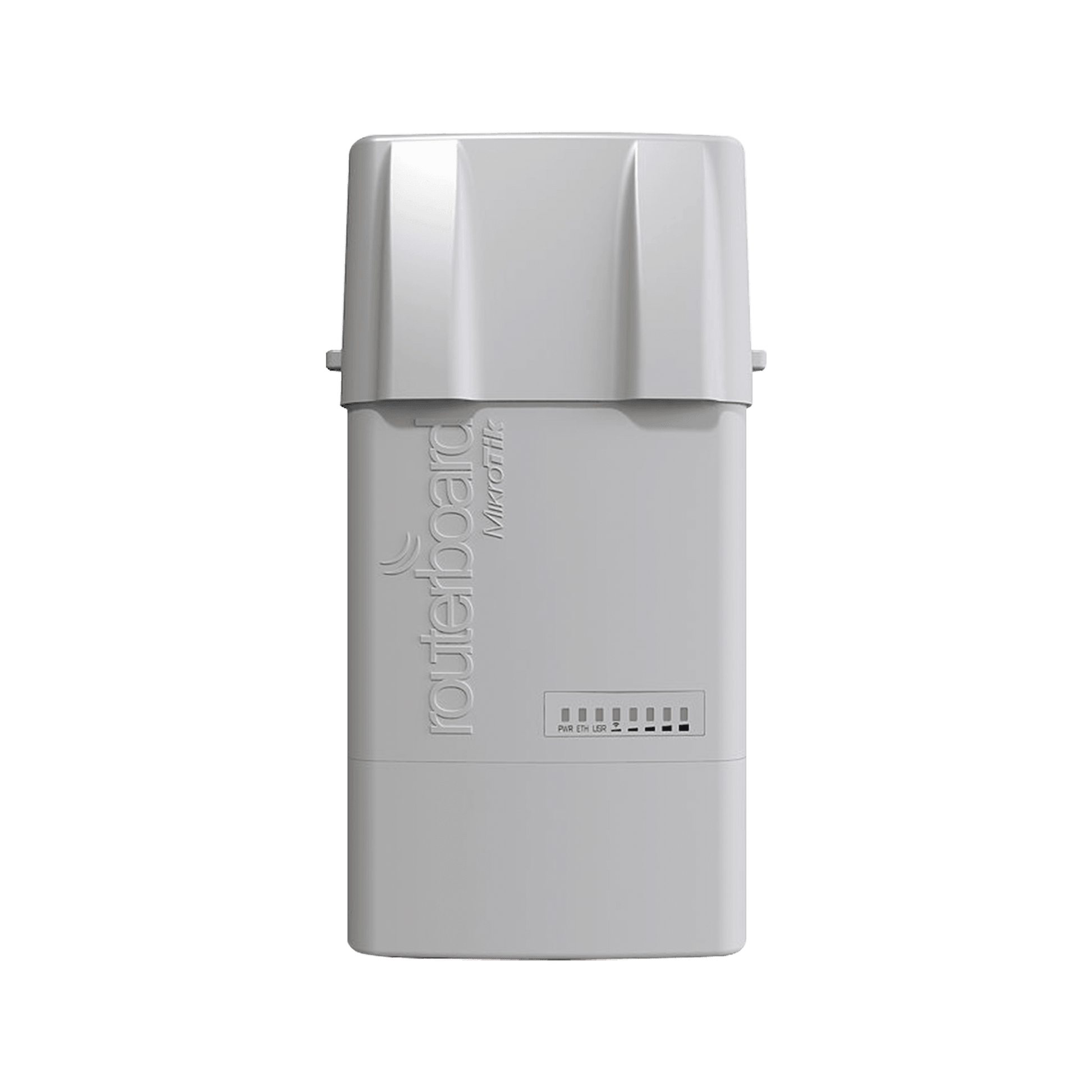

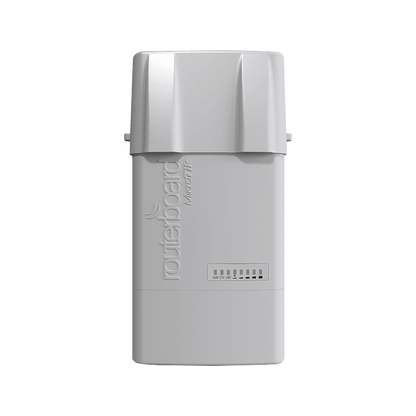

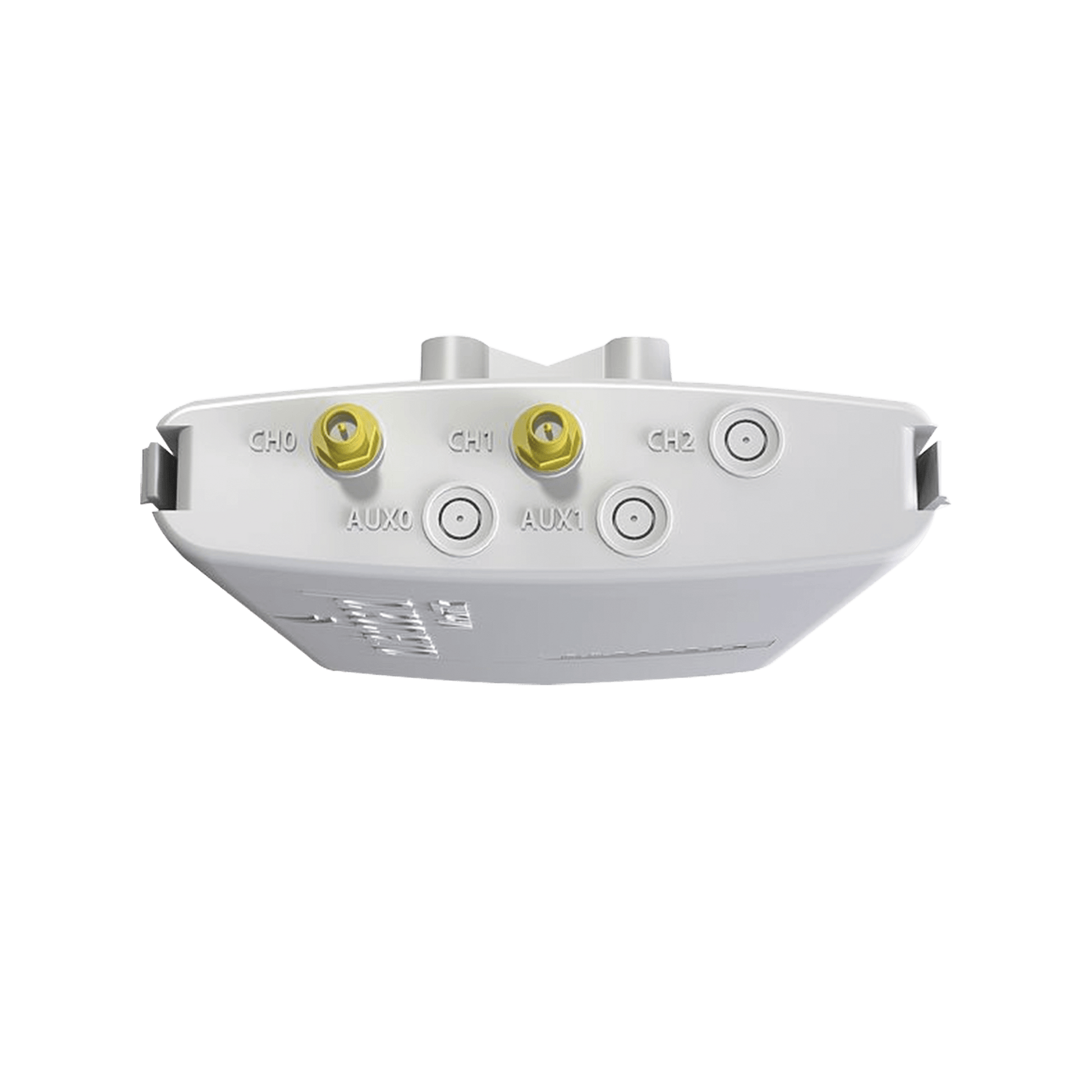

The BaseBox 6 in a wireless outdoor device, based on our popular MODEL RB912, equipped with two SMA connectors for connecting external antennas, It has a cover or cap to protect the connectors from moisture. It also has additional preparation for antenna connectors, in case you want to use the BasePox miniPCIe slot for an extra wireless interface, to create a dual band device or 3G/4G modem.
This equipment is designed for use as a 6 GHz AP with our 6 GHz CPEs, such as DynaDish 6 and SXT 6.
This product is not suitable for license-free ISM bands. Use of the device is subject to country regulations.


Ethernet test results
| RB912UAG-6HPnD-OUT | AR9342 1G 1 port test | ||||||
| Way | Setting | 1518 byte | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
Accessories included:
