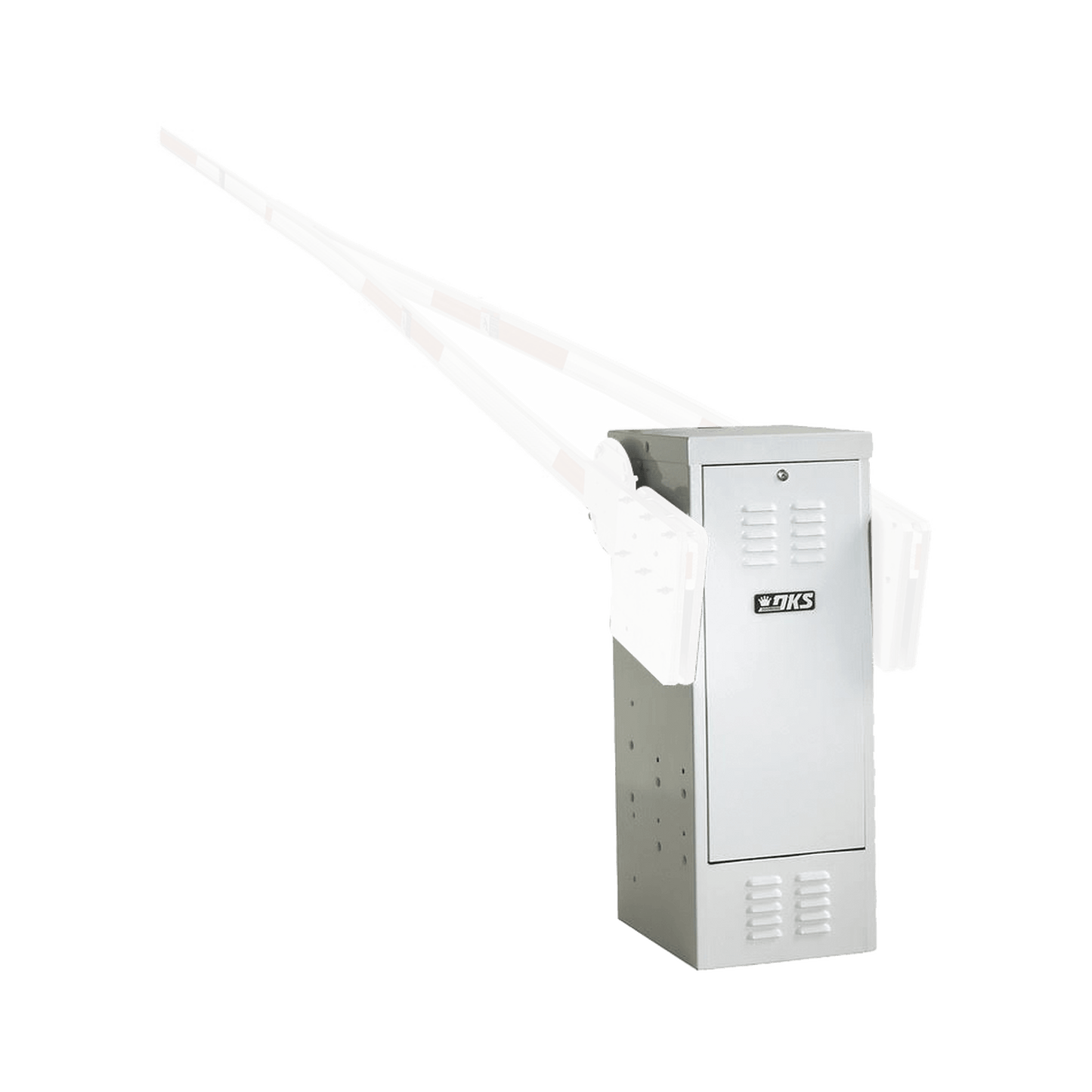

Vehicle Barrier / Mast Option up to 8 Meters / 1HP Motor / 115v Intensive Continuous Use / 5 Years Warranty

  • f6264c7d26f7d3b7cc0e076d2af2a8a6
  • 6c99ec038c8edd22eaa3289f34588d25
  • 1f8b27cb0b4e3777584f95742c495af1
  • 8c16830d91de7a223a645837927af5d4
  • 86a5decf72cf5cbaf4bc8eb2eaa904bd
  • 6ae935f86845c05e12ccfc5d18c9b16d
  • 978ae1466143eee734bb6e7e61484749
  • 2efb27a37b9ebcf03b46ed57e911a77b
  • ac64e97875a77e3a97ae9901e96c1fc0
1 9
  • 5 year warranty

Low stock: 8 left

Modelo: 1602-090

Proveedor: DKS DOORKING

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Continuous use barrier with 1 Hp motor
  • Supports arm up to 8 meters
  • Operation class II, III and IV (According to UL 325)
Physical and Electrical Characteristics:
  • Power supply 115 Vac
  • Dimensions: 387.35 x 1105 x 394 mm
  • Current consumption of 5.4 Amp.
Featured Features:
  • 5 years warranty against manufacturing defects.
  • Integrated on/off switch.
  • Left or right barrier configurable in the field. .

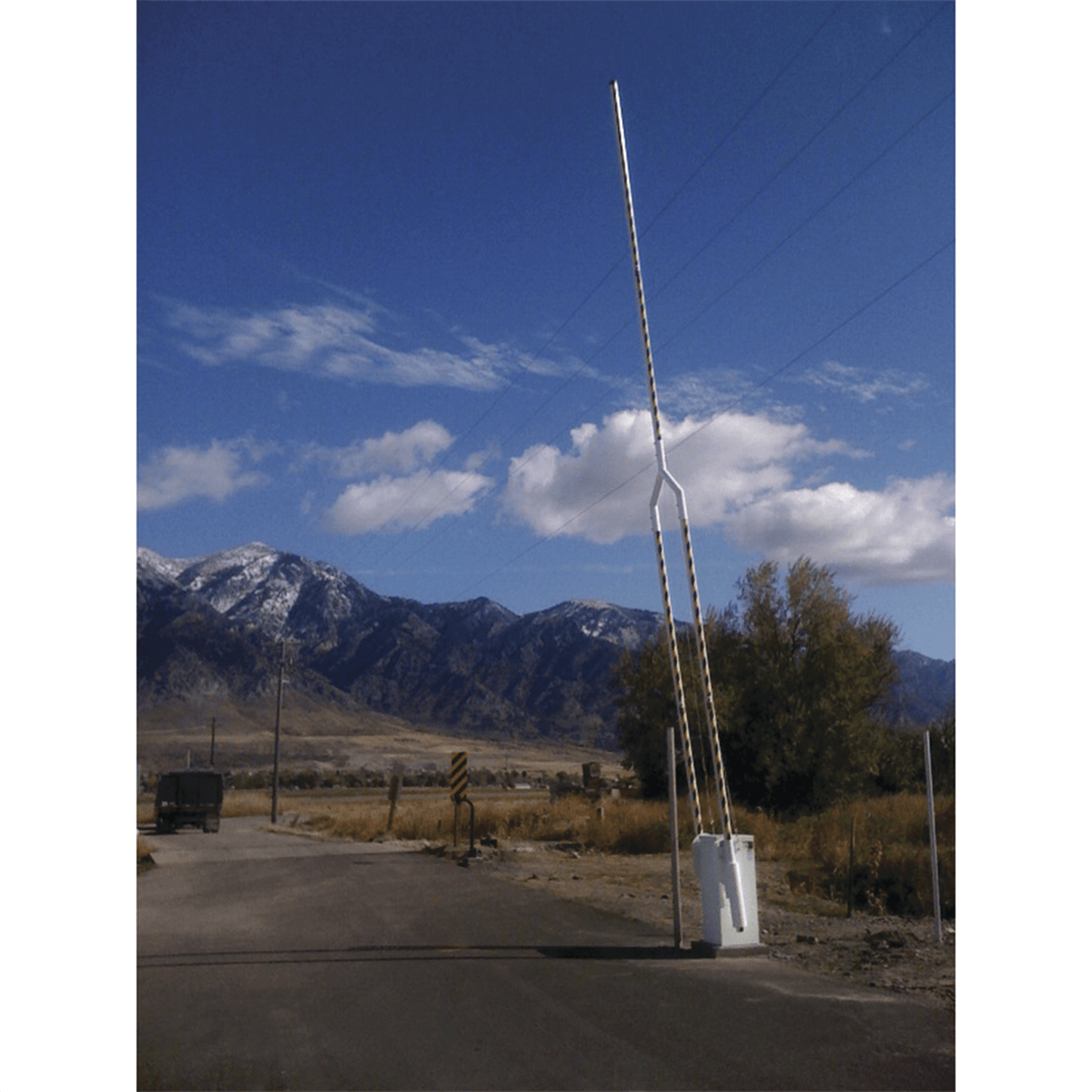

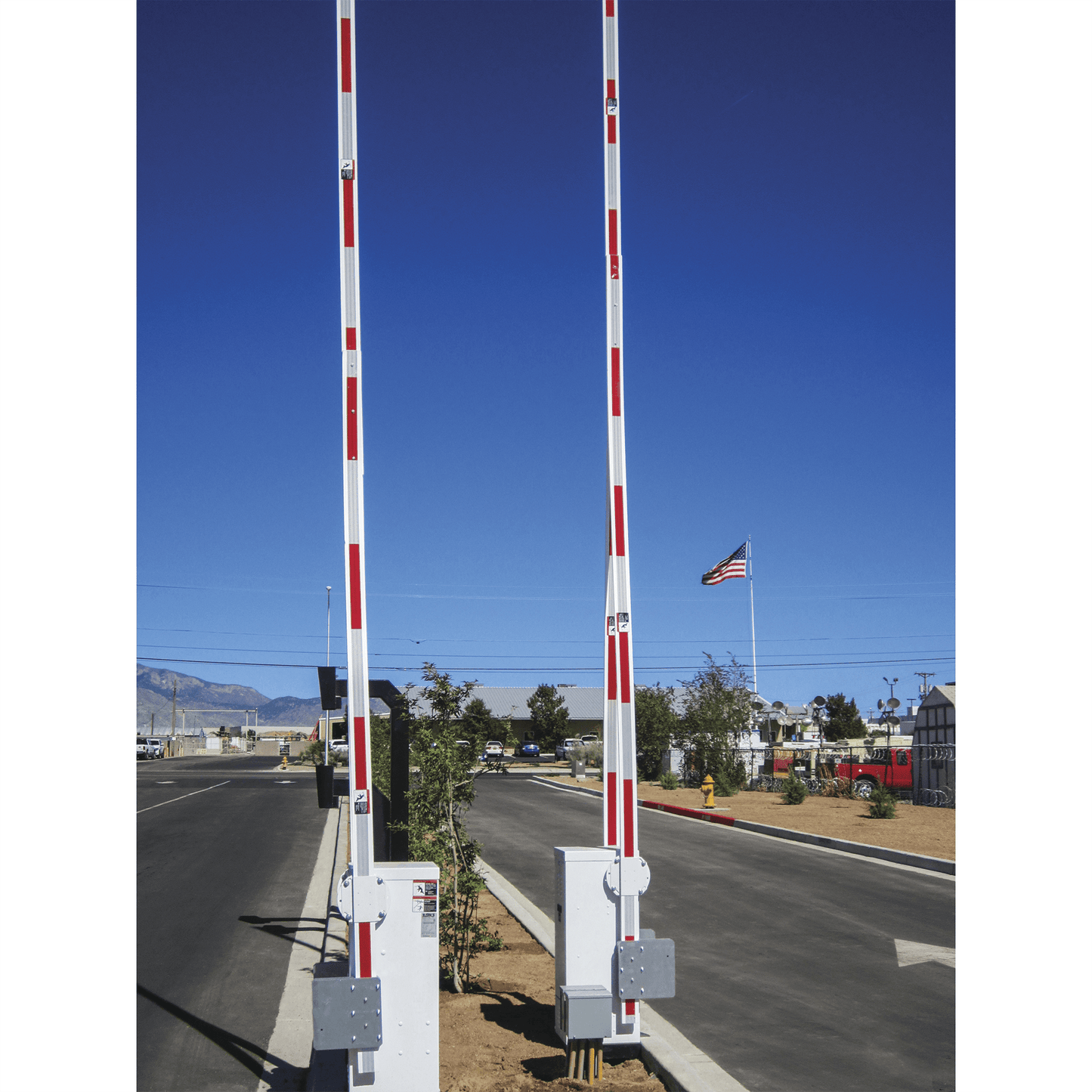

Vehicle barrier for continuous use compatible with an arm of up to 8 meters.

Model 1602-090 contains:

  • Continuous use barrier with 1 HP motor.
  • White plastic mast cover.

Additional characteristics:

  • Magnetic limit programming
  • Two built-in mass sensor ports
  • Programmable automatic closing
  • Two built-in voltage outputs for connecting accessories.
  • 1 Hp motor for continuous use.
  • White or Red/Green illuminated arm options (Purchased separately)

Additional notes:

  • The arm is purchased separately
  • 5 years warranty against manufacturing defects.

What additional components should you price to build a complete system?

Step 1 Choose a mast according to the width of the rail.

20ft (6.09m) Red / Green Illuminated Aluminum Octagonal Arm 1602-282 , Requires a 20ft 1602-292 LED strip.

24ft (7.31m) Red / Green Illuminated Aluminum Octagonal Arm 1602-284, Requires a 24ft 1602-294 LED strip.

27ft (8.23m) Red / Green Illuminated Aluminum Octagonal Arm 1602-287 , Requires a 27ft 1602-297 LED strip.

20ft (6.09m) Non-Illuminated Aluminum Round Arm 1602-162

24ft (7.31m) Non-Illuminated Aluminum Round Arm 1602-164

27ft (8.23m) Non-Illuminated Aluminum Round Arm 1602-166

20ft (6.09 m) wooden arm 1602-340, requires installation kit 1602-041.

Step 2 Choose optional elements

Original mass sensor DKS 9410-010 , requires SYSLM8 magnetic loop

Heavy-duty triple keypad for vehicular access applications XBSSW01

Security laser for vehicular access applications 10LZR-H100-KIT19327

Doorking 1603-222 traffic light for barriers

Additional Notes and Recommendations

  • All components and accessories sold separately.

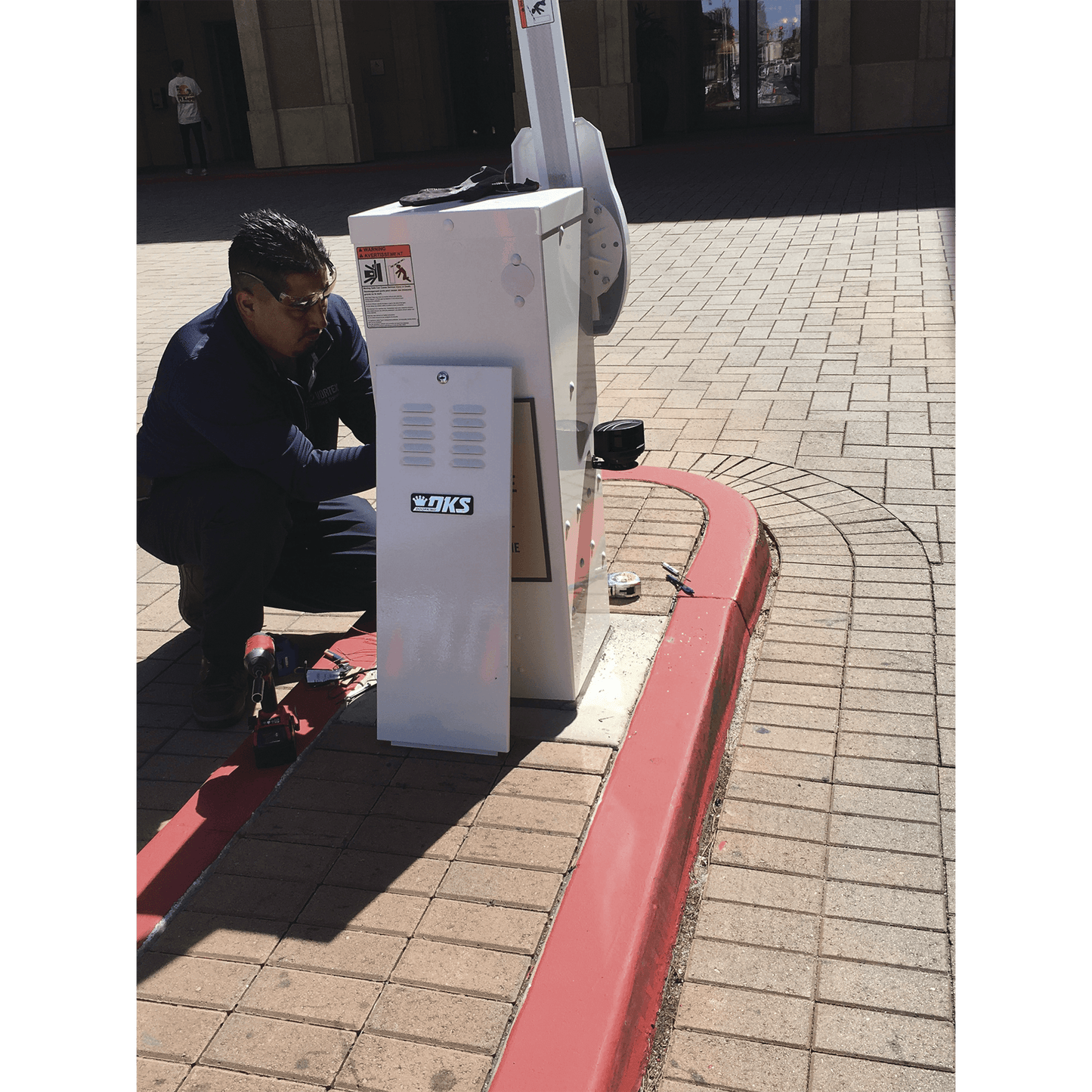

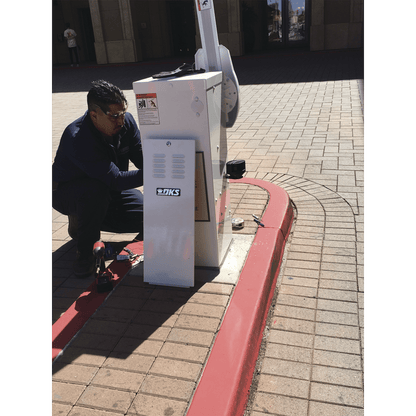

  • Vehicular access devices require installation by certified personnel.
  • The 5-year warranty applies to model 1601-080.
  • The warranty specifically covers damage and/or malfunction resulting from a manufacturing defect in the product.
  • Any damage caused by improper operation or installation, invalidates the product warranty policy.
  • Compliance with UL325 requires the use of additional safety devices. For more information you can consult the following link UL 325 Safety Standard
  • In order to ensure better protection against electric shock, It is necessary to connect a Physical Ground line to the designated terminals on the vehicle barrier, as well as adding a line protection device against electric shocks.

NOTE: Consider XB-POST armrests on arms 4 m or longer to avoid premature damage to the mechanism.
