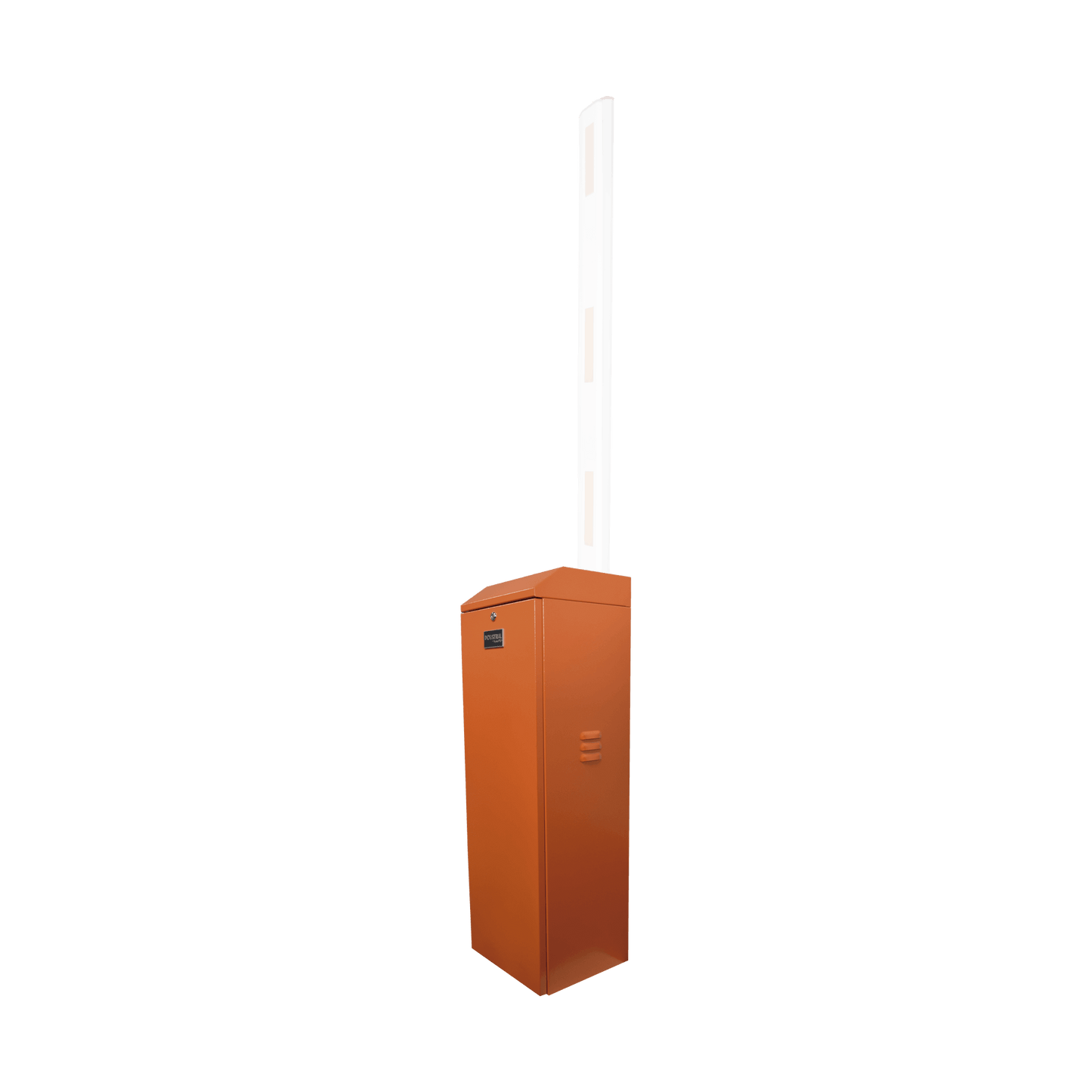

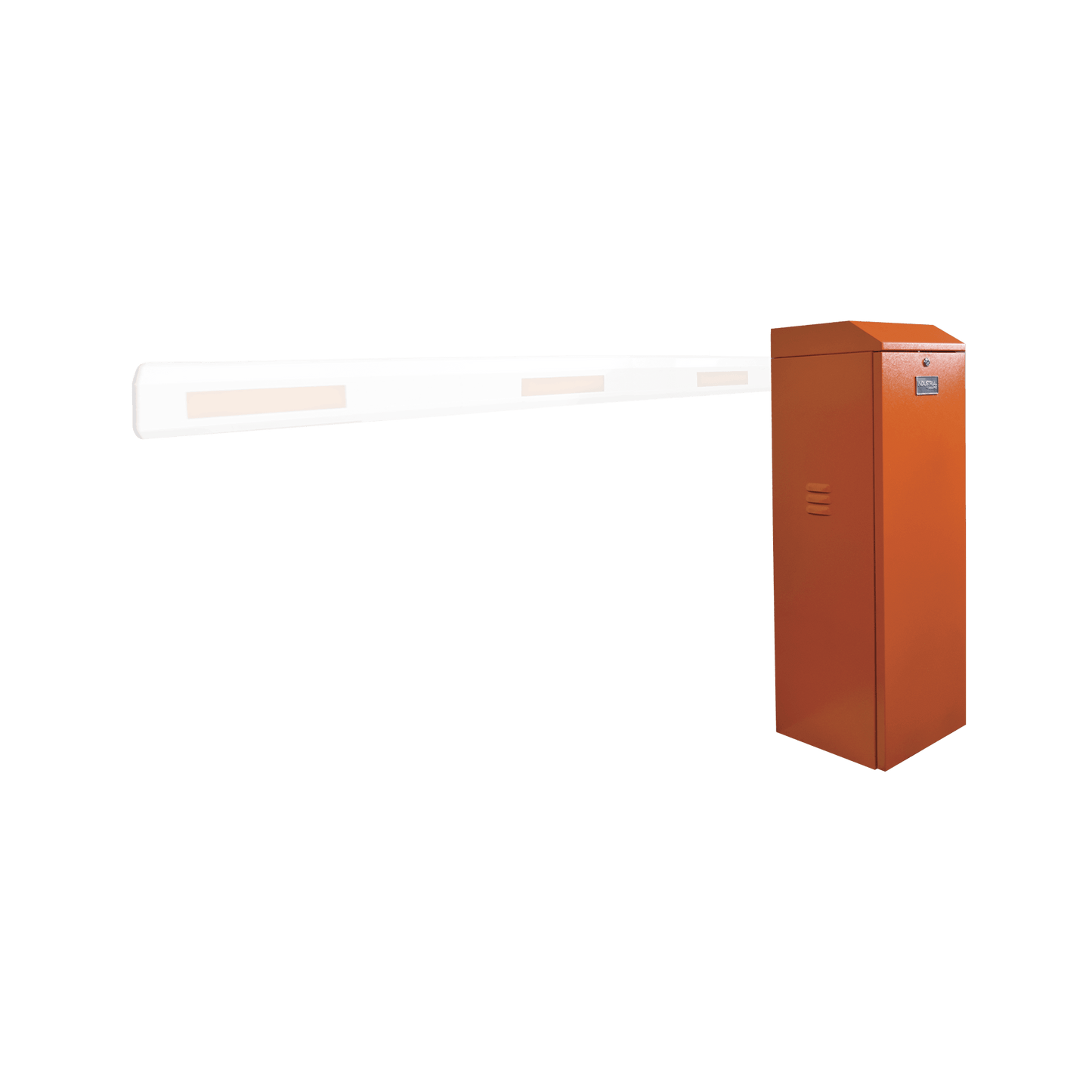

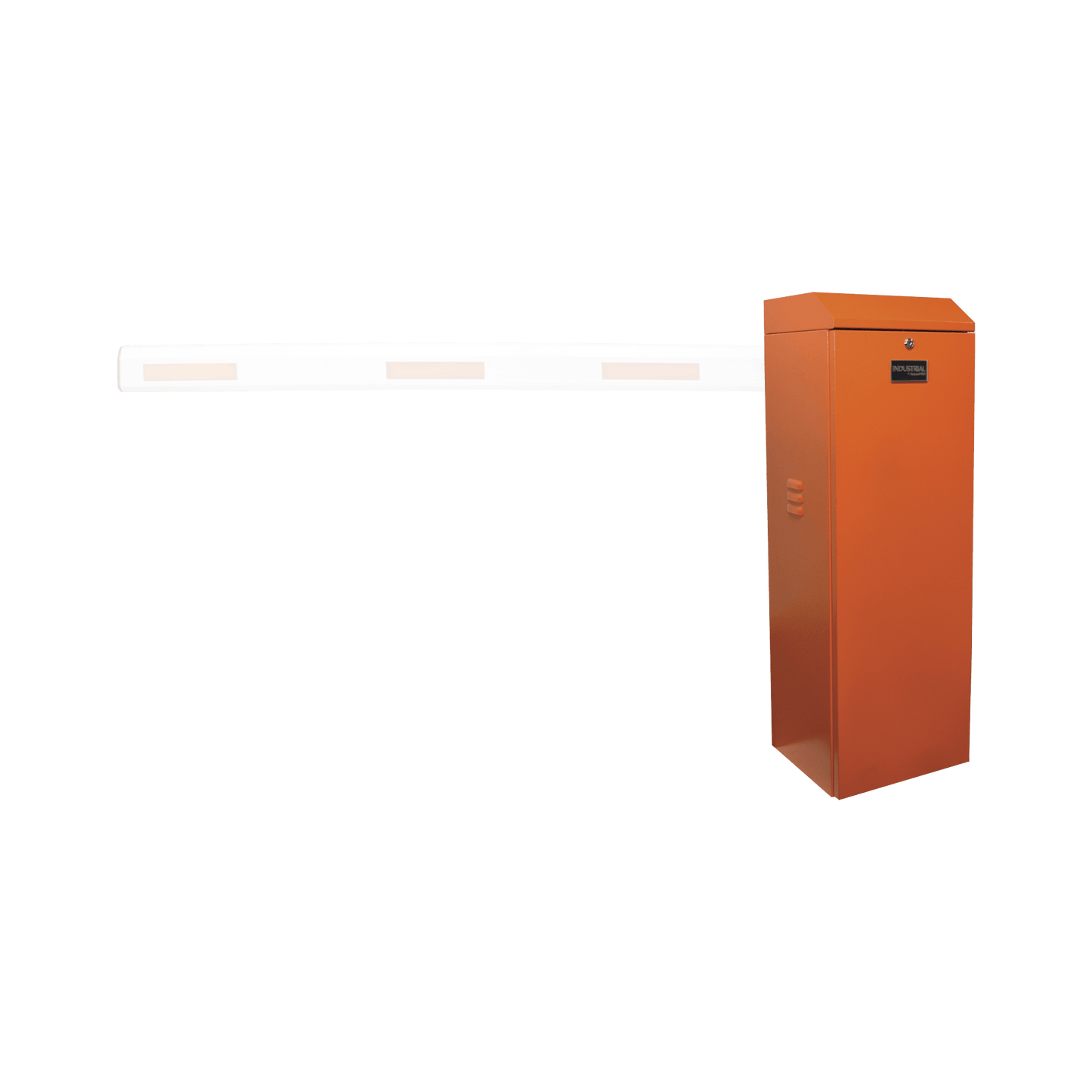

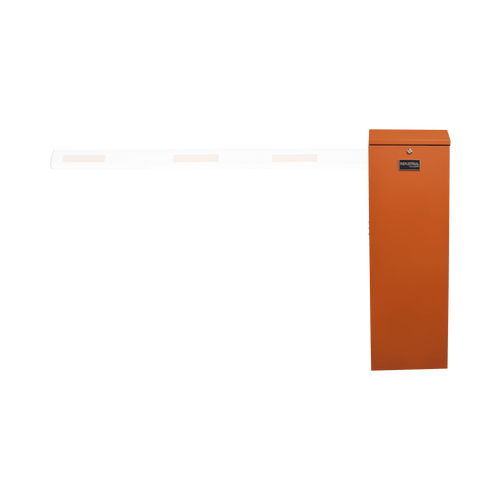

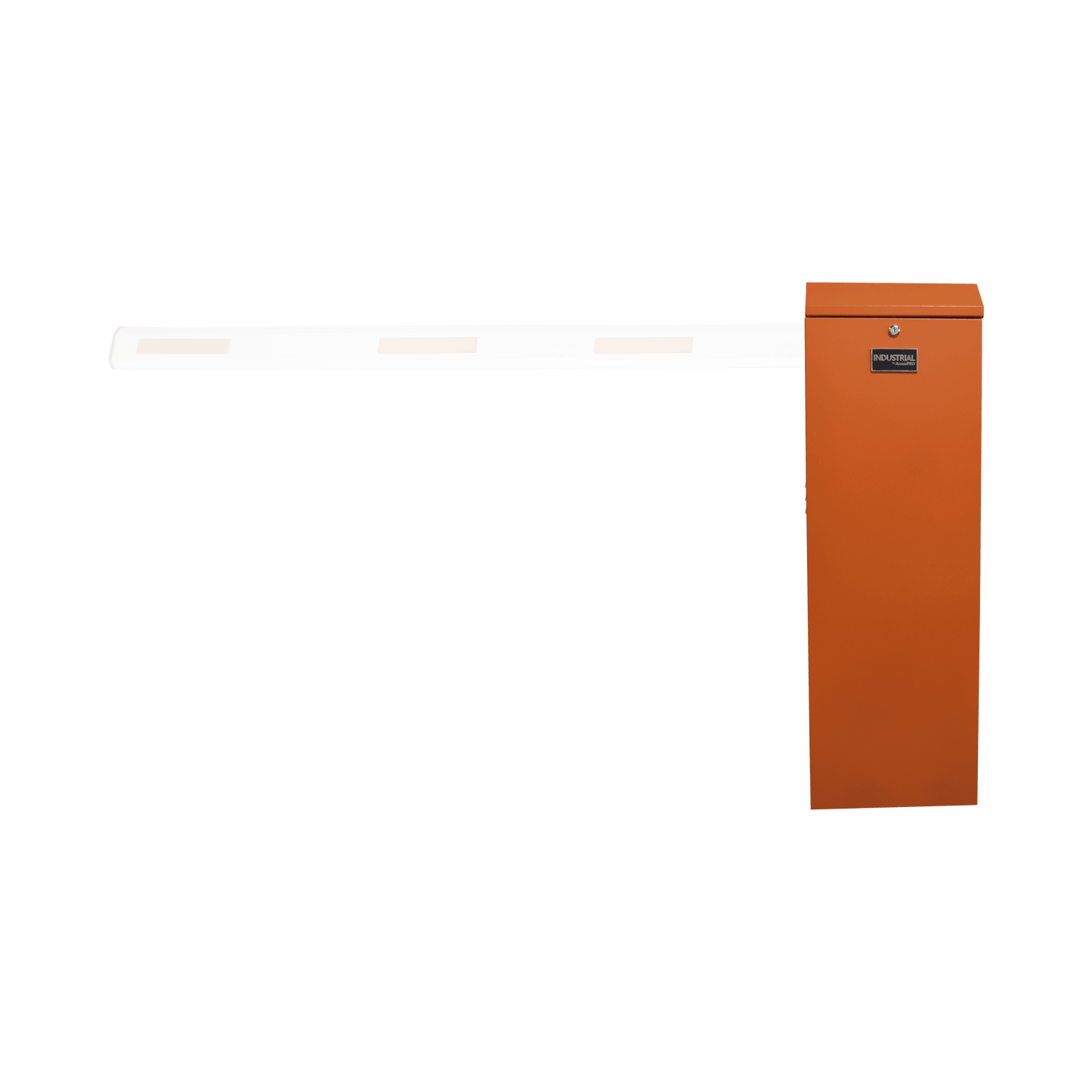

Left vehicle barrier / Supports arm up to 3 m / Opening in 1.5 s / Limit switch adjustable by programming / Fluid movement / Elegant orange design

  • 0453a48648578246ddd38b9eb35d618b
  • d5910e124ac26d31466f05a25b562ffc
  • 6ca776fa39b13ab0a0f153fc8a7dd765
  • 66485ad396be0ce3697d44b066065666
  • 880708c725753f2e07bcc315ac8dcc70
  • 79432f62f5dc335ba5d6dbcc9ccf5dd2
1 6
  • 3 years direct warranty on SYSCOM

Out of stock

Modelo: XBF-3000-LN

Proveedor: ACCESSPRO

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • Maximum arm length 3 meters
  • Cabinet Color: Orange
  • Opening speed 1.5 seconds
  • With encoder for limit programming
Physical and Electrical Characteristics:
  • 250W consumption
  • Standby consumption 2W
  • Semi-Intensive Use
  • Operating voltage 110V
Additional characteristics:
  • Operating temperature -20 to 50°C.
  • Relative humidity of <90%.
  • Includes 2 XBT23 controls (Supports a maximum of 5 controls by adding a single button).

Orange left vehicle barrier&comma; compatible with arm up to 3 meters (Not included)

Additional characteristics:

  • 3-year warranty against manufacturing defects
  • Equipment assembled in Mexico
  • Limit programming via electronic card
  • Programmable automatic closing according to need
  • Supports illuminated arm up to 3 meters.
  • Operation up to 150 cycles per hour .

AccessPRO's XBF-3000 barriers include a mechanism equipped with an encoder that allows the controller card to electronically adjust the limit switches&comma; achieving a smoother and more accurate movement when opening and closing.

What accessories do I need to add for an installation?

First step: Selection of the arm according to the application.

XBF-ARM Straight arm without illumination of 3 meters, compatible with XBA-DROP-ARM chilling system

XBF-ARM-LED 3 meter arm with Red/Green lighting&comma; requires additional power supply PS-12-DC-4C

Second step: Security and fixing accessories.

XB-ANCLA Fixing anchor for AccessPRO barriers

XBS-SW-01 Heavy-duty triple button panel for barriers and motors.

XBS-IR33 Infrared security photocell with range of up to 10 meters

XBS-SLDET Single channel mass sensor&comma; requires RT-2450-L source and a SYS-LM6 or SYS-LM4 magnetic loop

XBS-RDA06 AccessPRO barrier radar with range of up to 6 meters.

XB-REC2 Wireless receiver for 400 controls (adding one button per control)&comma; compatible with XBT-23 transmitters keychain control&comma; XBT-18-BC visor control and XB-WT-01 wall button type control.

10LZR-H100KIT-19327 Laser sensor for security with a range of 9.6 x 9.6 meters&comma; replace magnetic ties

PRO-LIGHT-LED Red/Green Signaling Traffic Light&comma; requires XB-ML assembly.
