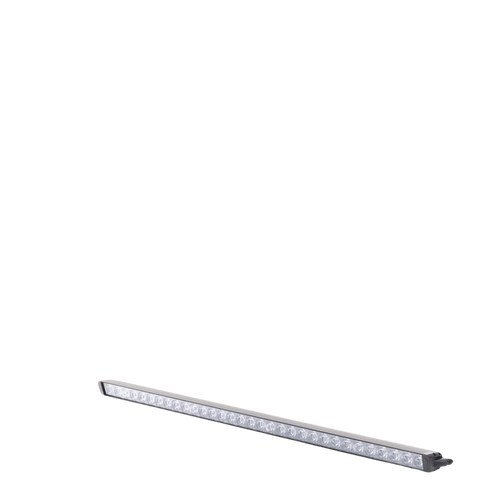

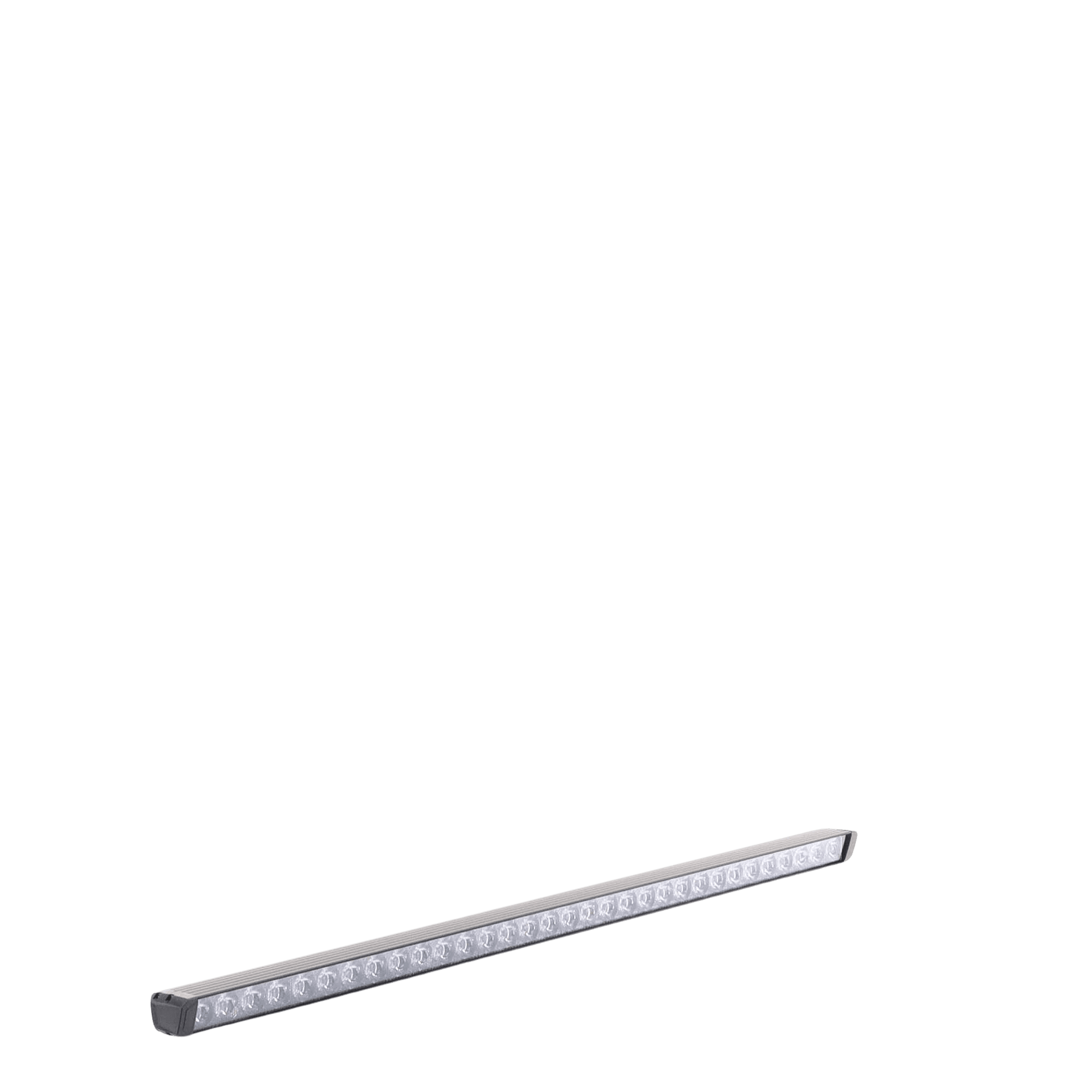

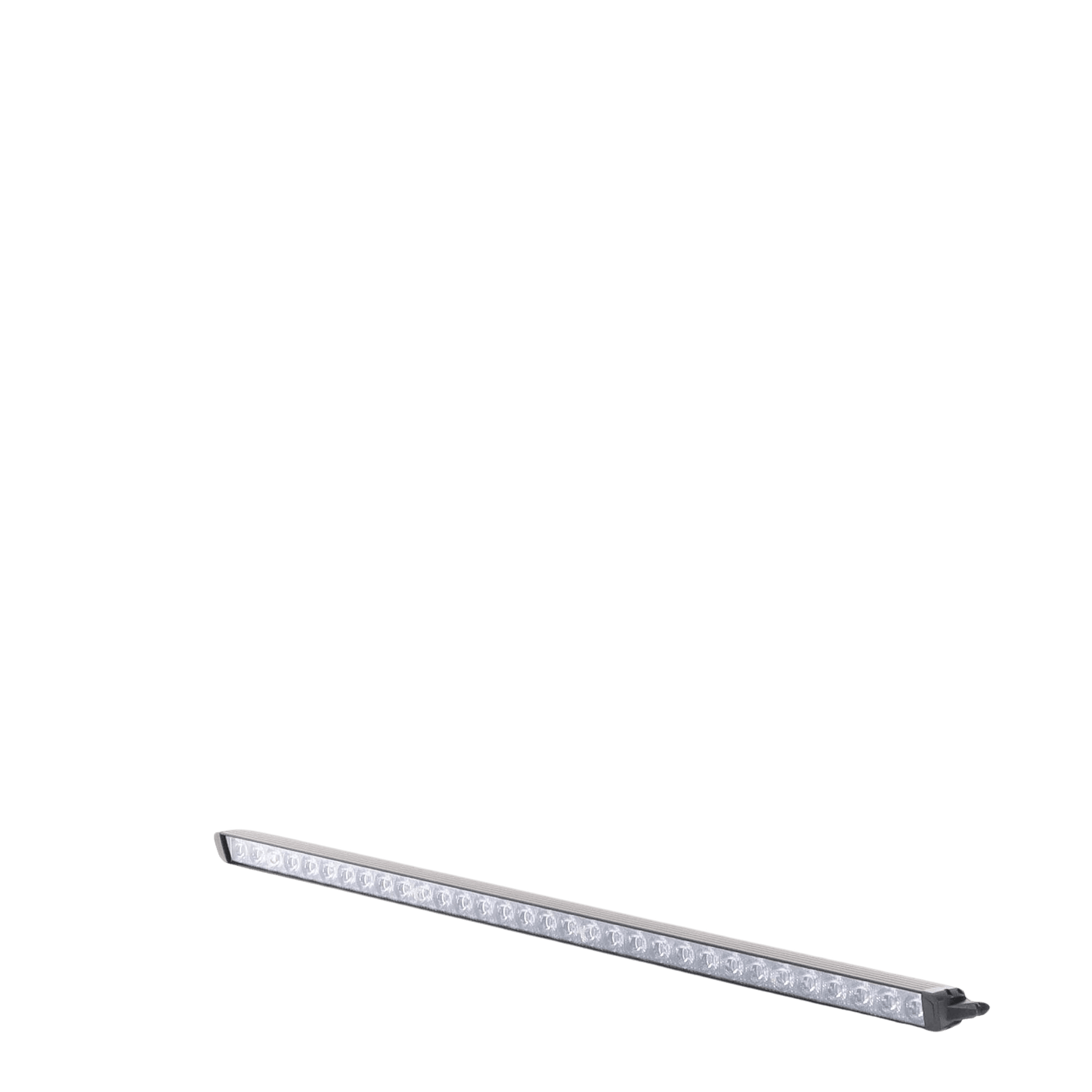

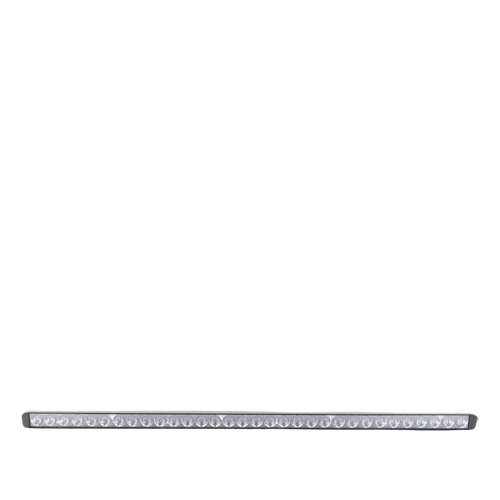

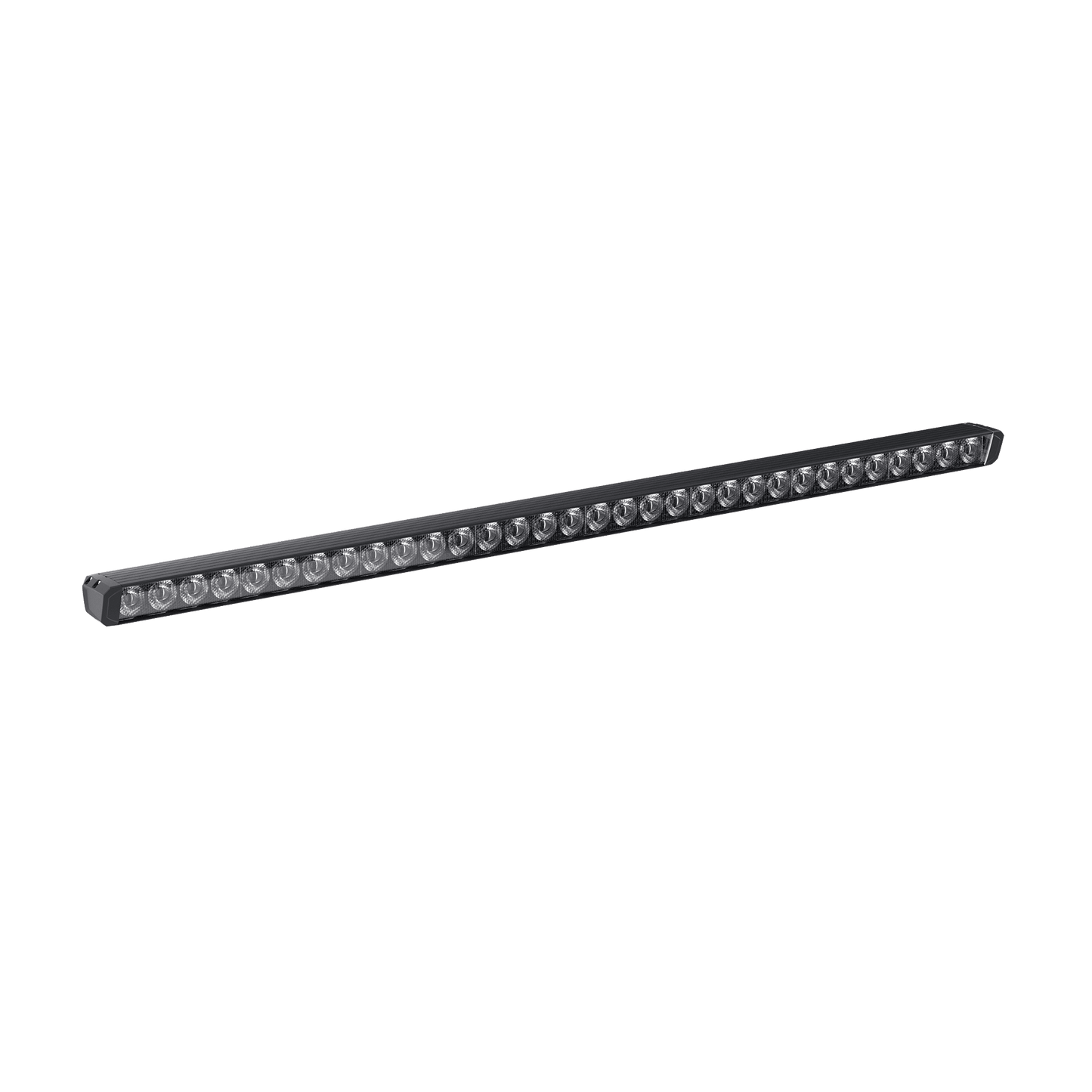

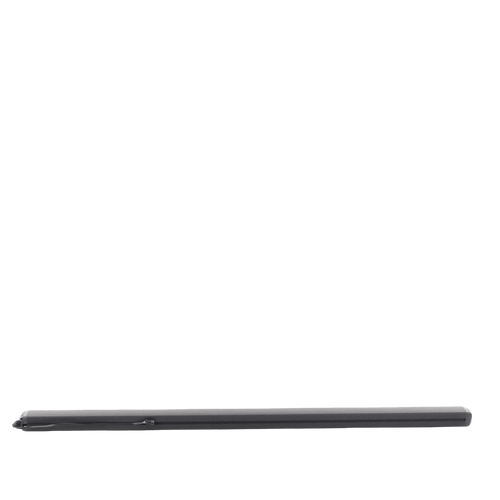

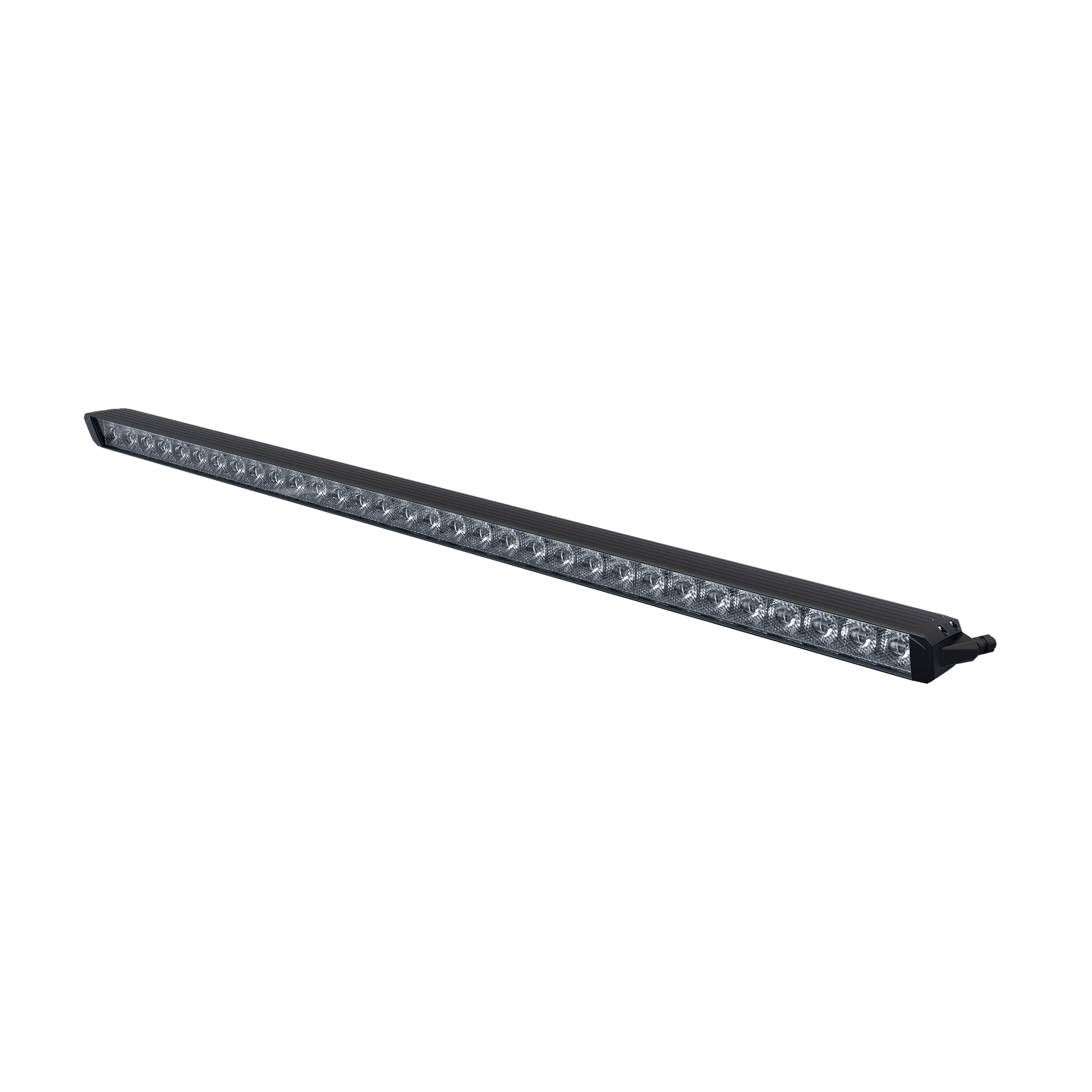

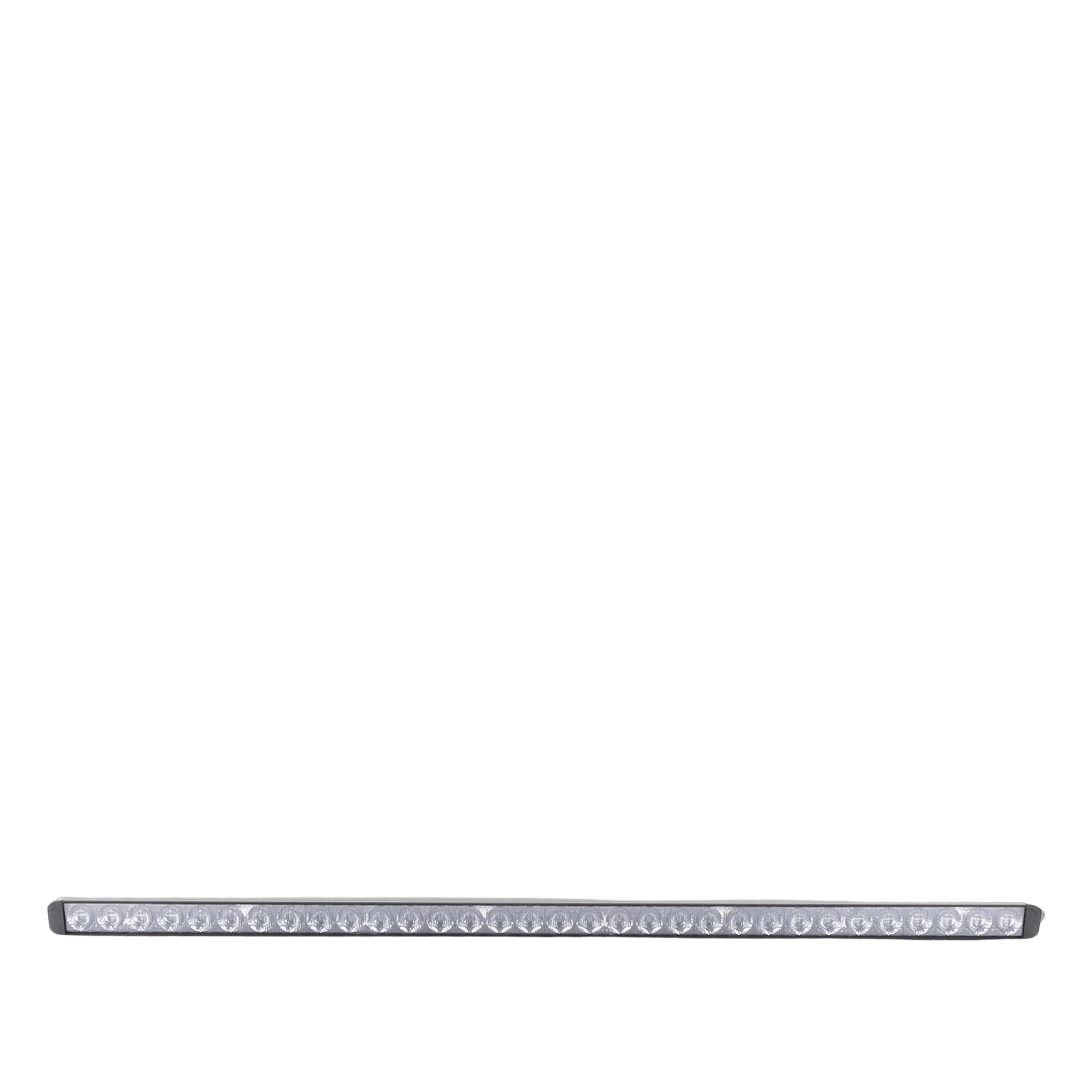

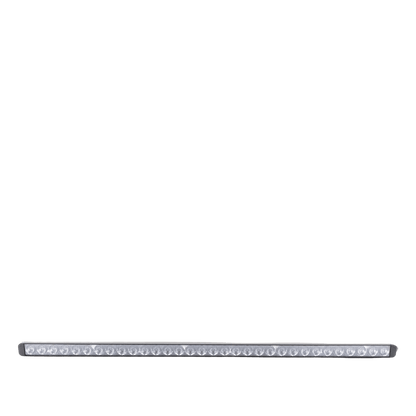

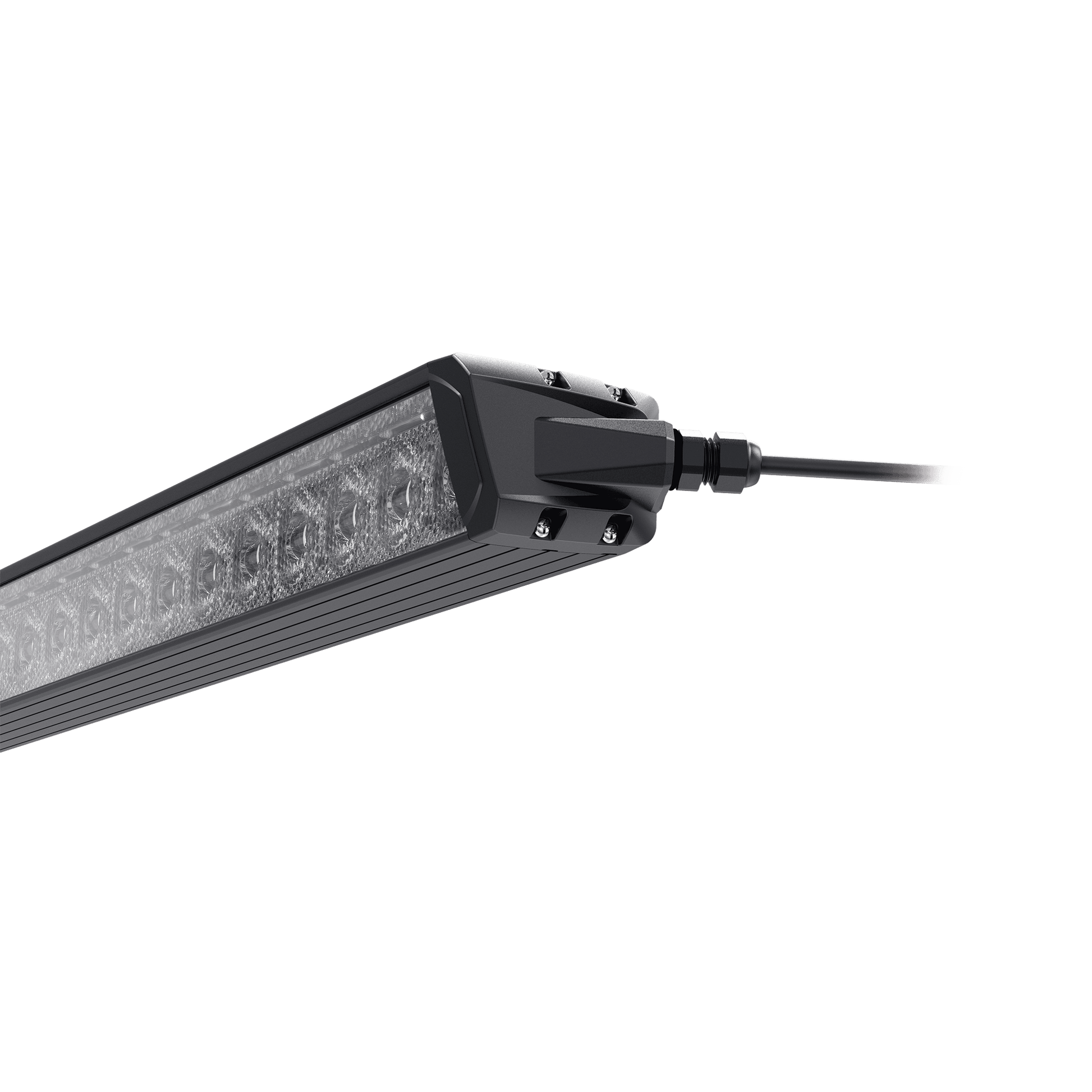

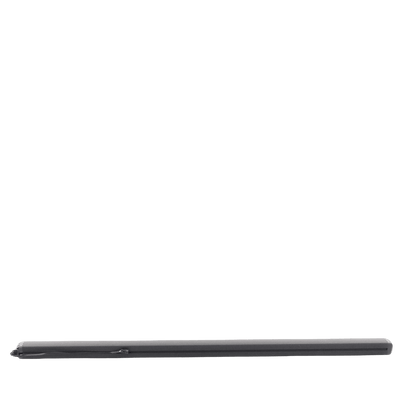

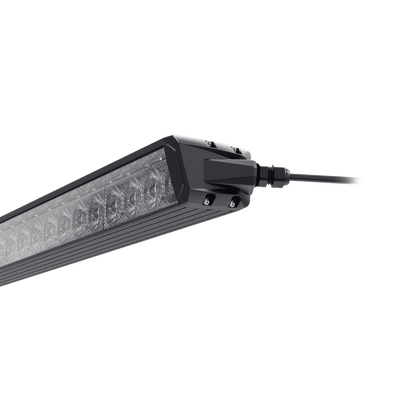

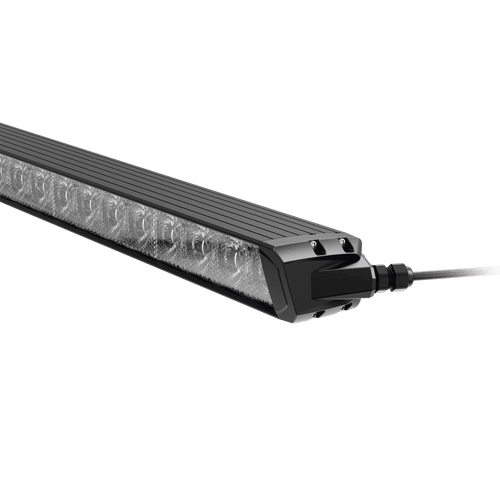

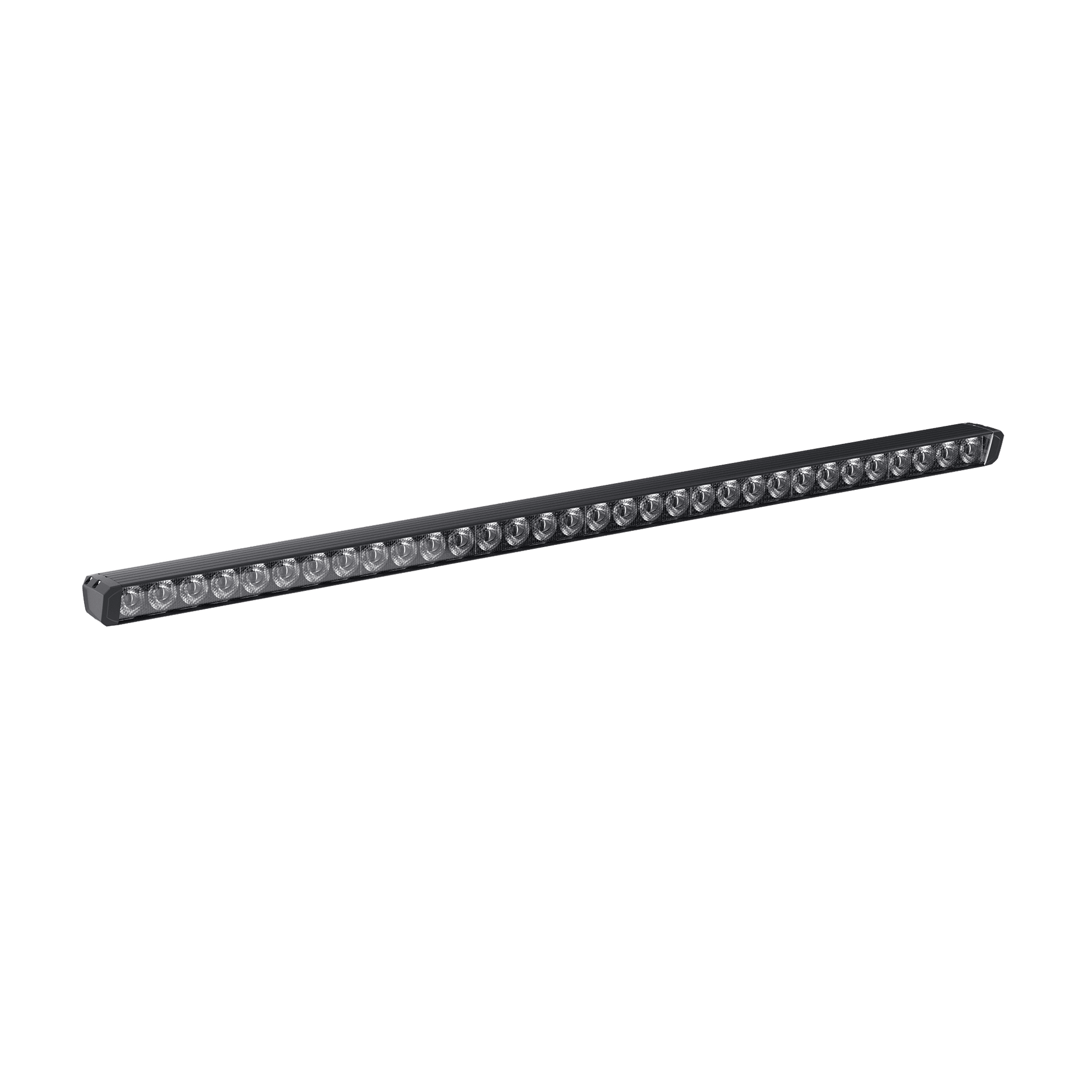

8 Module Light Bar, 32 LED, Amber, SAE Class 1, With 8 Switch Controller

SP14 8-module warning bar with 32 LEDs

CHARACTERISTICS

■ A complete solution for traffic announcements and warnings with controller, extension and mounting cable.

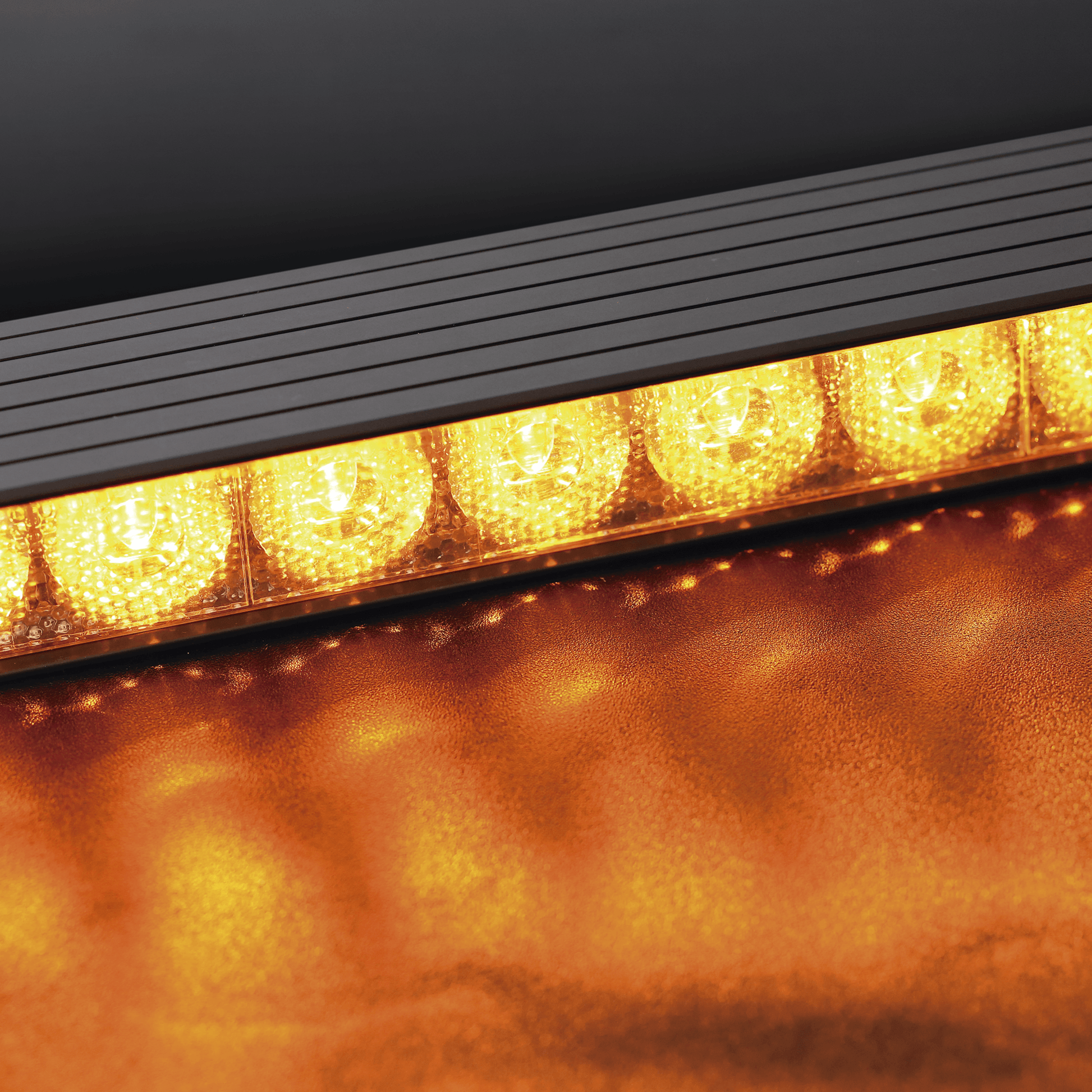

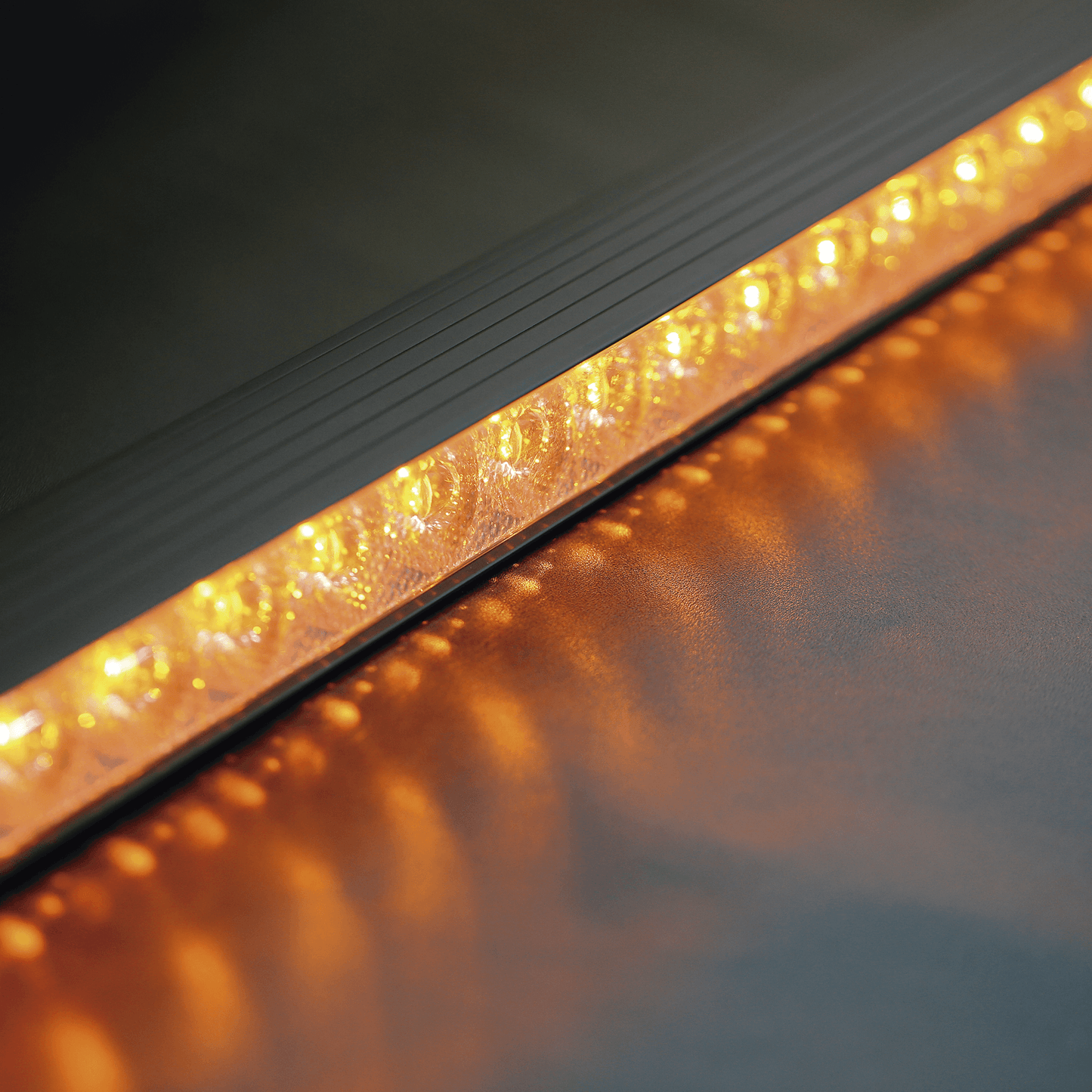

■ Contains 8 modules of 4 LEDs; Focused warning visibility, fluid and high intensity.

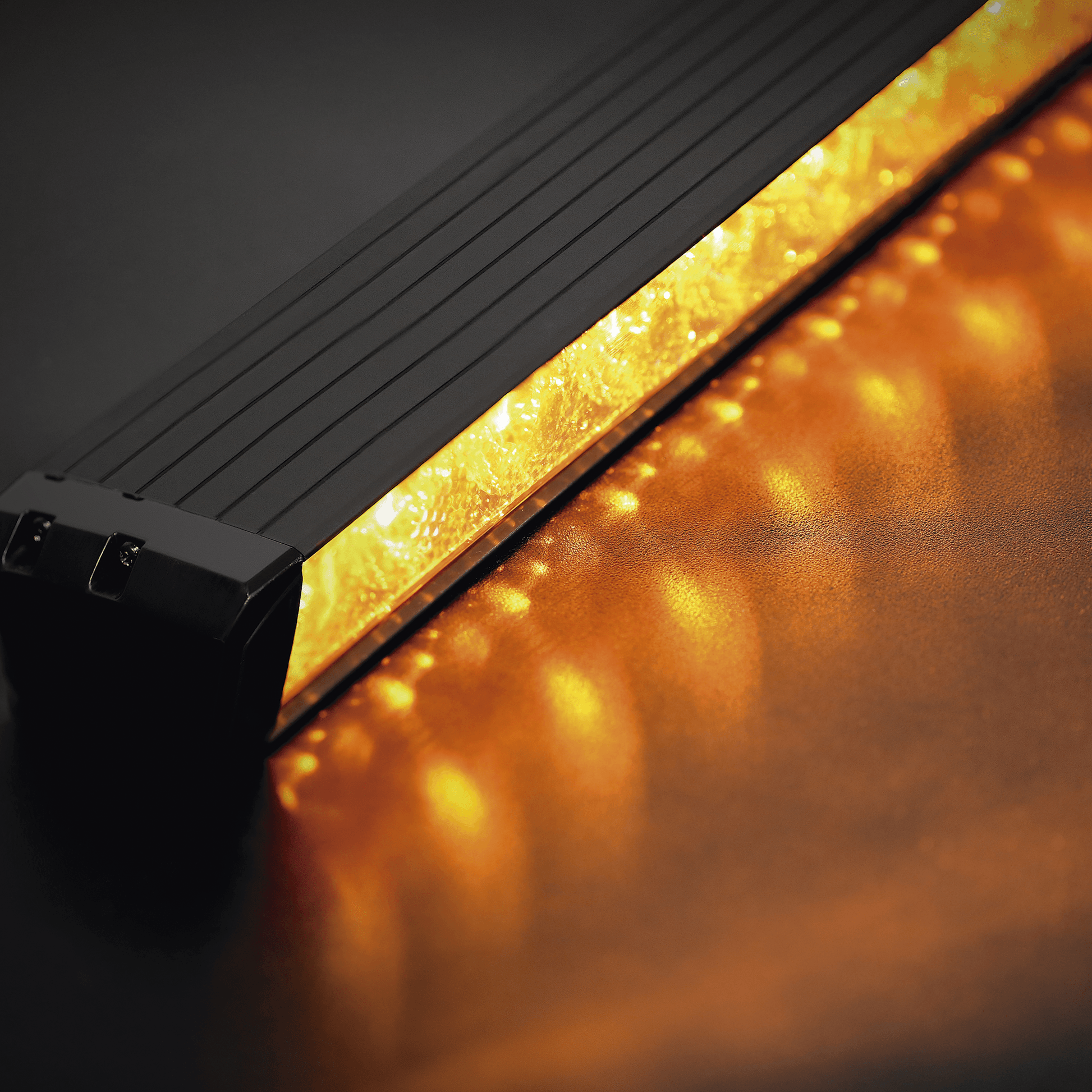

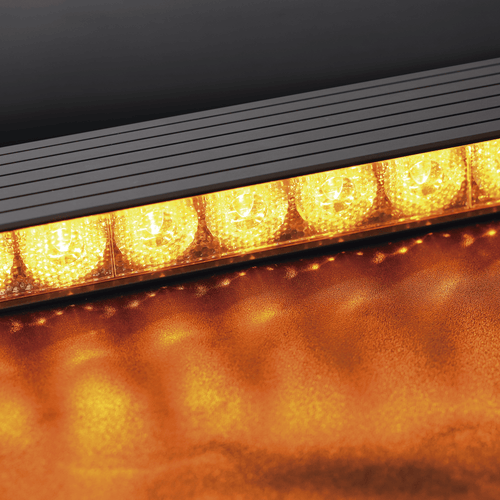

■ Unique visor design and 1,9" high light-emitting surface allow for excellent clarity even in bright sunlight.

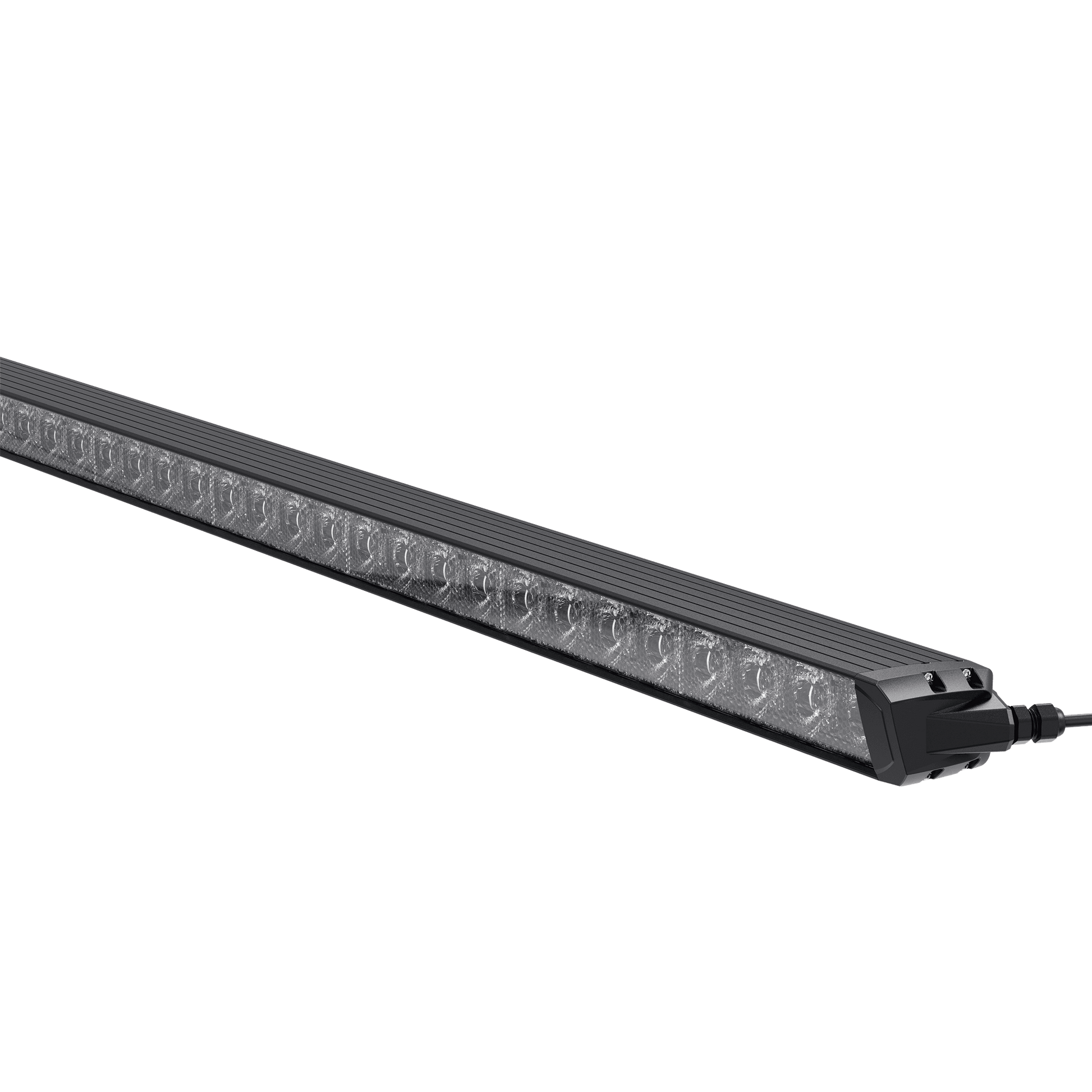

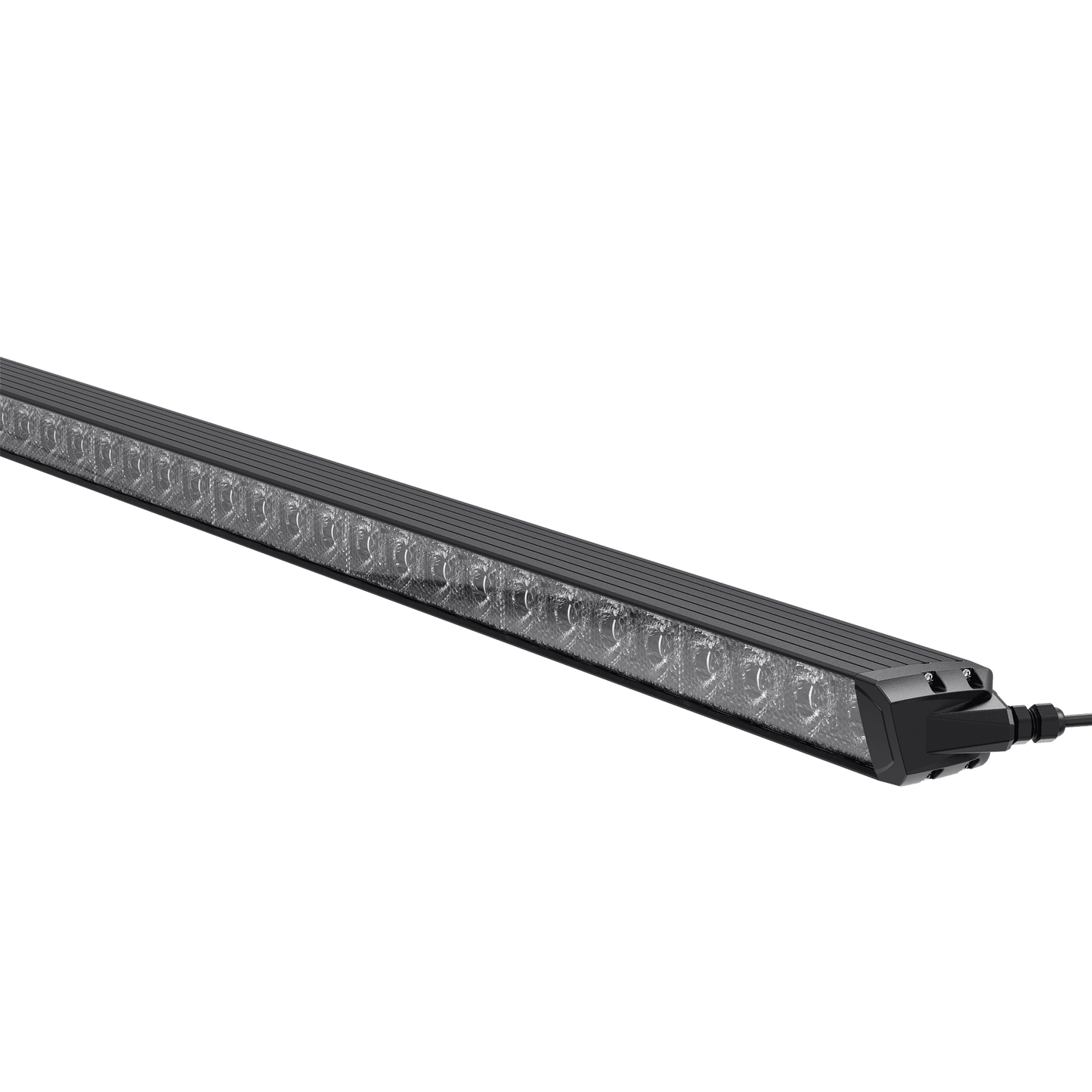

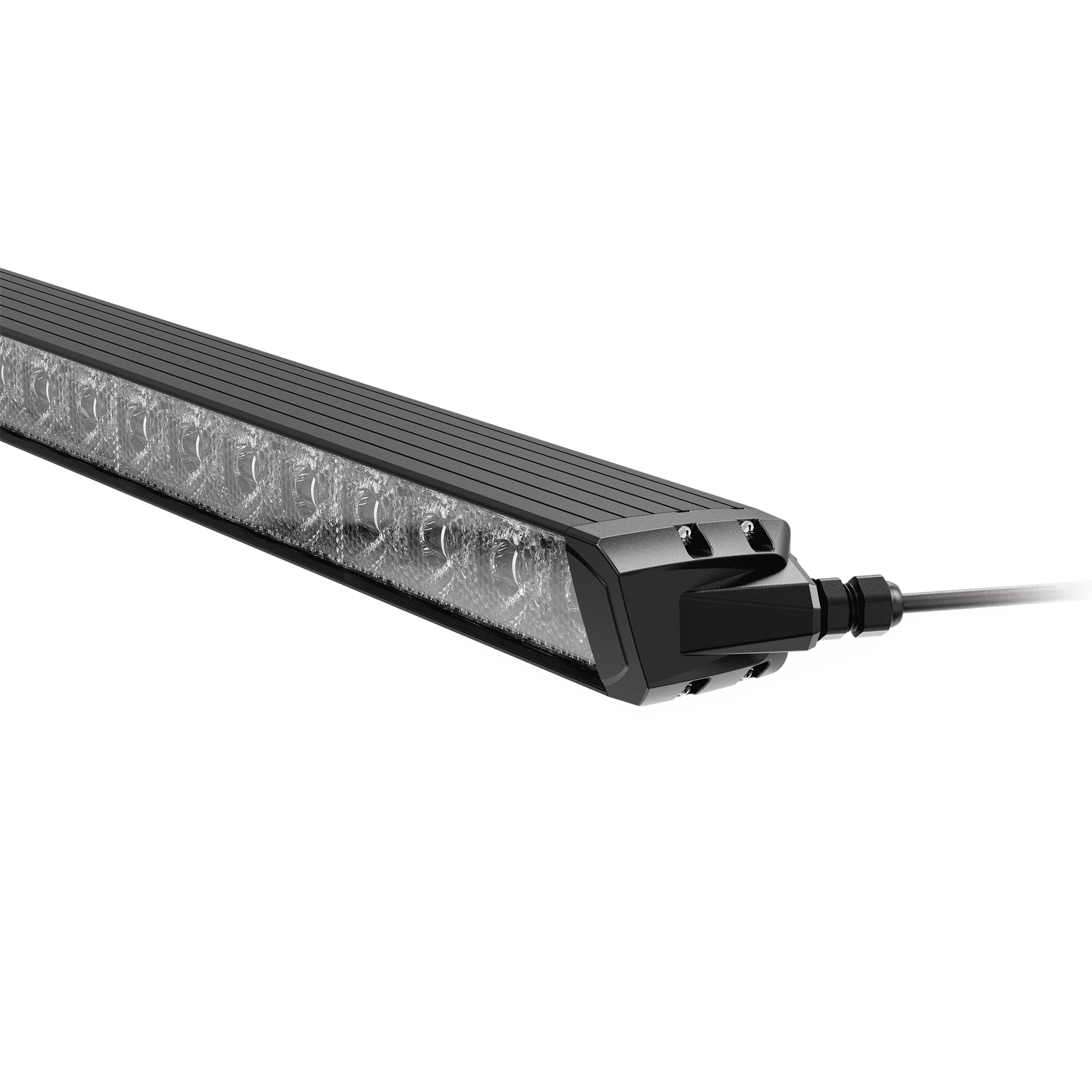

■ Plug-n-play cable design for quick and easy installation.

■ Programmable for cruise mode and/or final flashing mode.

■ 8 LED indicators on the controller for instant display of flash patterns in the car.

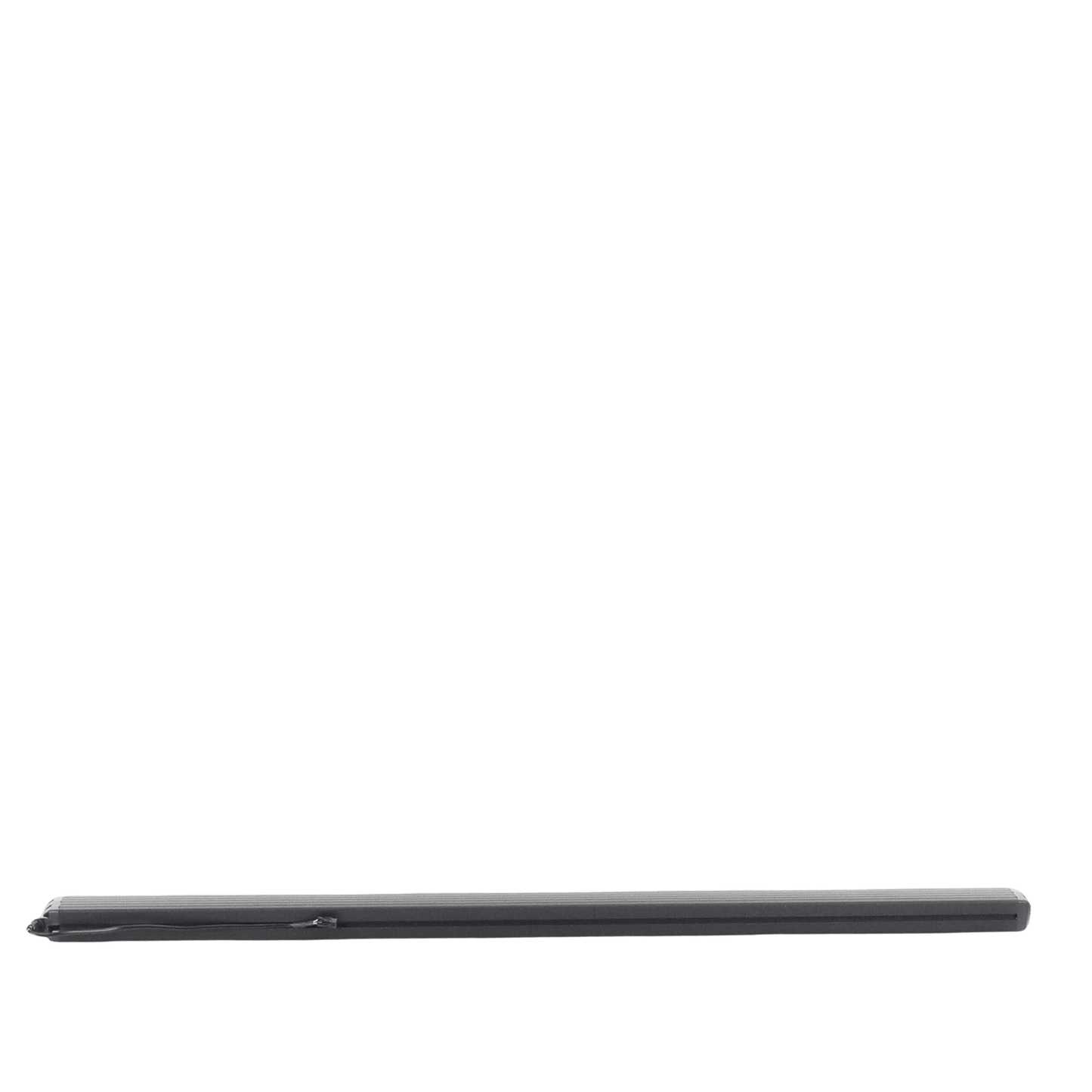

■ Solid aluminum extrusion for efficient heat dissipation.

■ Weather and vibration resistant design for external or internal use.

■ EMC and reverse polarity protection

SPECIFICATIONS

• Compliance: ECE R10, SAE J595 Class 1, CA Title 13, IPX6
• Operating voltage: 12-24 VDC
• LED elements: 32 LEDs
• Cables:
• Red: +VCD, 120 cm, 20AWG
• Black: -GND, 120 cm, 20AWG
• Blue: IGN (on), 120 cm, 20AWG
• Purple: AUX (auxiliary), 120 cm, 20AWG
• Average Current: 1:15 A at 12 VDC and 24 VDC (varies depending on flash patterns)
• Max. Current: 2:3 A at 12 VDC and 24 VDC
• Average Power: 13:8 W at 12 VDC; 27:6 W at 24 VDC (varies with flash patterns)
• Max. Power: 27:6 W at 12 VDC; 55:2 W at 24 VDC
• Fuse rating: 3A
• Storage temperature: -40°C to +75°C
• Working temperature: -40°C to +60°C
• LED Color Options: Amber, red, blue (depending on model and configuration)
• Lens Color Options: Clear
• 5 Years Warranty
