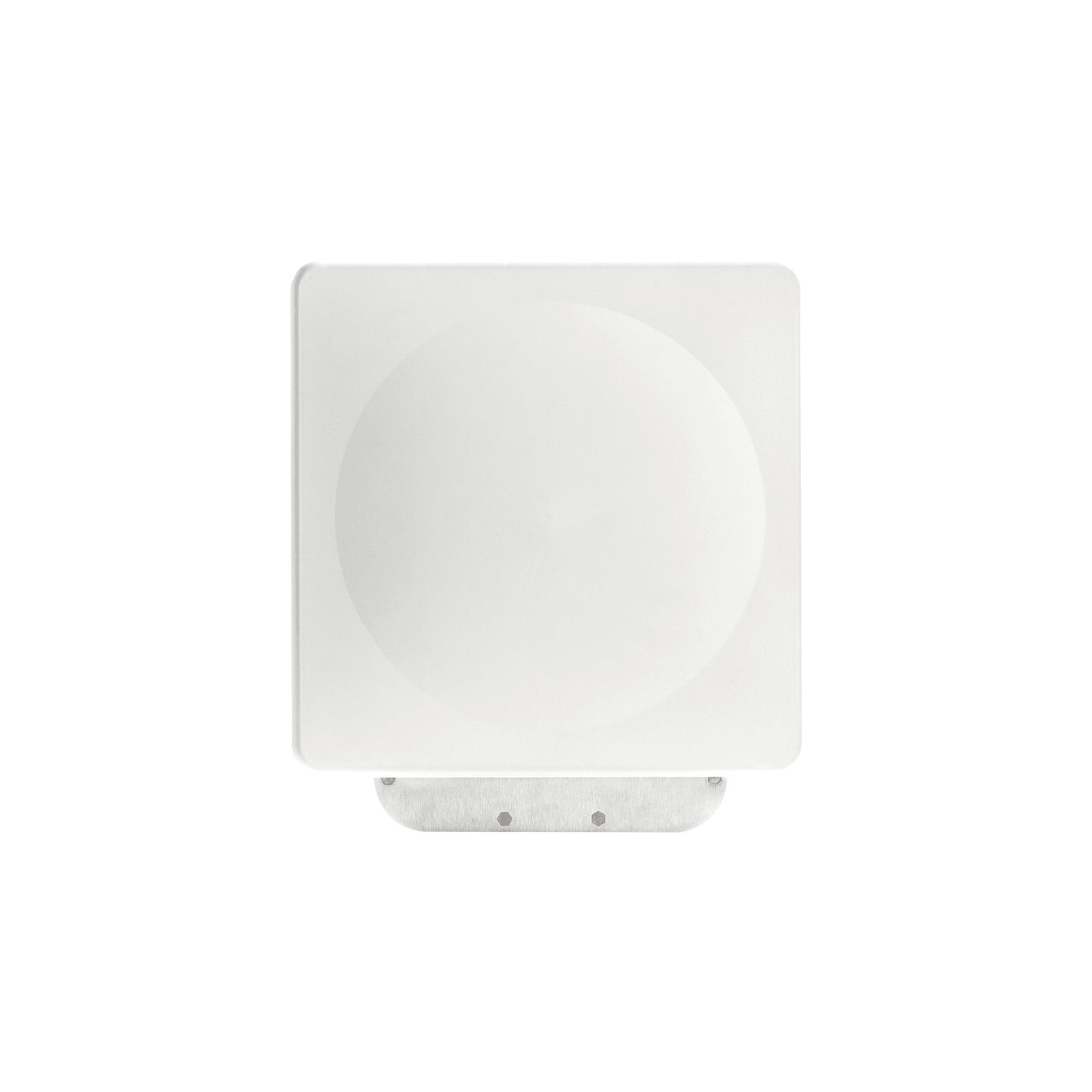

Backhaul radio + integrated antenna (High gain 23 dBi), 4.8-5.9 GHz PTP/HCMP/ 450 Mbps Real C050067B021A

  • af1aef336795d435611693217acd7c17
1 1

Out of stock

Modelo: PTP-48-670I

Proveedor: CAMBIUM NETWORKS

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


PTP670 Integrated Antenna 23 dBi


4.8 - 5.9
GHz 450
Mbps HCMP
High-capacity multipoint
  • PTP and HCMP mode
  • High capacity - 450 Mbps transmission speed with 10bps/Hz
  • Broadband - frequency band between 4.8 and 5.9 GHz
  • Security - AES 128/256-bit encryption, remote modification of encryption keys ( over-the-air rekeying , OTAR), HTTPS/TLS and SNMPv3 management, RADIUS authentication and password policy configuration.
  • Interfaces - Two Gigabit Ethernet ports and one SFP port for optional fiber interface. Supports the PoE output port of the 802.3at standard.
  • Versatility – Easy-to-integrate layer 2 bridge implementation supports symmetric and asymmetric time division duplexing (TDD) operation, 1588v2 and simultaneous Ethernet precision frequency and timing.
Operating band 4.8 - 5.9 Ghz
Channel Width 5, 10 , 15, 20, 30, 40, and 45 Mhz
Spectral Efficiency 10bps/Hz
Channel Selection Automatic, via DSO (Dynamic Spectrum Optimization) or manual mode
Maximum power Up to 28 dBm
Exterior protection IP66 - IP67
Protocol IEEE 802.3
Latency 1-3ms
Frame Support Jumbo packets up to 9600 bytes
Ports 2 x Gigabit Ethernet:
- Gigabit Port 1: Data + PoE power (Input)
- Gigabit Port 2: 802.3at PoE (Output)
1 x SFP:
single-mode/multi-mode
S1/E1 TDM 8 x T1/E1 TDM (Network Indoor Unit (NIDU))
Dimensions Width: 305mm (12”),, Height: 305mm (13.5”),), Depth: 81mm (3.2”)
Weight 4.1 kg (8.95 lbs) including stand
Feeding AC power injector: 32° to 104° F (0° to +40° C); 35W; 90-240 VAC, 50/60Hz
Consumption 30 W maximum (up to 70 W using auxiliary port with 802.3at)

HCMP
High-capacity multipoint

Remote Modules Up to 8 Nodes
Channel Width 20 and 40 Mhz
Data capacity in subscribers with 1:1 symmetry
Number of Nodes @40 MHz 2 3 4 5 4 7 8
Mbps 162 106 80 66 56 Four. Five 42
Spectral Efficiency in HCMP 8bps/Hz
Latency 2 - 4ms

*1 year warranty.
