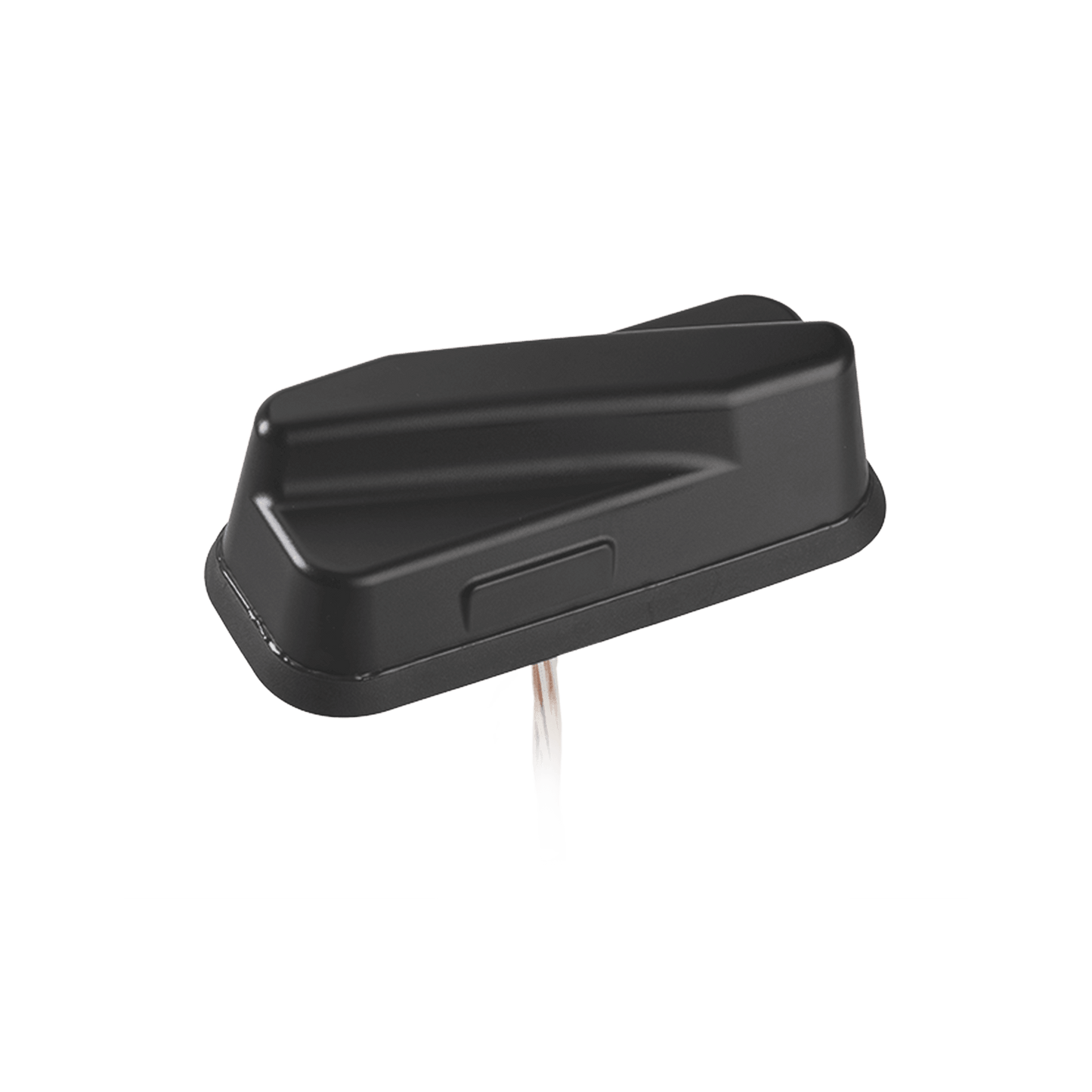

Multiple band trooper antenna with 4G LTE port

The new Trooper™ II dual-carrier antenna platform is designed to meet the requirements of increasingly complex RF communication systems in transportation and IIoT applications. These antennas feature four 4G LTE elements compatible with the world's leading multi-network cellular routers that support carrier aggregation for the high-speed data transmissions needed in dense RF environments, such as public safety broadband networks. The platform also incorporates dual-band 802.11ac MIMO Wi-Fi connectivity with four Wi-Fi element options. Also, The antennas include PCTEL's proprietary high-rejection multi-GNSS technology for high-precision tracking and asset management. White or black low profile housing options are available.

Characteristics

• 4,6 inch slim size, ideal for installations with limited surface space

• 1-inch metal stud mount with slotted locknut provides a single cable exit for easy antenna installation and/or replacement

• IP67 compliant design provides maximum protection against water or dust ingress

• Integrated ground plane for maximum location flexibility

• Proprietary high rejection filtering enables wideband coverage while achieving superior out-of-band rejection for all GNSS frequencies superior out-of-band rejection for all GNSS frequencies
