High performance shielded antenna 4 ft, 3.3-3.9 GHz, 35 dBi gain, N-female connectors.

  • fe2c168edca77ed3fec04f206cb69ec3
  • fe2c168edca77ed3fec04f206cb69ec3
1 2
  • Montaje de alta precisión
  • Pintura Electrostática

Out of stock

Modelo: NP3334

Proveedor: NetPoint

Código SAT: 43221700

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

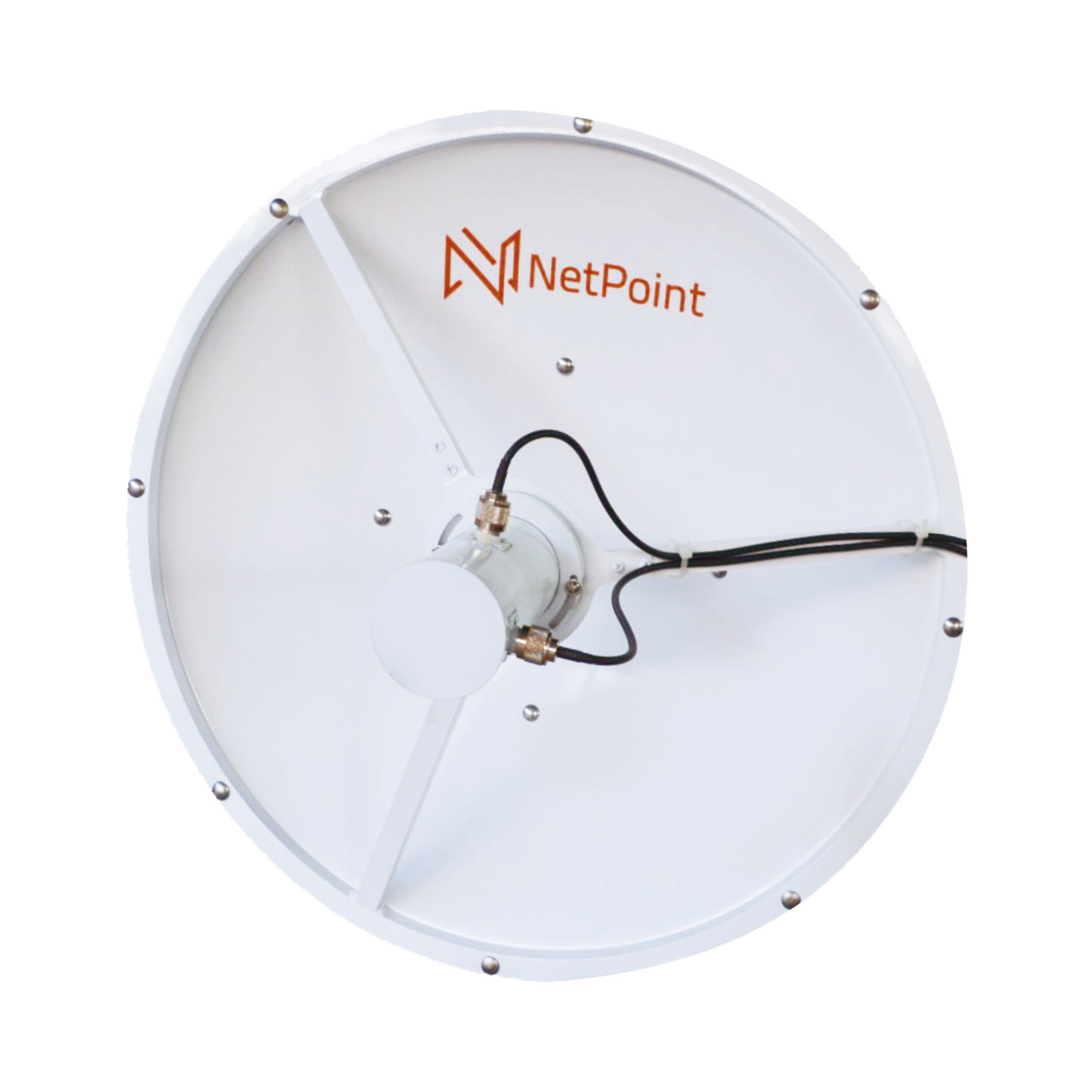

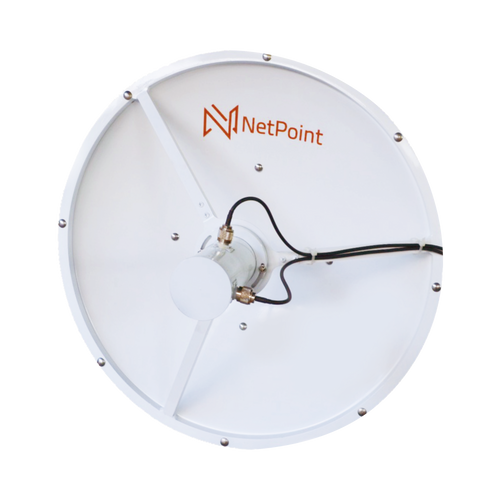

Directional Antenna of 90 cm Diameter, 3.3-3.9 GHz 31 dBi for Point to Point applications.

Electric specifications:
Frequency Range: 3.3-3.9 GHz
Antenna Type: Parabolic
Connector Type: N - Female
Gain 34 dBi
VSWR: < 2.0
HPOL beam width: 5.0°
VPOL beam width: 4.8°
Return loss: 9.54 dB
ISO: 30 dB
F/B Radio: 38 dB
XPD: 30 dB
Polarization:Dual

Mechanical Specifications:
Wind resistance speed: 120 km/hr
Azimuth adjustment: 360°
Elevation Adjustment: ±15°
Suggested mast diameter: 50 - 70, 100 - 114mm
Operating Temperature: -45 to +60℃
