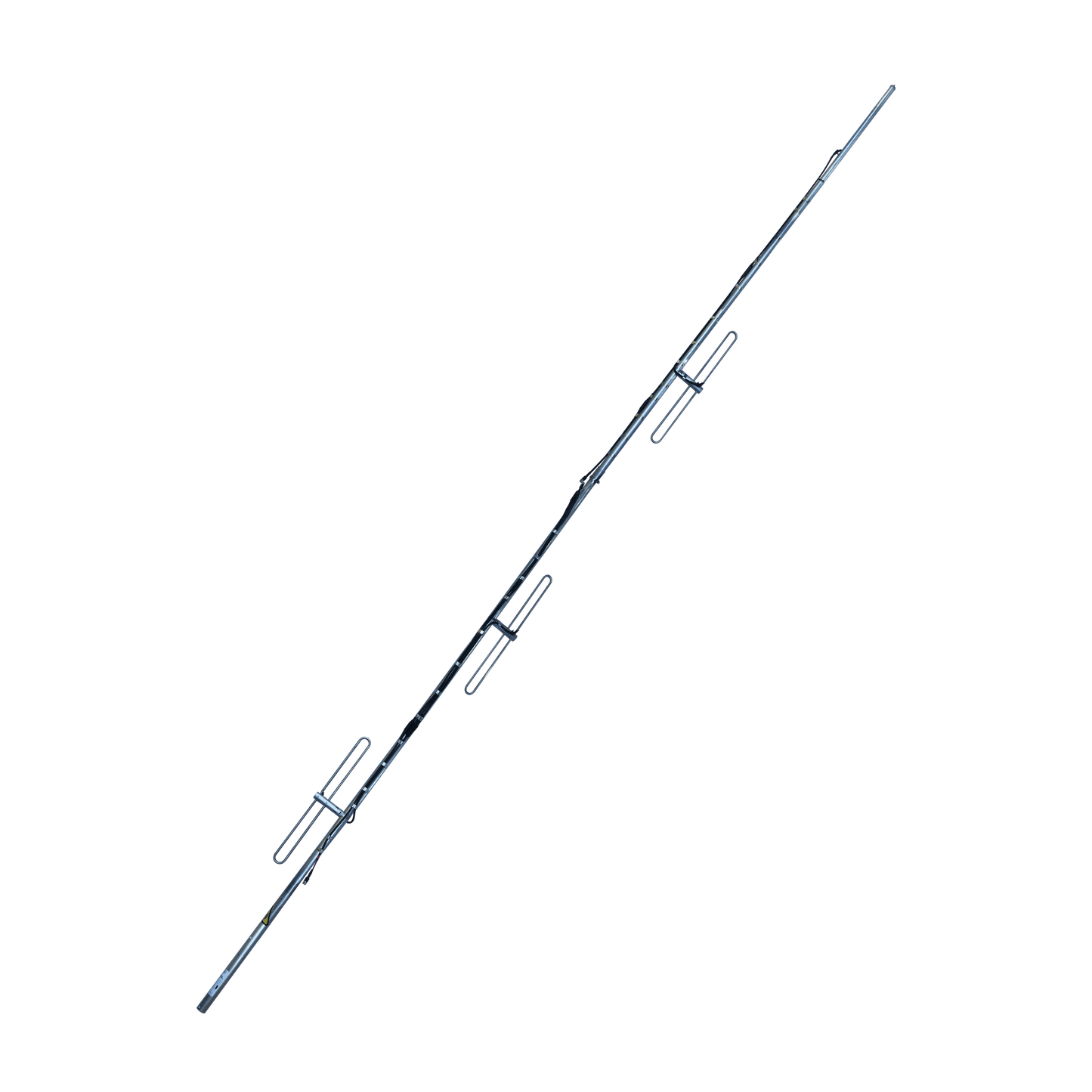

Base antenna of 4 dipoles. Frequency range of 144 - 174 MHz and gain of 6/9 dBi omnidirectional/directional.

Resistant antenna, light and excellent gain. This MODEL is suitable for mounting on the top or side of a tower. Includes clamps to be mounted to the top of the tower.

High Frequency Range: Operates in a wide frequency range from 144 to 174 MHz, Suitable for single band and designed for outdoor use in communication applications.

Superior Performance: 9/6 dBi gain, ensuring efficient transmission and reception of signals.

Durable Protection: Sturdy construction with aluminum radiation material, N Female connector and lightning protection by DC grounding, guaranteeing resistance to adverse weather conditions.

Professional Installation: Two-piece mast design for easy transportation, with installation by a certified installer to ensure optimal performance.

Dimensions and Regulations: Length of 6477.0 mm and a net weight of 15.9 kg, Packed in sturdy cardboard box for safe delivery. Product complies with RoHS regulation 2011/65/EU by exemption.

Specifications

• Frequency Range: 144-174 MHz.
• Dipoles: 4
• Gain: 6 dBi (Omnidirectional) 9 dBi (Directional)
• Bandwidth: 30 MHz.
• Power: 500 Watts.
• Connector: N Male.
• Wind resistance: 129 km/h.
