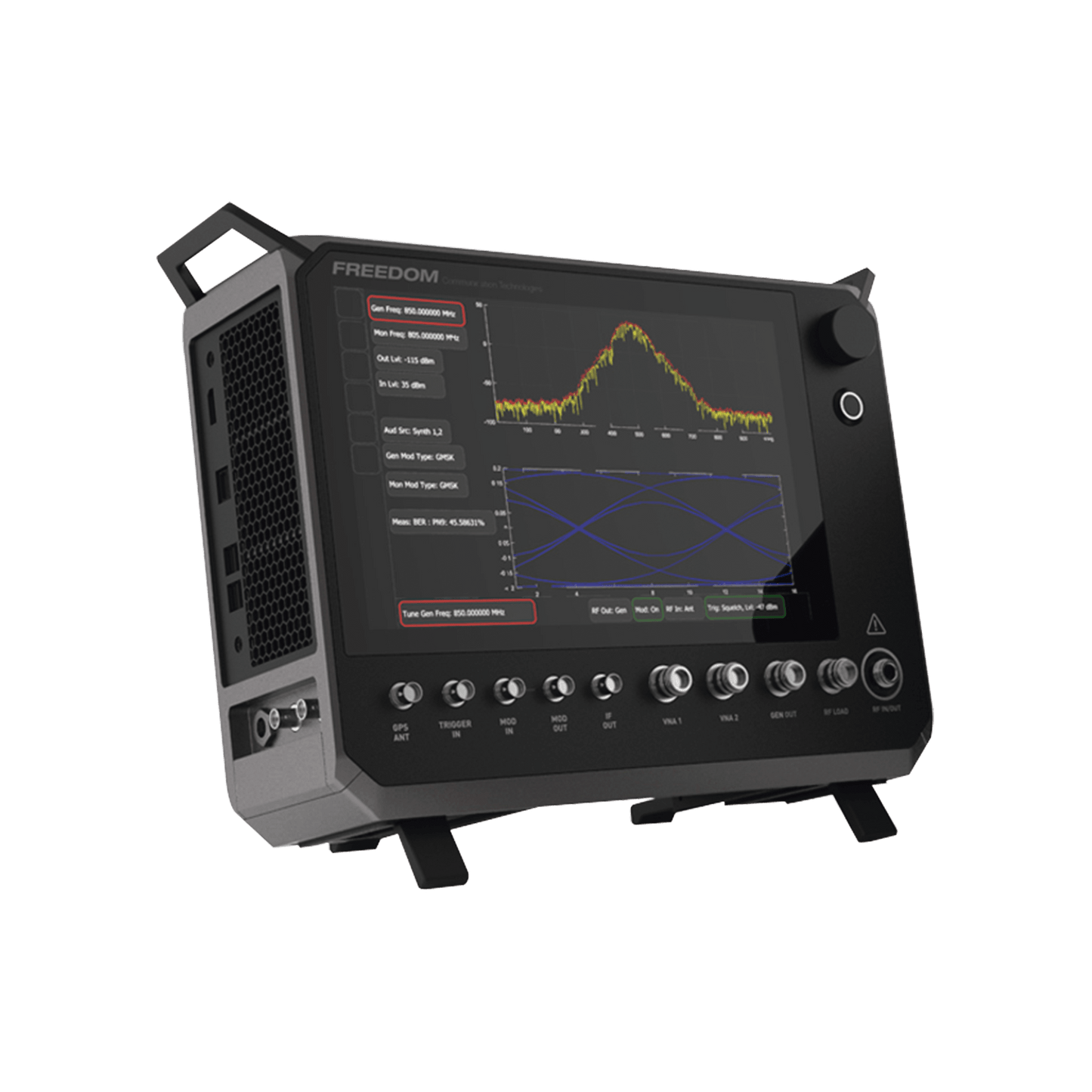

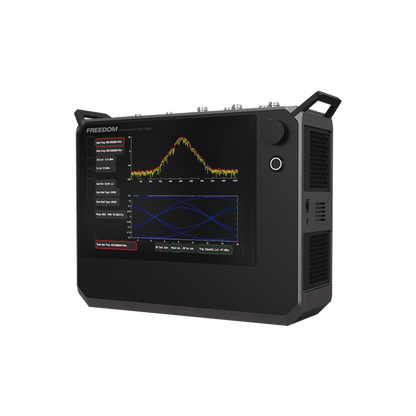

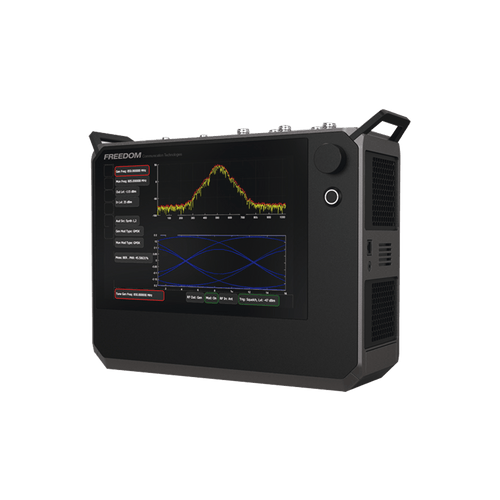

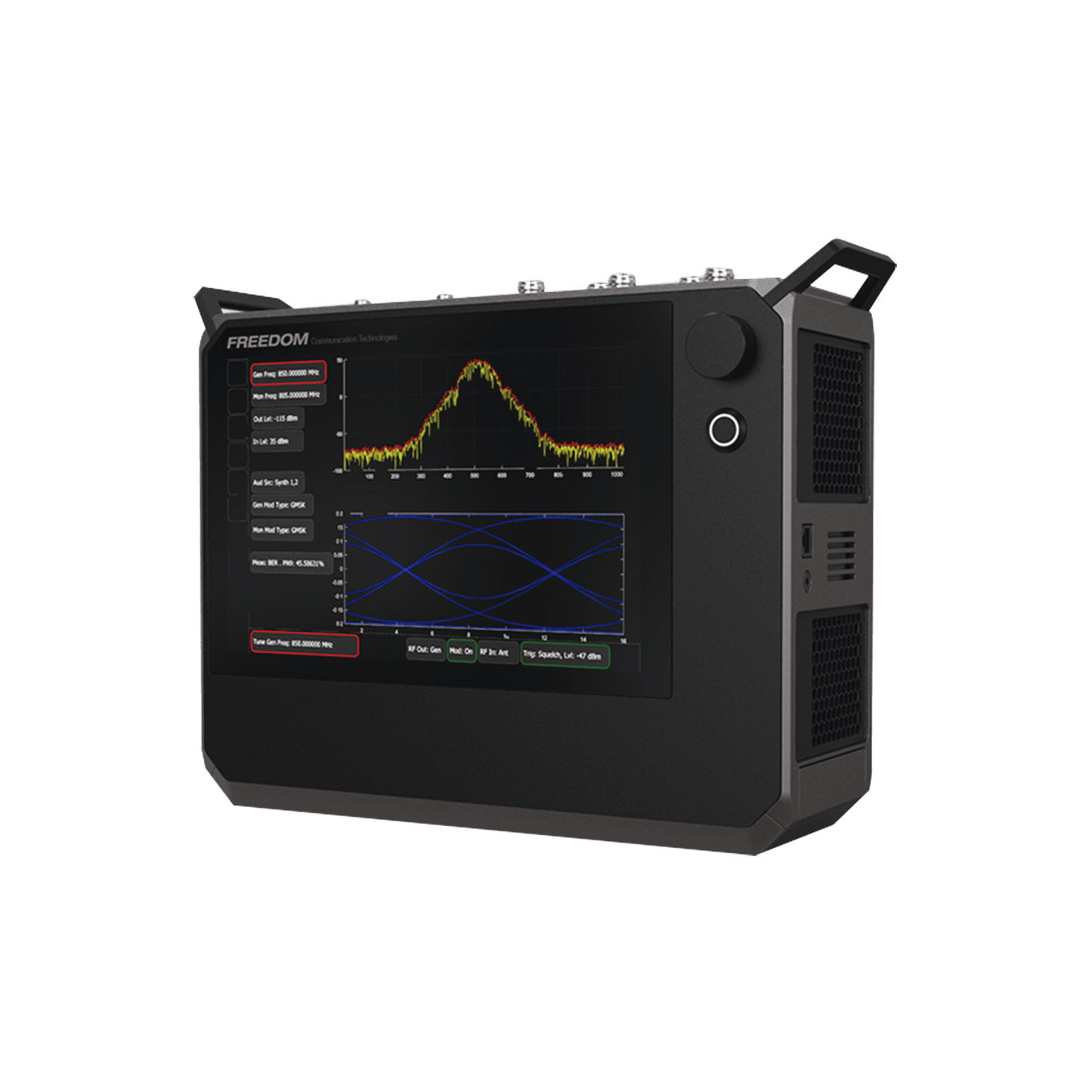

Professional Analyzer for Ultra Portable Radio Communication Systems, 6 GHz.

Analyzer of Excellence for Ultra Portable Communication Systems , 6 GHz.

• 6 GHz frequency range
• Fully portable (less than 6 Kg) aiming for over 4 hours of battery life
• Full color multi-touch screen
• LTE compatible (25MHz instant bandwidth; 160MHz in future versions)
• Vector Network Analyzer (VNA)
• interference analyzer
• Industry's best spectral purity (-110 dBc/Hz @ 20khz offset)
• Configurable connector access (front and top access models available)
• P25 Phases 1 and 2
• DMR, NXDN, TETRA
• AutoTune™ automates testing and alignment options

Basic options:

• Frequency range from 10MHz to 6GHz.
• Analog modulation and demodulation (AM, FM and Single SideBand).
• 50W continuous input power and up to 150W maximum input power.
• Output level at -130 dBm.
• Spectrum analyzer
• Signal generator
• Oscilloscope
• Vector network analyzer
• Integrated audio generators
• I/Q recorder and playback
• Audio quality tests (SINAD, THD)

Options:

• All major digital LMR protocols: P25 Phases 1 and 2, TETRA, DMR, NXDN and dPMR
• interference analyzer
• LTE test options
• AutoTunes: Test and Alignment
