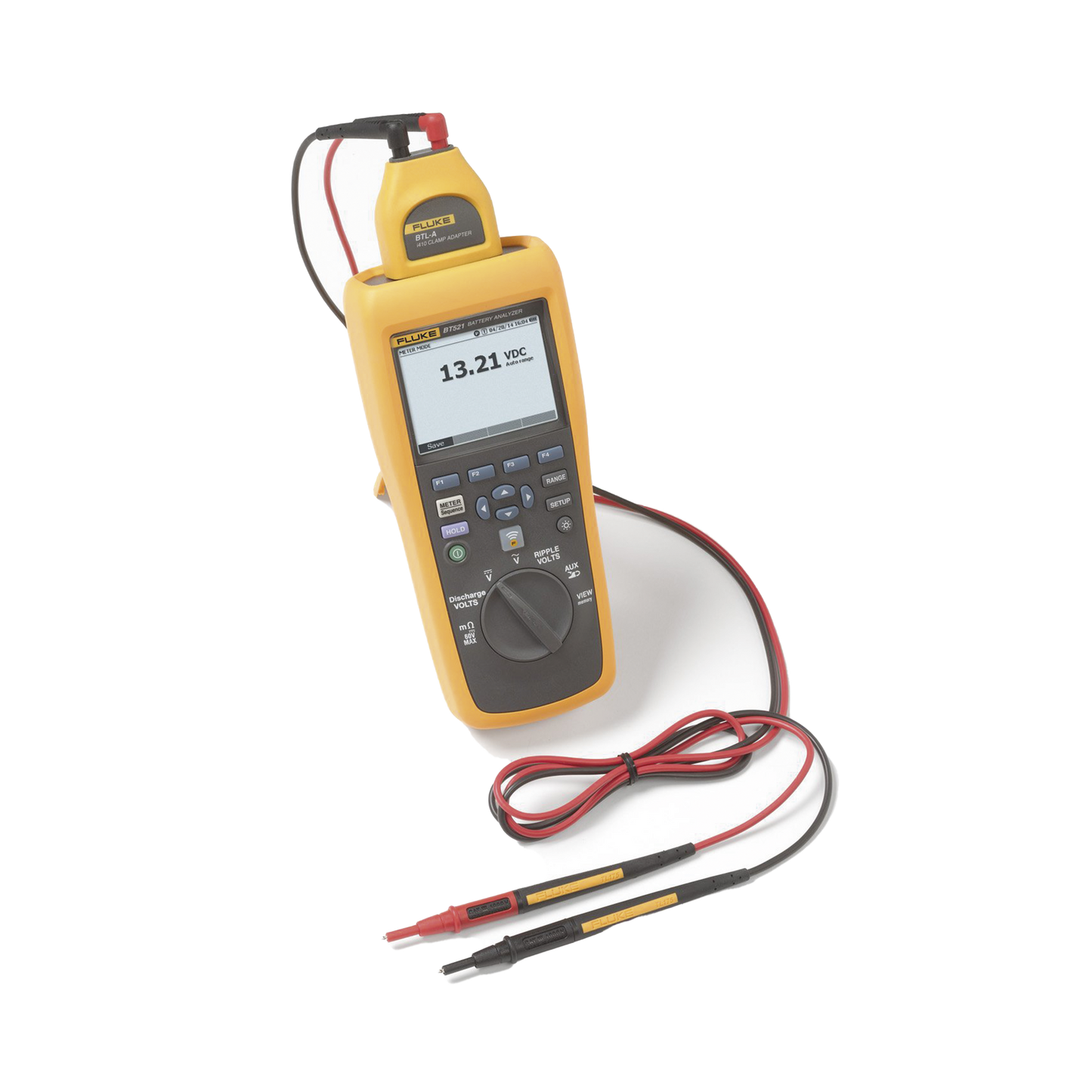

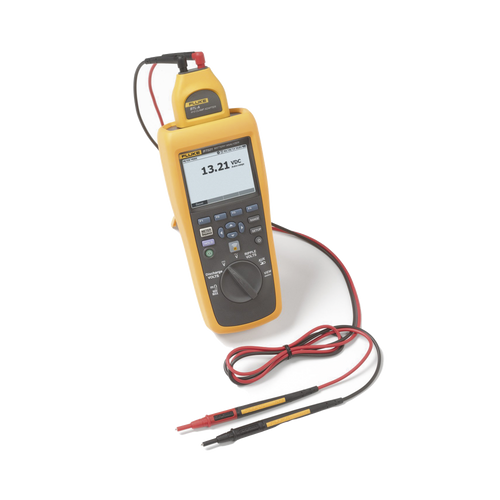

Advanced Battery Analyser with Temperature, Resistance, Tension, CC Corridor, and Frequency

  • fa2735a520de9516fe6085232e8c5e1c
  • fa2735a520de9516fe6085232e8c5e1c
1 2
  • Safety category CAT III 600 V, 1000 V DC max. for safe measurements on battery powered equipment.
  • USB port for quick data download to integrated data analysis and report management software.
  • AutoSave
  • AutoHold
  • Intercell Belt Resistance Test and Data Management: Measures the connection resistance between battery cells in a chain

Out of stock

Modelo: FLUKE-BT521

Proveedor: FLUKE

Código SAT: 26111719

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Distribuidor productos Fluke

500 Series Battery Analyzer: FLUKE BT 521

Reduces the complexity of checking, simplifies the workflow and the intuitive user interface of these devices greatly facilitates battery testing.

  • The ideal test instrument for maintenance work, Troubleshooting and health checking of individual stationary batteries and battery banks used in critical backup applications.
  • An intuitive user interface, The compact design and robust structure guarantee optimal performance and results, as well as great reliability.
  • Offers a wide range of battery testing functions ranging from resistance and DC voltage checks to general health checking using an automated process, in addition to integrating a probe for infrared temperature measurement.
  • Designed to perform measurements on all types of stationary batteries.

Voltage and resistance thresholds

Fluke battery analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the checking process, Measured values are automatically compared to predefined thresholds producing a PASS indication, NO PASS or ALARM after each measurement. A maximum of 10 sets of thresholds can be stored and the threshold indications are determined based on the following criteria:

Strain Endurance
> Lower voltage <Lowest voltage < Reference > Reference and Reference x (1+Alarm %) > Reference x (1+Fail)
Happens It doesn't happen Happens Alarm It doesn't happen

Fluke Battery Management Software

Fluke battery management software allows the user to import battery analyzer data to a PC quickly and easily. Measurement data and battery profile information are stored and archived with the management software and can be used to compare results&comma; change the results of the conductance and resistance readings&comma; and analyze trends. The measurement data&comma; Battery profile and analysis information can be used for easy reporting.

  • Quick view of saved readings
  • Profile management
  • Histogram of a series of batteries with threshold defined by the end user
  • Historical battery trend data
  • Several rounds of discharge voltage
  • Quick report generation
  • Update Fluke Battery Analyzer Firmware
  • Change the results of the conductance and resistance readings

App para móviles Fluke Battery Analyze

The BT521 offers wireless communication for data downloading and remote viewing while taking measurements via the Fluke Battery Analyze mobile app (please note that the Fluke BT521 does not currently support Fluke Connect). La app para móviles Fluke Battery Analyze:

  • Browse profiles
  • Review Sequential Check Mode Data
  • Email sequence check data

Includes:

  • battery analyzer
  • 4-wire test device (set)
  • BTL10 Basic Test Cable (Set)
  • TL175 TwistGuard™ Test Leads with Adapter
  • BTL21 Smart Test Probe Set: with extender and temperature sensor
  • i410 clamp meter for AC/DC
  • BP500 Lithium-ion battery
  • BC500 AC Charger
  • Cable mini-USB
  • Shoulder strap
  • Belt strap
  • Strap with magnet for hanging
  • FlukeView® Battery Management Software
  • Flexible carrying case
  • Spare fuses (2)
  • Battery labels
  • Zero Ohm Calibration Resistor
