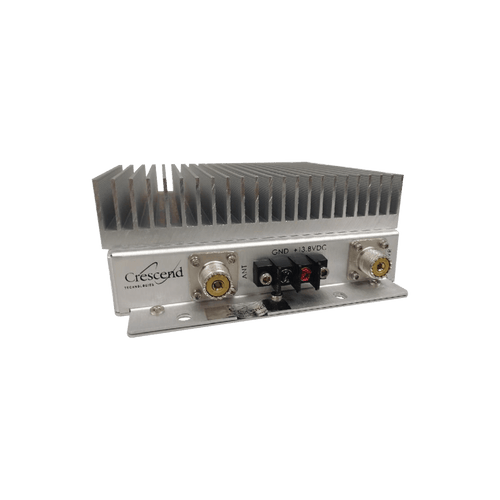

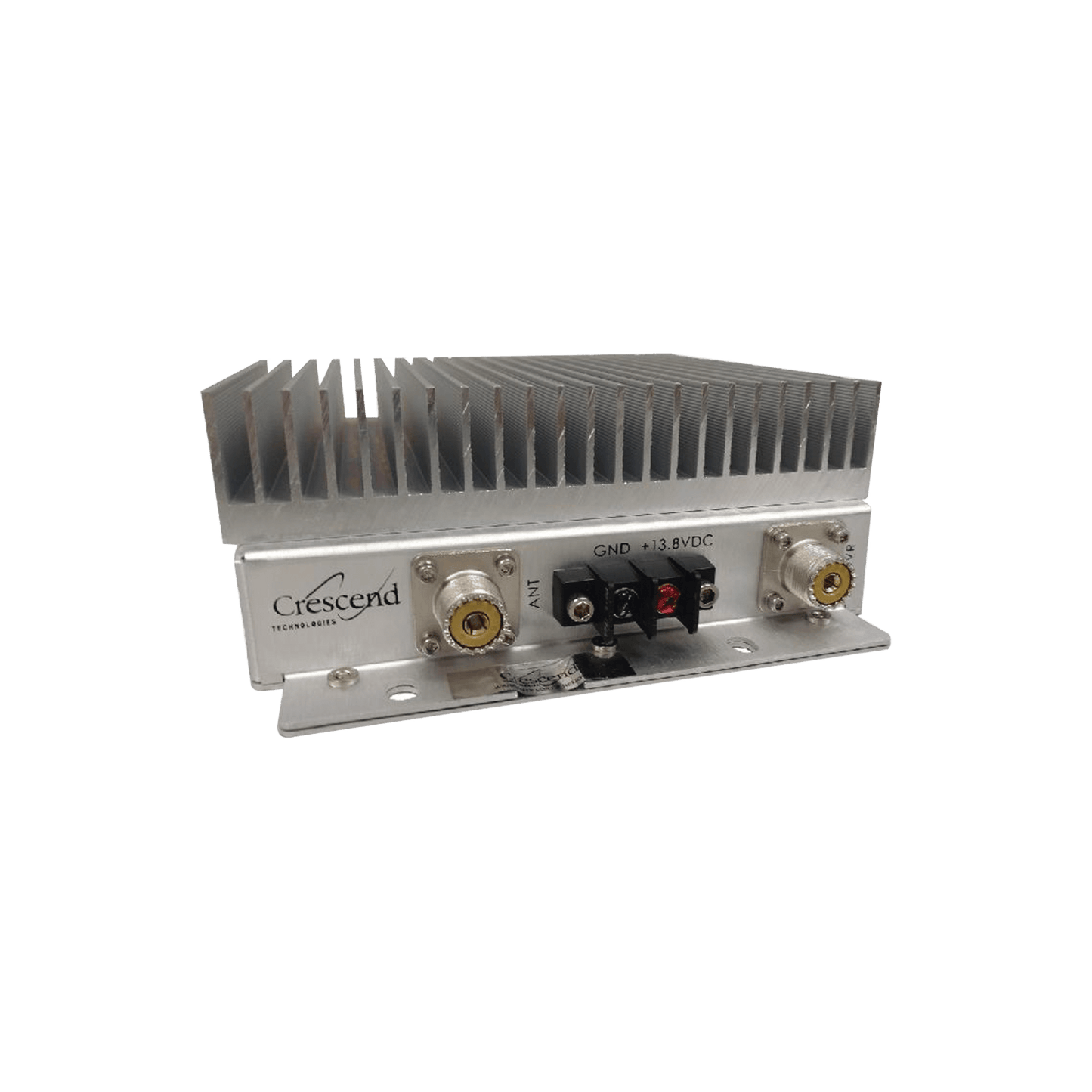

Vehicular Amplifier, 403-450 MHz, Input 1-5 Watt / Output 50 Watt, 11 Amp., UHF Females.

  • c8e8bd5137466d49b4a0f22c7bcbc58f
1 1

Out of stock

Modelo: DSDTUL-50-02

Proveedor: CRESCEND

Código SAT: 32101514

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Vehicular Amplifier 403-450 MHz, Ent. 1 -5 Watt / Sal. 50 Watt, 11A, UHF Hem.

  • Frequency range: 403-450 MHz.
  • Transmission current flow: 11 A (nominal at nominal power).
  • Input power: 1-5 Watt.
  • Carrier Output Power: 50 Watt nominal.
  • Spurious and Harmonic: Complies with FCC specifications.
  • Operating Voltage: 13.8 Vdc nominal.
  • Duty cycle: 30% (maximum PTT 3 minutes).
  • Load VSWR tolerance: VSWR protected.
  • Over temperature: Protected against over temperature (the unit goes to By-pass mode when activated).
  • T/R switching: PIN diode, 600 us nominal switching time.
  • Input/output impedance: 50 ohm nominal.
  • Operating temperature range: -30 ºC to +60 ºC.
  • Input/Output Connectors: UHF (SO-239) others optional.
  • Dimensions (mm): 172.72 Width x 69.58 Height x 195.58 Depth.
  • Weight: 0.908 kg.

*Ask for delivery time.
