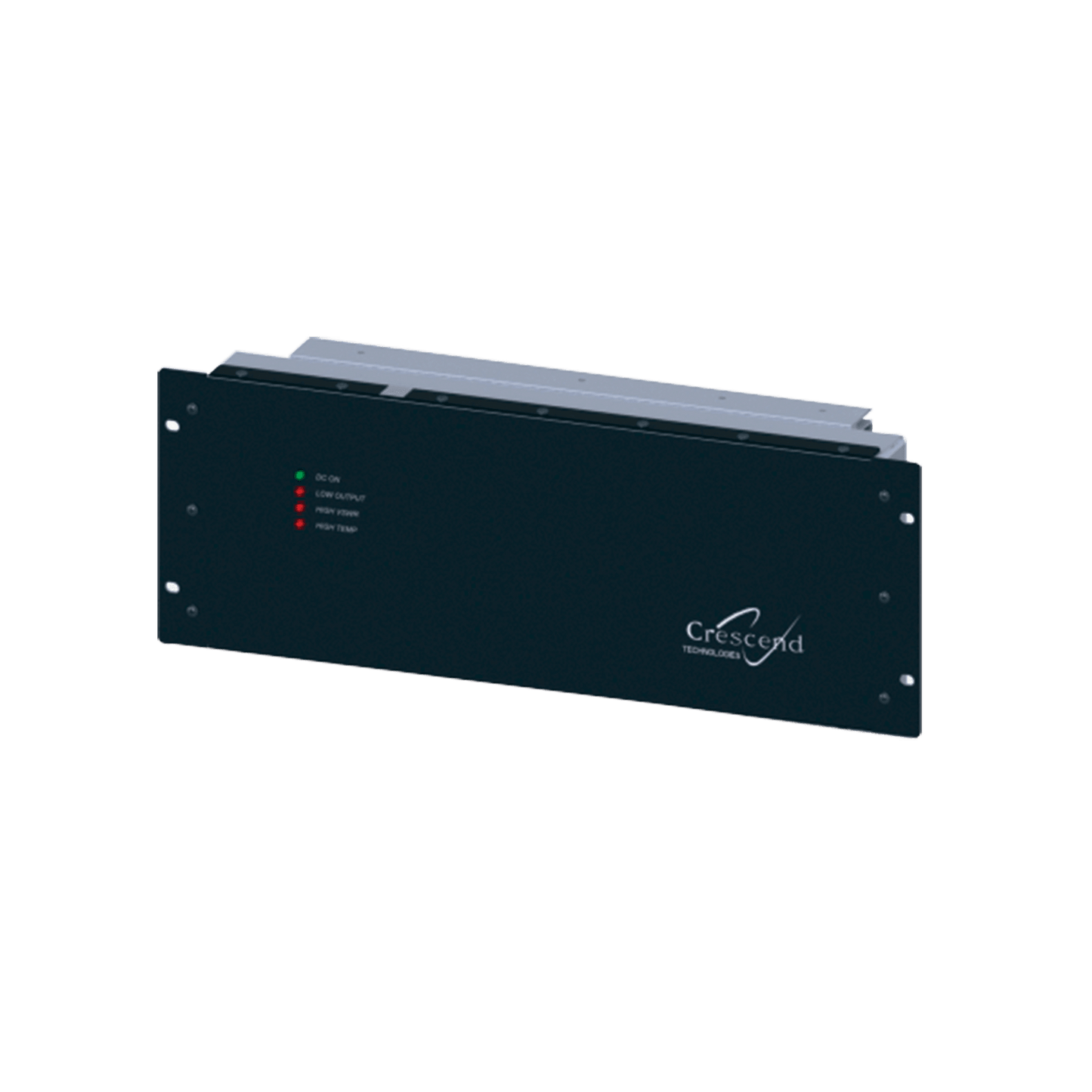

Continuous Cycle Amplifier, 450-512 MHz, 2-5W Input / 100W Output, 26A, 13.8 Vdc.

  • e485300329cb0c50479d40a2f63b3852
1 1

Out of stock

Modelo: P10-2UH1-C5-001

Proveedor: CRESCEND

Código SAT: 32101514

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Continuous Cycle Amplifier 450-512 MHz, 2-5W Input/100W Output: 26 A, 13.8 Vdc.

  • Frequency Range: 450-512 MHz (UH)
  • Operating Voltage: +13.8 VDC
  • Current Consumption: 26 Amperes (Max)
  • Duty Cycle: 100%
  • Input Power: 2-5 Watt.
  • Output Power: 100 Watt, factory set
  • Spurious and Harmonic: Meets FCC requirements
  • Input/Output Impedance: 50 ohm (Nominal)
  • VSWR Load Tolerance: VSWR Protection
  • LED Indicators : CD Power, Low Output, High VSWR, Temp.
  • Alarm: Terminal for Alarm Status
  • Input and Output Connectors: Type 'N' Females
  • Cooling Method: Forced air fan on the heatsink
  • Operating Temperature Range: -30º C to +60º C
  • Storage and Transport Temperature: -40º C to +70º C
  • Humidity: 80% at +40º C (non-condensing)
  • Altitude: 3000 meters maximum.
