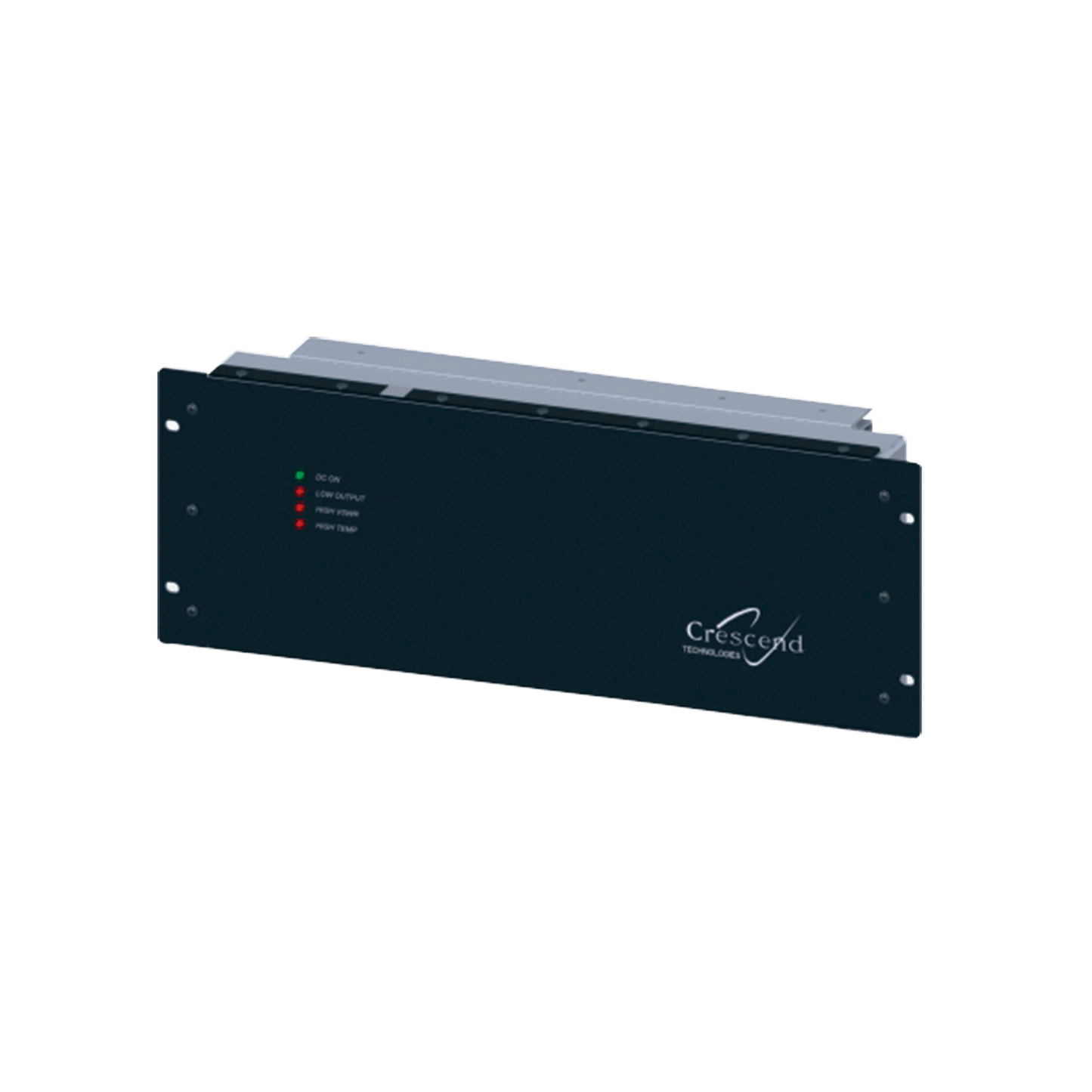

Continuous Cycle Amplifier, 403-450 MHz, 2-5W Input / 100W Output, 26A, 13.8 Vdc, N Females.

  • ecf2788b88391821d8d81d50616e31a8
1 1

Out of stock

Modelo: P10-2UL1-C5-001

Proveedor: CRESCEND

Código SAT: 32101514

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Continuous Cycle Amplifier 403-450 MHz, Input 2-5W / Output 100W, 26A, 13.8Vdc.

  • Frequency Range: 403-450 MHz (UL).
  • Operating Voltage: +13.8 VDC.
  • Current Consumption: 26 Amperes (Max).
  • Service Cycle: 100%.
  • Input Power: 2-5 Watt.
  • Output Power: 100 Watt, set at factory.
  • Spurious and Harmonic: Complies with FCC requirements.
  • Input/Output Impedance: 50 ohm (Nominal).
  • VSWR Load Tolerance: VSWR Protection.
  • LED Indicators : CD Power, Low Output, High VSWR and Temp.
  • Alarm: Terminal for Alarm Status.
  • Input and Output Connectors: Type N Females.
  • Cooling Method: Forced air fan on the heatsink.
  • Operating Temperature Range: -30º C to +60º C.
  • Storage and Transport Temperature: -40º C to +70º C.
  • Humidity: 80% at +40º C (non-condensing).
  • Altitude: 3000 meters maximum.
