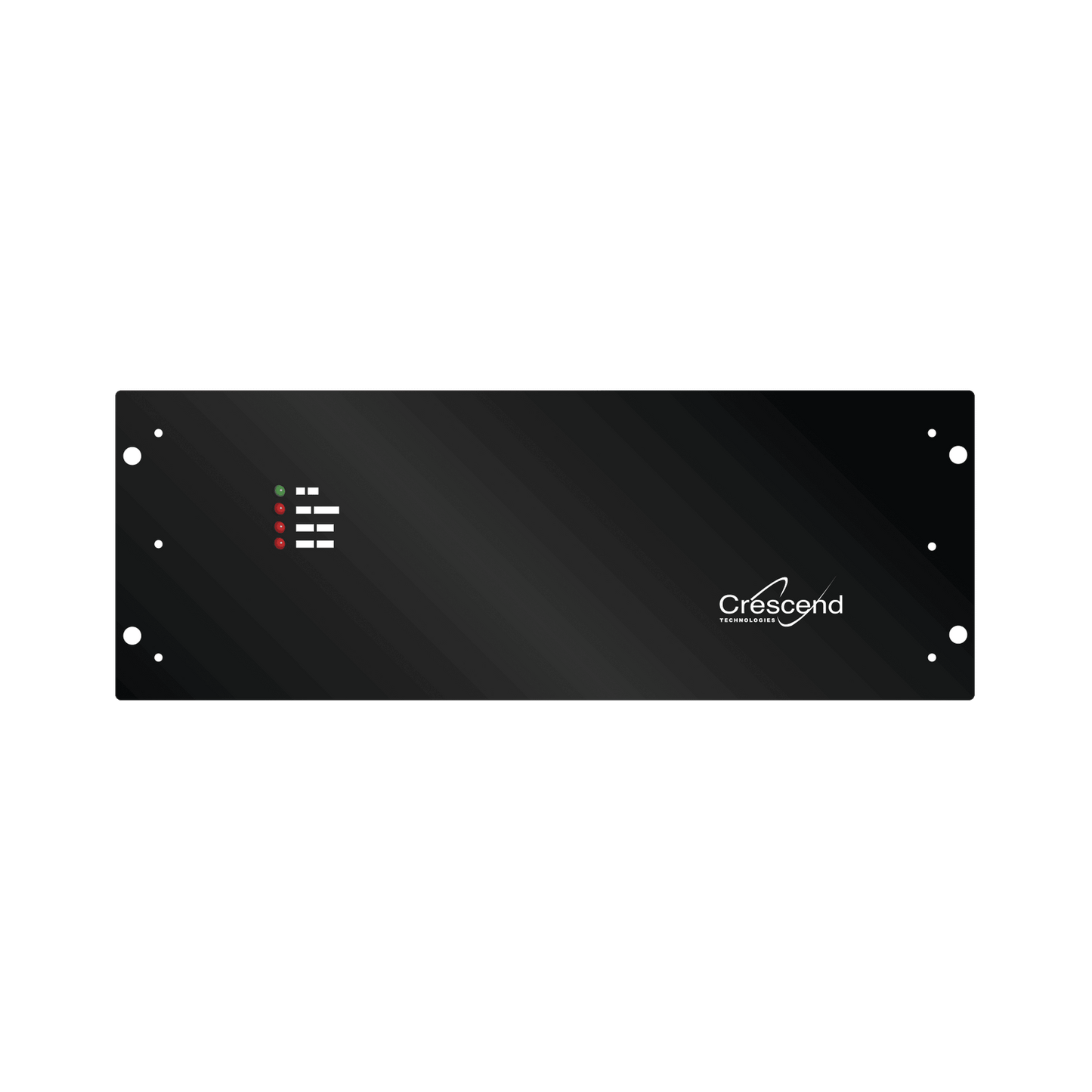

Amplifier 450-512 MHz, 2-5 W. Input/50 Watt Output, 13 Amp. 13.8 Vdc.

  • 07633678c4ef74f2479b869ae05613bb
1 1

Out of stock

Modelo: P5-2UH1-C5-001

Proveedor: CRESCEND

Código SAT: 32101514

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Amplifier 450-512 MHz, 2-5 W In./ 50 W Out. 13 Amp. 13.8 Vdc.

  • Frequency Range: 450-512 MHz (UH)
  • Current Consumption: 13 Amp.(Max)
  • Operating Voltage: +13.8 Vdc.
  • Duty Cycle: 100%
  • Input Power: 2 to 5 Watt.
  • Output Power: 50 Watt, set at factory.
  • Harmonics and Spurious: FCC Compliant.
  • Input/Output Impedance: 50 Ohm (Nominal)
  • VSWR Load Tolerance: Protected to VSWR.
  • LED indicator: CD On, Low Output , High VSWR, High Temp.
  • Alarm: Additional Alarm Terminal.
  • Input/Output Connector: Type N Female.
  • Cooling Method: Forced Air with Fan on the Heatsink.
  • Operating Temperature Range: -30º C to +60º C.
  • Storage and Transport: -40º C to +70º C
  • Humidity: 80% at +40º C (non-condensing).
  • Altitude: 3000 meters. maximum.
  • Dimensions (Height x Width x Depth): 178 x 483 x 153 mm.
  • Nominal Weight: 4.54 Kgs.

*Ask for Delivery Time.
